Bticino F429G Quick Start Manual

Bticino F429G Quick Start Manual

Advertisement

Quick Links

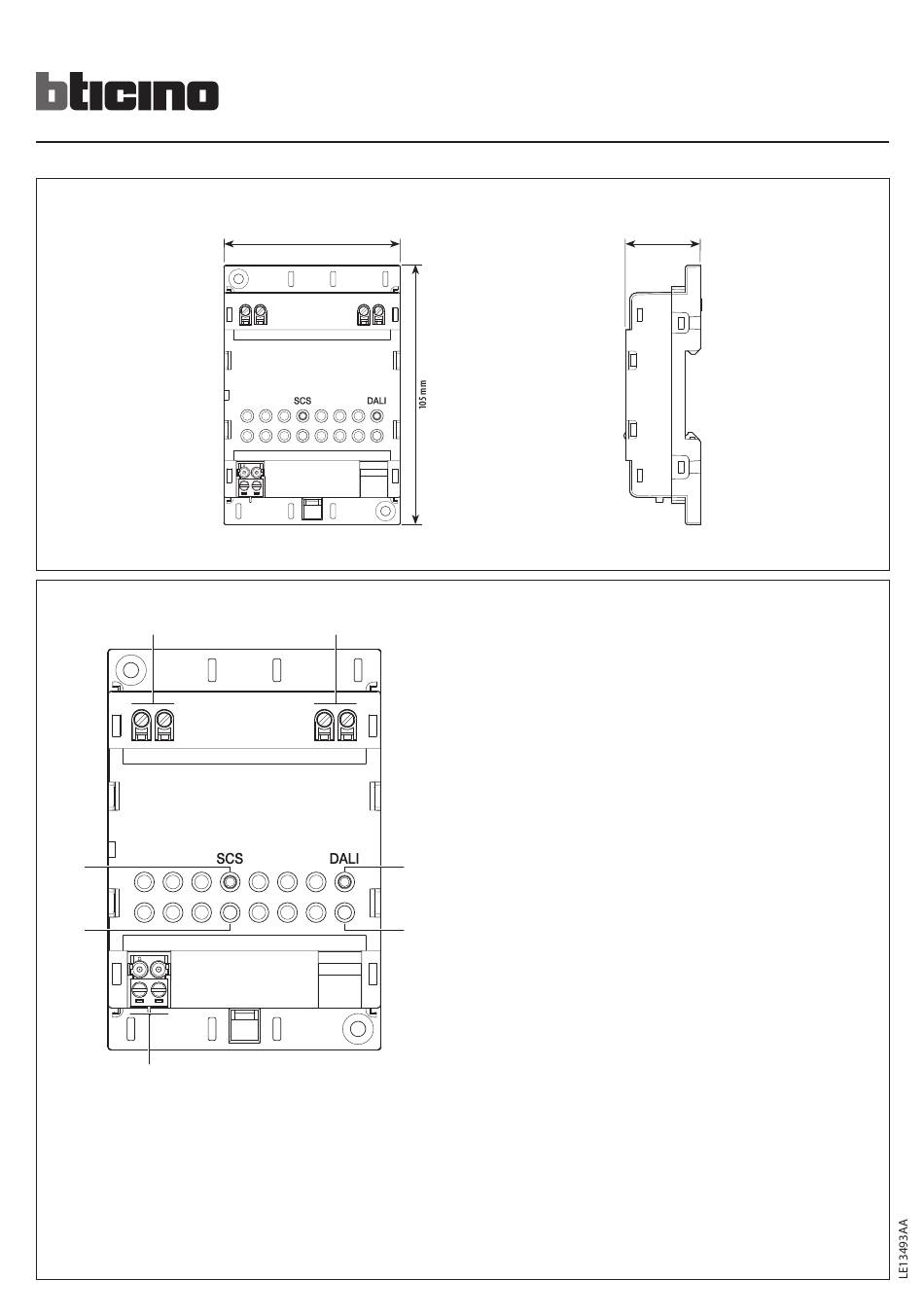

• Dati dimensionali
• Dimensional data
• Descrizione
• Description
1
7
6
5

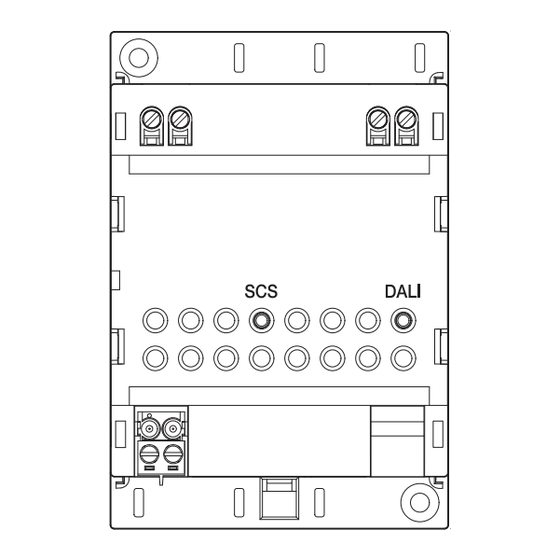

1. 230 Vac connection clamps
2. DALI connection clamps
3. ON/OFF pushbutton, DALI loads
4. DALI output notification LED
Green LED steady = normal status
Red LED steady = at least one reactor on the DALI output is ON
LED off = all the reactors are OFF
Red LED flashing = addressing and acquisition of DALI reactors running
5. BUS SCS connection clamps
6. BUS SCS output notification LED
Green LED steady = power supply present
Red LED flashing quickly = no configuration
Red LED flashing intermittently = configuration being completed
7. SCS configuration pushbutton
BTicino SpA – Viale Borri, 231 – 21100 Varese – Italy – www.bticino.com
For UK only: Legrand Electric Ltd Great King Street North Birmingham B19 2LF
• Données dimensionnelles
• Maße
72 mm
• Description
• Beschreibung
2
3
4
• Datos dimensionales
• Descripción
1. Morsetti di collegamento 230 Vac
2. Morsetti di collegamento DALI
3. Pulsante ON/OFF carichi DALI
4. Led di segnalazione uscita DALI
Led verde fisso = stato normale
Led rosso fisso = almeno un reattore sull'uscita DALI è in stato ON
Led spento = tutti i reattori in stato OFF
Led rosso lampeggiante = indirizzamento e acquisizione dei reattori DALI in corso
5. Morsetti di collegamento BUS SCS
6. Led di segnalazione uscita BUS SCS
Led verde fisso = alimentazione presente
Led rosso lampeggiante rapido = nessuna configurazione
Led rosso lampeggiante intermittente = configurazione in corso
7. Pulsante per configurazione SCS
1. Bornes de branchement 230 Vac
2. Bornes de branchement DALI
3. Bouton ON/OFF charges DALI
4. Voyant d'indication sortie DALI
Voyant vert fixe = état normal
Voyant rouge fixe = au moins un réacteur sur la sortie DALI est en ON
Voyant éteint = tous les réacteurs en OFF
Voyant rouge clignotant = adressage et acquisition des réacteurs DALI en cours
5. Bornes de branchement BUS SCS
6. Voyant d'indication sortie BUS SCS
Voyant vert fixe = alimentation présente
Voyant rouge clignotant rapide : aucune configuration
Voyant rouge clignotant intermittent = configuration en cours
7. Bouton pour configuration SCS
• Formaatgegevens
• Dimensões
31,2 mm
• Beschrijving
• Descrição
F429G
11/22-01 PC

Advertisement

loading
Need help?

Need help?

Do you have a question about the F429G and is the answer not in the manual?

Questions and answers

Summary of Contents for Bticino F429G

  • Page 1 Voyant rouge clignotant intermittent = configuration en cours 7. SCS configuration pushbutton 7. Bouton pour configuration SCS BTicino SpA – Viale Borri, 231 – 21100 Varese – Italy – www.bticino.com 11/22-01 PC For UK only: Legrand Electric Ltd Great King Street North Birmingham B19 2LF...
  • Page 2 1. Anschlussklemmen 230 Vac 1. Aansluitklemmen 230 Vac 2. DALI-Anschlussklemme 2. Aansluitklemmen voor DALI-verbinding 3. ON/OFF-Taste für DALI-Stromlasten 3. ON/OFF-knop DALI-ladingen 4. Meldeleuchte DALI-Ausgang 4. Signaalled DALI-uitgang Grüne LED fest leuchtend = normaler Zustand Groene led aan = normale staat Rote LED fest leuchtend = mindestens ein Vorschaltgerät am DALI-Ausgang ist im Rode led aan = minstens één reactor op de DALI-uitgang heeft de staat ON EIN-Zustand...
  • Page 3 • Schemi elettrici • Electric diagrams • Schémas électriques • Schaltpläne • Esquemas eléctricos • Elektrische schema’s • Esquemas elétricos 230 Vac 230 Vca Dispositivo DALI - max 64 dispositivi DALI device - max 64 devices Dispositif DALI - 64 dispositifs max. Vorrichtung DALI - max 64 vorrichtungen Dispositivo DALI - max 64 dispositivos Inrichting DALI - max 64 inrichtingen...
  • Page 4 Avvertenze e diritti del consumatore Warnings and consumer rights Leggere attentamente prima dell’uso e conservare per un riferimento futuro. Read carefully before use and keep for future reference. Divieto di toccare le unità con le mani bagnate. Touching the units with wet hands is forbidden. Divieto di utilizzo di pulitori liquidi o aerosol.
