Manufactured for Rooms To Go
NO.
Description
Backrest
A
(LSF, RSF)
B
LSF Wing
C
RSF Wing
D
E
Console backrest
Triangle nut
F
(for console)
ASSEMBLY INSTRUCTION

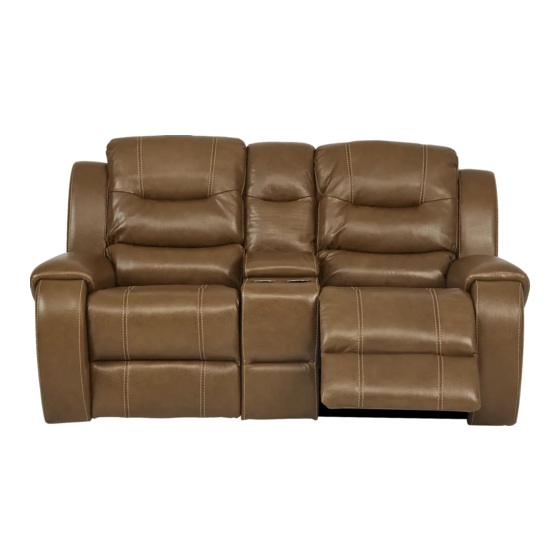

RECLINING CONSOLE LOVESEAT
HLVN 56135H / 56135B
LIST OF PARTS
Seat
HLVN
56135H-40
56135B-40
Item
SKU:
15256236
15256248
Quantity
2
1
1
1
1
2
Advertisement
Table of Contents
Related Manuals for ROOMS TO GO HLVN 56135H-40
Summary of Contents for ROOMS TO GO HLVN 56135H-40
- Page 1 ASSEMBLY INSTRUCTION RECLINING CONSOLE LOVESEAT HLVN 56135H / 56135B Manufactured for Rooms To Go HLVN SKU: 56135H-40 15256236 56135B-40 15256248 LIST OF PARTS Description Item Quantity Backrest (LSF, RSF) LSF Wing RSF Wing Seat Console backrest Triangle nut (for console)
- Page 2 ASSEMBLY INSTRUCTIONS Step 1: Take out carefully the back cushions from the packing and console's backrest from inner console frame with its triangle nuts. Step 2: Positing the female metal receiver brackets over the male metal posts. Push down the female brackets over male posts simultaneously until each side is locked into place an audile "click"...
- Page 3 * Do not sit on arms or backrest. * Do not jump or roughhouse on furniture. * If unit must be moved, do not drag. Unit must be lifted in order to be moved. CARE AND CLEANING * Upholstered furniture is packaged tightly to protect it during transsit. This packaging can sometimes cause creases or misshaped cushions when the furniture comes out of the packaging.
