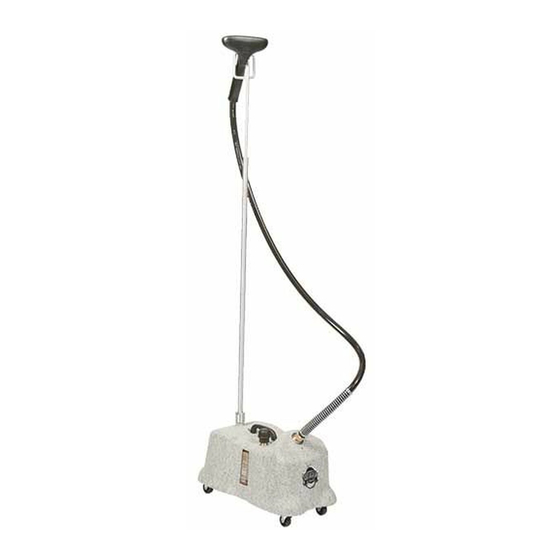

Jiffy J-4000 Wiring Instructions

Jiffy Steamer
®
Model J-4000
Wiring
Instructions
Engineered to last.

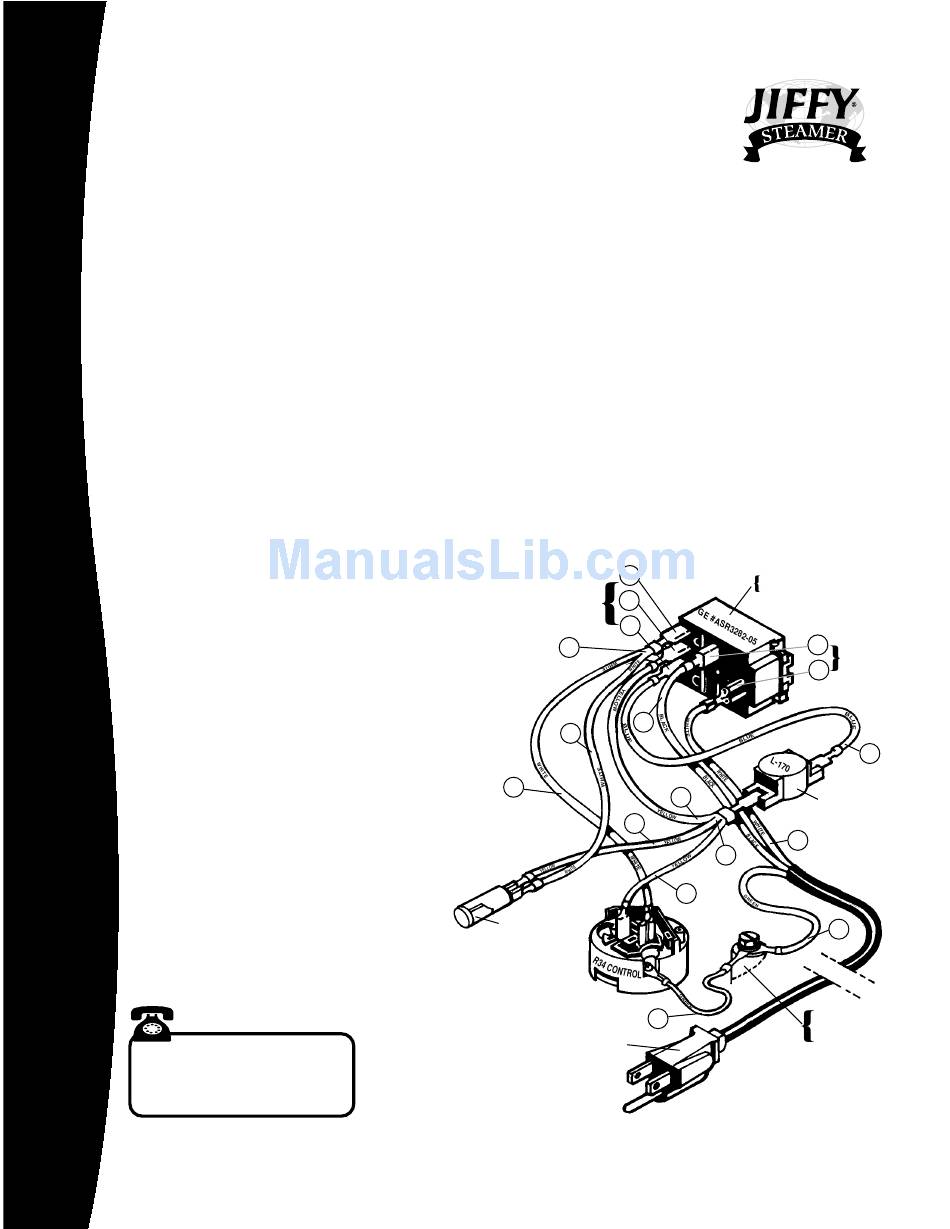

Wiring Instructions
I
nsure that the power cord is unplugged from the electrical outlet before removing the bottom plate or
attempting to repair your Jiffy
Letters are marked on the actual switch.
1) Neutral wire #1 (white wire from the cord set bundle) attaches to "A" marked on the GE #ASR3282-05 rotary
power switch.
2) Positive wire #2 (black wire from cord set bundle) attaches to "B" marked on the GE #ASR3282-05 rotary
power switch.
3) Ground wire #3 (green wire from cord set bundle) attaches to the aluminum steamer housing.
4) Ground wire #4 (green wire from electrical control) attaches to the aluminum steamer housing.
5) The double white wire #5 connects from Switch Terminal Number 4,
as follows:
• The 5A leg of the double white wire #5 connects
to the terminal pin on the right side of the
R34 electrical control, which is the one nearest
to the ground wire.
• The 5B leg of the double white wire #5 connects
to either side of the red pilot light.
6) Blue wire #6 connects Switch Terminal Number 1
to the top side of the L-170 PREHEAT thermostat.
7) Triple yellow wire #7 connects from the bottom
side of the L-170 PREHEAT thermostat,
as follows:
• The 7A leg of the triple yellow wire #7
goes to Switch Terminal Number 2.
• The 7B leg of the triple yellow wire #7
goes to the red pilot light.
• The 7C leg of the triple yellow wire #7
goes to the left side of the R34
electrical control.
Comments? Questions?
Jiffy ® Steamer Company Hotline
1-800-J2-Jiffy
(1-800-525-4339
)
Jiffy Steamer Company, LLC
4462 Ken-Tenn Highway (38261)
Phone: 1-731-885-6690 Fax: 1-731-885-6692
®
Worldwide Leader in Steaming Equipment Since 1940
®
Steamer. Please note, the Switch Terminal Numbers and the Switch Terminal
5
A
Red Pilot Light
Post Office Box 869 Union City, Tennessee 38281-0869
Web: www.jiffysteamer.com
4
Switch
Terminal 2
Numbers
1
5
2
5
B
7
A
7
B
7
C
4
Power Cord Plug
E-mail: jsinfo@jiffysteamer.com
Three Position
Rotary Power Switch
Switch
B
Terminal
A
Letters
6
Thermostat
1
7
3
Aluminum
Steamer
Housing
United States of America
