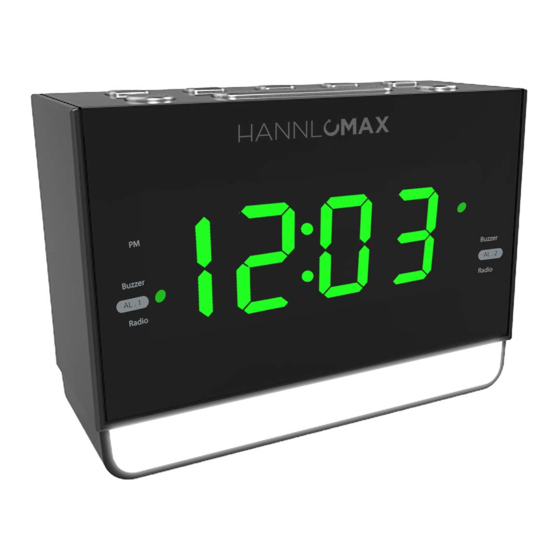

Hannlomax HX-128CR Quick Start Manual

ALARM CLOCK RADIO WITH USB CHARGING
Model : HX-128CR
Note: Please read and follow these instructions before using your unit.
WARNING
TO PREVENT ELECTRIC SHOCK; DO NOT USE THIS PLUG WITH AN EXTENSION CORD RECEPTACLE OR
OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADES EXPLOSURE.
TO PREVENT FIRE OR SHOCK HAZARD; DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
RISK OF ELECTRIC SHOCK
The lighting flash with
arrowhead symbol, with an
equilateral triangle is intended to
CAUTION: TO REDUCE THE
alert the user to the presence of
RISK OF ELECTRIC SHOCK, DO
un-insulated dangerous voltage
NOT
within the products enclosure
BACK).
that may be of sufficient
SERVICEABLE PARTS INSIDE
magnitude to constitute a risk of
REFER
electric shock to persons.
QUALIFIED
PERSONNEL.
1. Keep these instructions.
2. Heed all warnings.
3. Follow all instructions.
4. Do not use this apparatus near water.
5. Clean only with dry cloth.
6. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
8. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
9. Only use attachments/accessories specified by the manufacturer.
10. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.
2) Unplug the apparatus during lightning storms or when unused for long periods of time.
3) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been
dropped.
FCC NOTICE
This device compiles with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
CAUTION
DO NOT OPEN
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
REMOVE COVER (OR
important operating
NO USER
maintenance
instruction in the
SERVICING TO
accompanying the appliance.
SERVICE
-1-

QUICK REFERENCE

1. SOURCE / AL. OFF
Use this button to turn on the unit.
•
Use this button to turn the ALARM off after Alarm activates.
•
2. SNOOZE /SLEEP/DIMMER
Use this button to temporarily suspend the ALARM for a short period.
•
Use this button to set the sleep time.
•
HOLD to select the LED display brightness
•
3. LIGHT
Use this button to select the brightness of NIGHT LIGHT
•
and
4. SKIP DOWN/ HOUR
(servicing)
literature
Use this button to adjust the hour in CLOCK or ALARM time
•
Use this button to search the radio station in backward direction.
•
5. SKIP UP/ MIN
Use this button to adjust the minute in CLOCK or ALARM time
•
Use this button to search the radio station in forward direction.
•
6. CLK / MEM
Use this button to set the clock
•
Use this button to store radio stations in the memory.
•
Use this button to select the stored radio stations in the memory.
•
7. AL1 / VOLUME-
Use this button to set the alarm time in ALARM 1
•
Use this button to decrease the volume.
•
8. AL2 / VOLUME+
Use this button to set the alarm time in ALARM 2
•
Use this button to increase the volume.
•
9. PM INDICATOR ( FOR 12 HOURS SETIING VERSION ONLY)
10. ALARM 1 BUZZER INDICATOR(This indicator shows that the unit is in ALARM 1 buzzer mode.)
11. ALARM 1 RADIO INDICATOR(This indicator shows that the unit is in ALARM 1 radio mode.)
12. ALARM 2 BUZZER INDICATOR(This indicator shows that the unit is in ALARM 2 buzzer mode.)
13. ALARM 2 RADIO INDICATOR (This indicator shows that the unit is in ALARM 2 radio mode.)
14. LED DISPLAY
15. BATTERY COMPARTMENT (Compartment for the back-up battery.)
16. SPEAKER
17. DC Adaptor (DC cable also acts as FM antenna)
18. USB SLOT FOR 1A CHARGING (Connect a USB cable to charge your device.)
-2-
