Led Indications - Nice EPad Manual

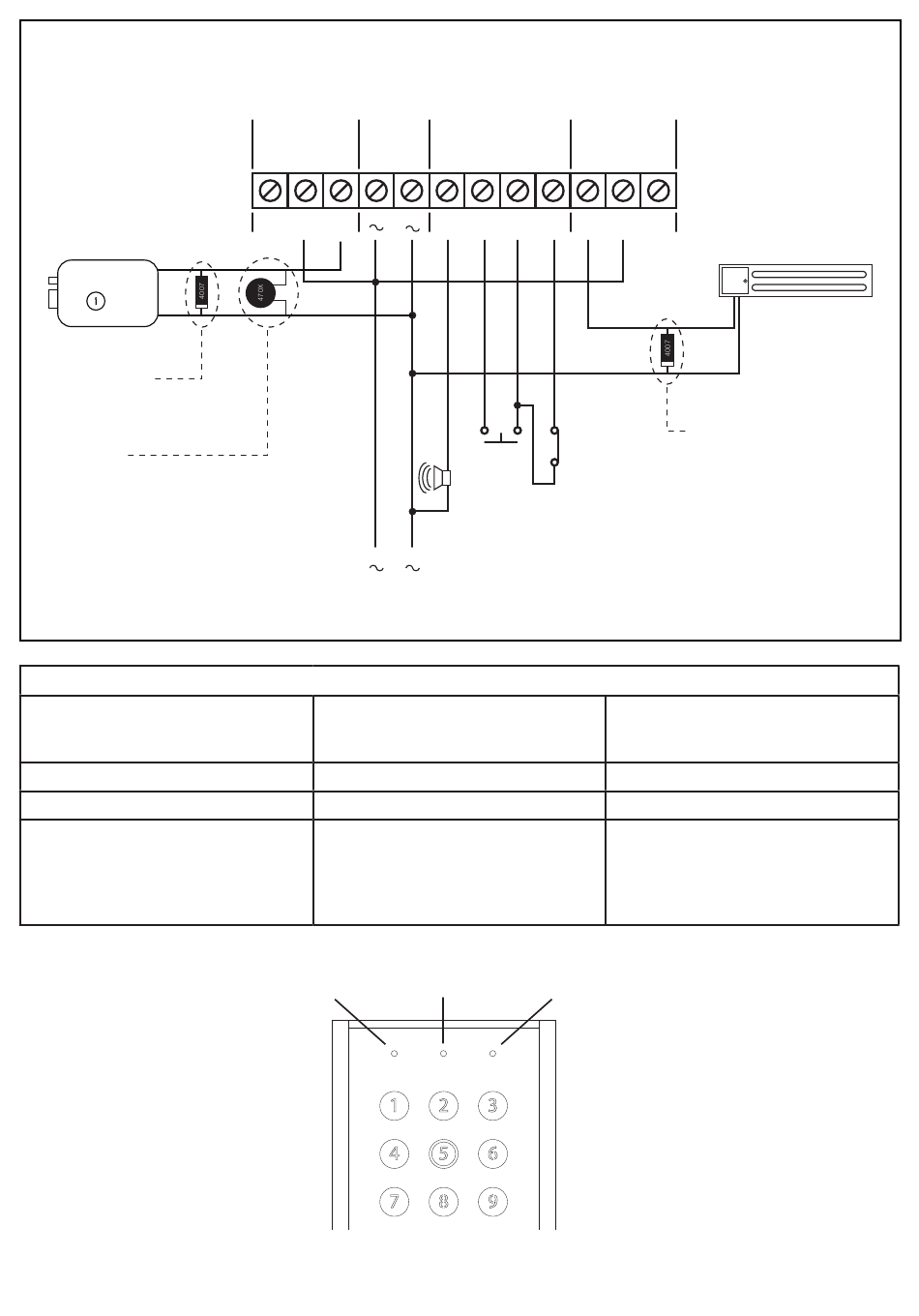

Wiring:
Strike-lock example
Use the INI4007
diode when
power is DC.
Use the 47pf
capacitor when
power is AC.

LED Indications:

Power LED
Red = Normal operating mode
Yellow = Programming mode active
Relay 1 Operating
Lock Output power
input
NC COM NO 0v +12-24v
0v +v
(Lock output)
On = relay active
Off = relay inactive
Flashing = Alarm activated since last
valid user entered/exited.
Enter any valid user code twice to clear
alarm memory.
Power LED Green LED
Nice
Alarm output, Free exit
push button and Door
monitoring input
ALM FRX 0v Door NC
PB
NC
Green LED
Relay 1
Amber LED
Page 3
Relay 2
Aux Output
COM NO
Mag-lock example
Use the INI4007 diode,
as power can only be DC.
Amber LED
Relay 2
(Auxiliary output)
On = relay active
Off = relay inactive
