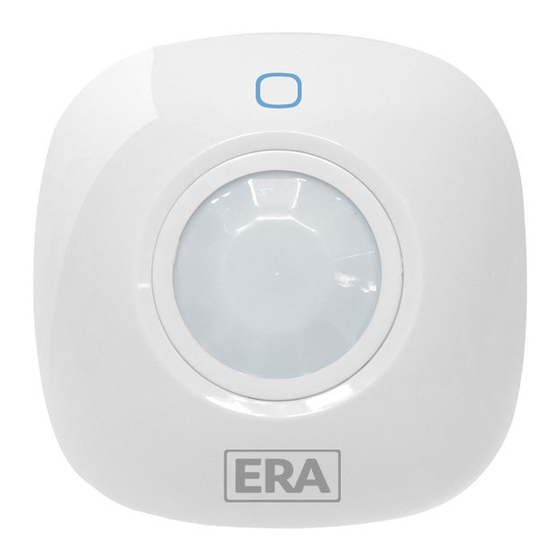

Ceiling-Mounted PIR
Motion Sensor
P700
Instruction Manual
Introduction
The Sensor works based on detecting human body's infrared
spectrum. When human moves within the scope, the Sensor
receives the signal and inputs it into microprocessor after
magnification. Microprocessor continues to sample infrared
signal and send wireless signal to wireless control panel after
calculating, thus to form a security system. The product can be
applied in banks, warehouses and homes etc.
Features
Accurate Detection
360 detection, no dead angle
Automatic temperature compensation and anti-air turbulence
technology
False Alarm Prevention
Digital dual-core fuzzy logic infrared control processing
technology
Effectively identify interference signals from body movement
signals through intelligent analysis
Space-saving
Ceiling-mounted, not much space occupation
Integrated to home decoration, suitable for luxury premises
Energy-saving
Featured energy-saving mode enables 1 year standby

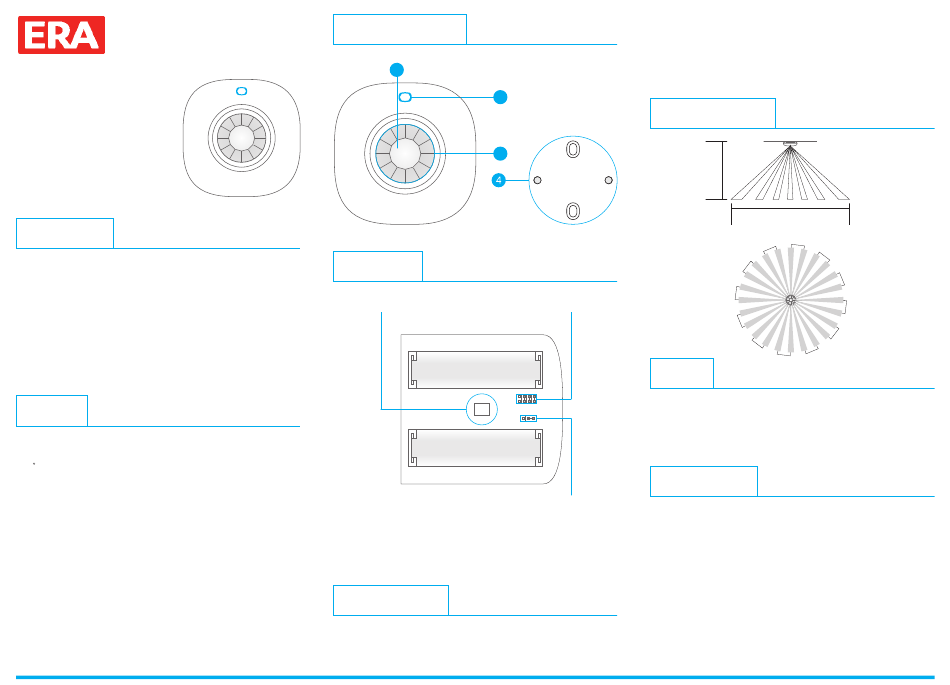

Product Overview
3
1
2
PCB Layout
Infrared Sensor
AA LR6 1.5V
AA LR6 1.5V
Infrared Sensor:
Detecting human body's infrared spectrum.
Don't touch the surface by hand and keep it clean.
LED Indication
The LED indicator can be turned on or off by setting jumpers.
See "PCB Layout" above.
Flash continuously:
Flash once:
Flash twice:
Flash once every 3 seconds:
1. Test Button
change the batteries immediately.
2. Detection Lens
3. LED Indicator
Detection Range
4. Mounting Plate
Zone Setting
Usage
Remove the battery activation strip to activate batteries. It will
enter working state after one-minute's self-testing.
Mode Setting
LED ON/OFF
Testing mode:
mode and detects once every 10 seconds. After 3 minutes,
the LED flashes twice, the sensor enters the power saving
mode.
Power-Saving Mode:
triggered twice within 3 minutes, it will enter sleeping mode
to save power. After no movement within next 3 minutes, the
Sensor goes back to the working state.
Under self-testing state
Intruder is detected
Self-testing is finished, enters working mode
Undervoltage indication, please
Side View
3.6m
6m
Top View
360°
Press test button, the Sensor enters testing
In working state, if the Sensor is
