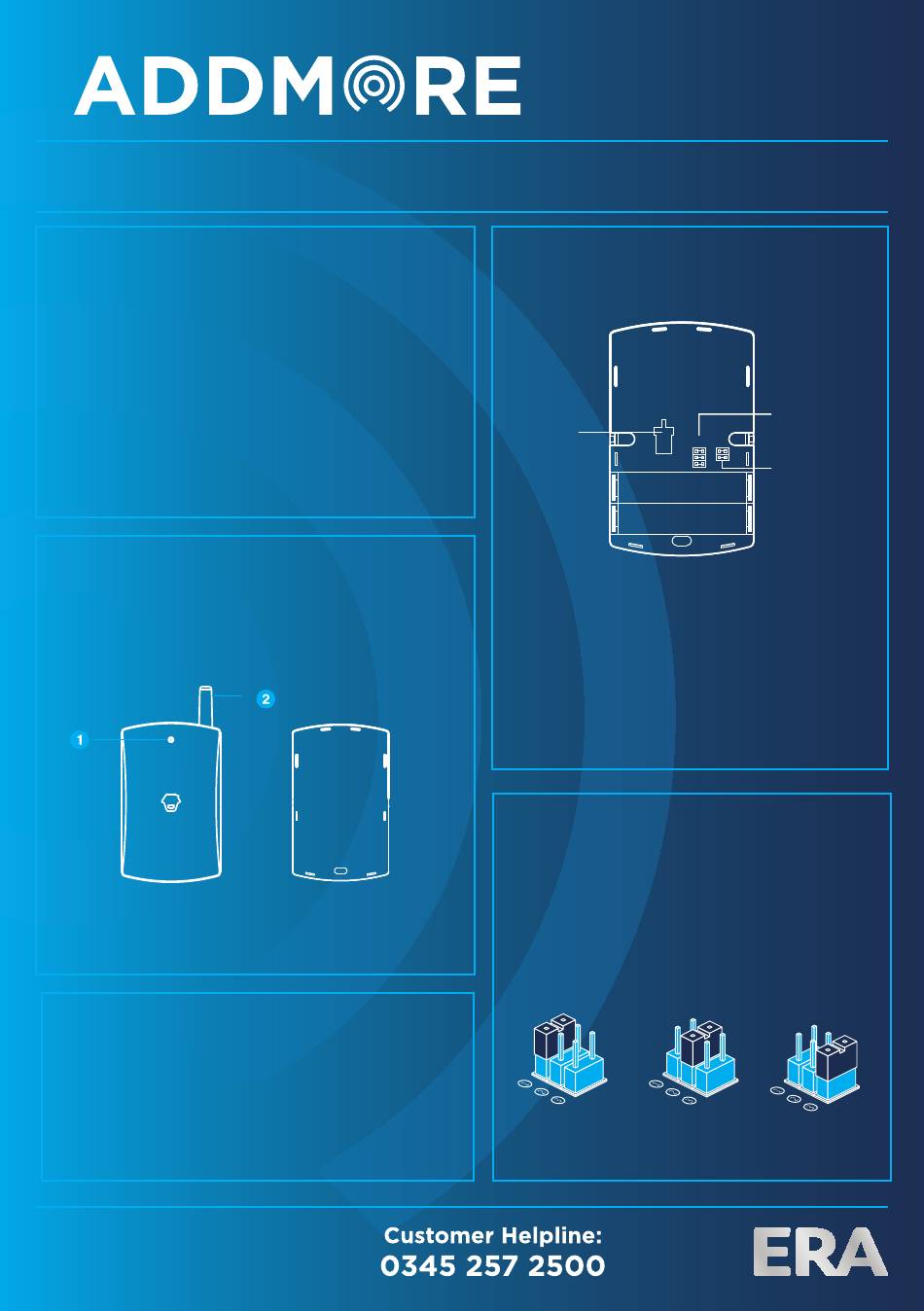

ERA Addmore WD80 Design And Installation Manual

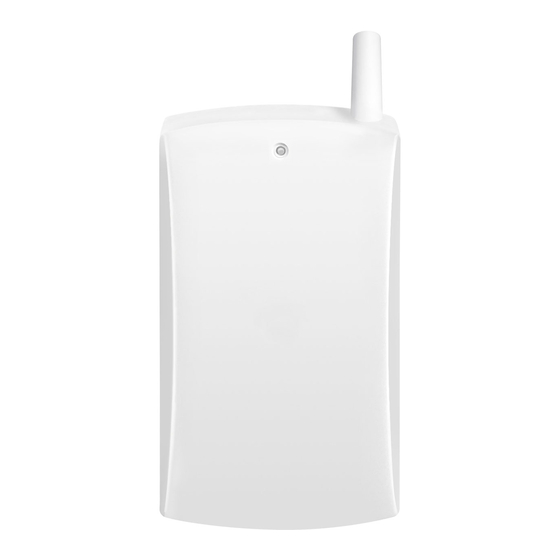

Wireless Vibration Sensor

1. INTRODUCTION

The Wireless Vibration Sensor adopts the theory of vibration,
touch and motion mode. Once it detects any vibration, it will
automatically send a wireless signal to the control panel to
activate the alarm. It's widely used for objects with a solid or
thick structure, like a safe. It's vibrating sensitivity can be
adjusted by three levels to prevent false alarms effectively.
Two AAA 1.5V LR03 batteries are included in the sensor,
which enables 12 months standby.
2. GET TO KNOW
YOUR PRODUCT
3. LED
INDICATION
Flash Once: Vibration is detected, sending wireless signal
Flash Once Every 2 Seconds: Low battery indication,
please change batteries.
ERA Home Security Ltd
Valiant Way, Wolverhampton,
West Midlands, WV9 5GB.
Email: support@erahomesecurity.com

4. PCB LAYOUT

5. SENSITIVITY
1. LED Indicator
Take off the back case with screwdriver, place the black
2. Antenna
jumper cap onto the jumper of required sensitivity level
INSTALLATION
MANUAL
T amper
Switch
AAA 1.5V LR03
AAA 1.5V LR03
Sensitivity Setting: High/Medium/Low Sensitivity
Mode Setting: Normal Zone or 24-Hour Zone
Tamper Switch: If the case is opened in working
state, the tamper switch will send a signal to
trigger the alarm system.
SETTINGS
High Sensitivity Medium Sensitivity
Model: WD80
Sensitivity
Setting
JP4
1 1
2 2
3 Mode Setting
Low Sensitivity
