ERA P700 Installation Manual

Ceiling Mounted PIR Motion Detector

1. INTRODUCTION

The Sensor works by detecting the human body's infrared
spectrum. When human movement takes place within the scope,
the detector receives the signal and inputs it into the
microprocessor after magnification. Microprocessor continues to
sample infrared signal and sends wireless signal to the control
panel after calculating. The products can be applied in banks,
warehouses and homes etc.

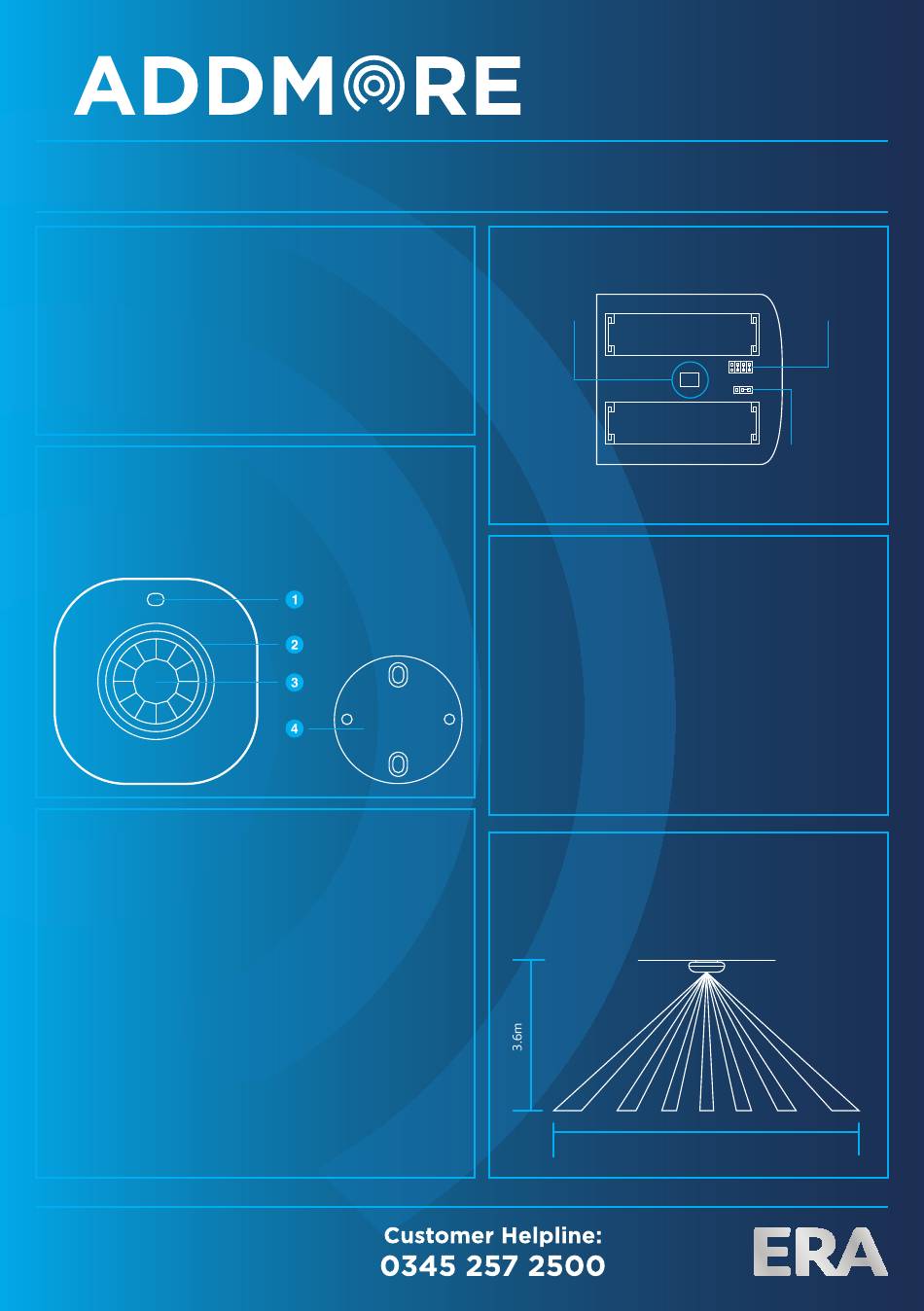

2. GET TO KNOW
YOUR PRODUCT

3. FEATURES

Accurate Detection
360 detection, no dead angle. Automatic temperature
compensation and anti-air turbulance technology
False Alarm Prevention
Digital dual core fuzzy logic infrared control processing technology.
Effectively identify interferance signals from body movement
signals through intelligent analysis.
Space-saving
Ceiling mounted, not much space occupation.
Integrated to home decoration, suitable for most premises.
Energy-saving
Featured energy-saving mode enables 1 year standby.
ERA Home Security Ltd
Valiant Way, Wolverhampton,
West Midlands, WV9 5GB.
Email: support@erahomesecurity.com

4. PCB LAYOUT

Infrared Sensor
Infrared Sensor: Detecting Human Body's infrared spectrum.
DO NOT touch the surface by hand and keep it clean.
5. LED
1. Test Button
2. Detection Lens
INDICATION
3. LED Indicator
4. Mounting Plate
The LED indicator can be turned on or off by setting jumpers.
See 'PCB Layout' above.
Flash Continuously: Under self-testing state
Flash Once: Intruder is detected
Flash Twice: Testing mode is finished, enters power-saving
Flash Once Every 3 Seconds: Low battery indication,
please change batteries.
6. DETECTION
RANGE
INSTALLATION
MANUAL
AA LR6 1.5V
AA LR6 1.5V
LED ON/OFF
6m
Model: P700
Zone Setting
Side View
