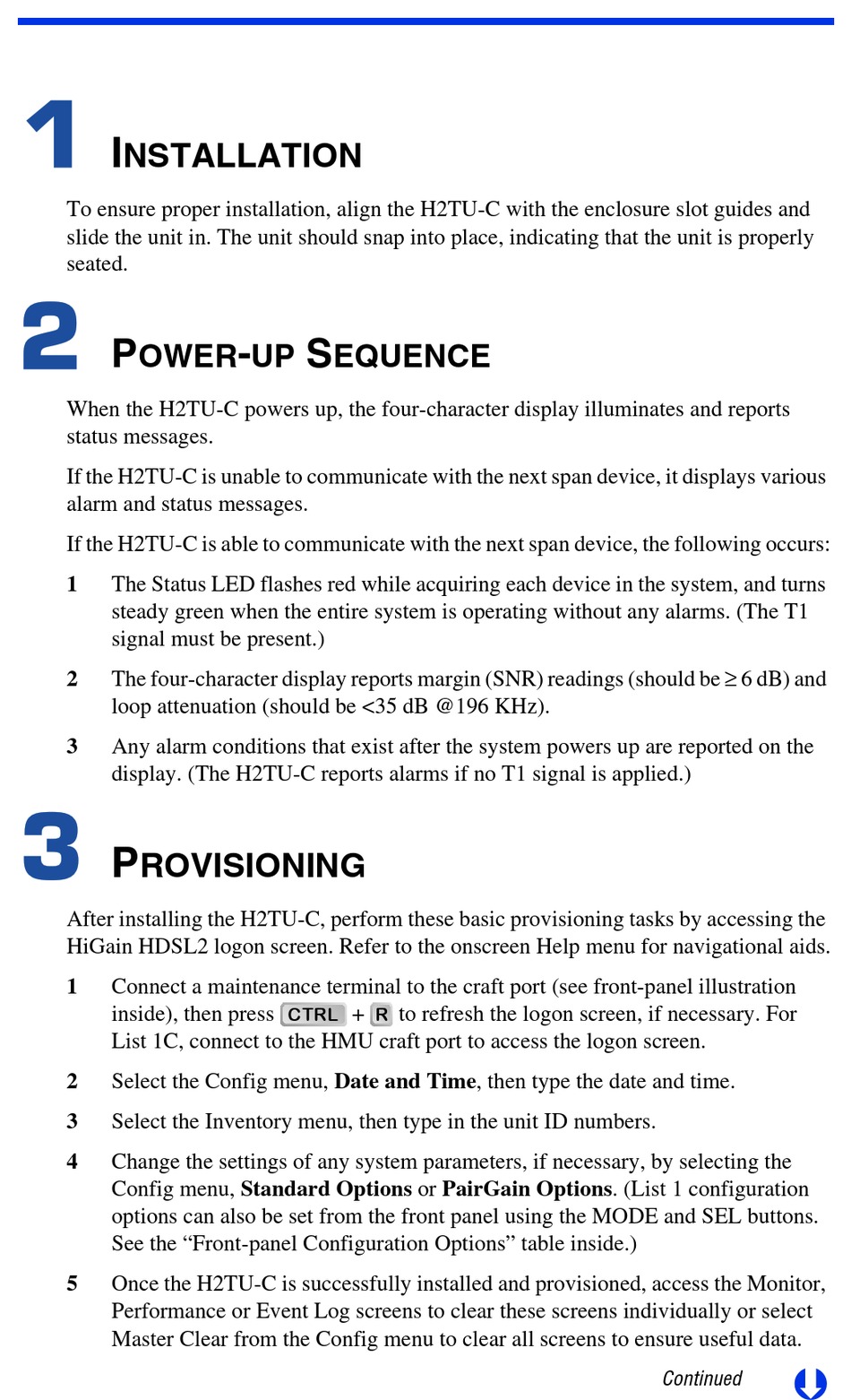

I
NSTALLATION
To ensure proper installation, align the H2TU-C with the enclosure slot guides and
slide the unit in. The unit should snap into place, indicating that the unit is properly
seated.
P
OWER
When the H2TU-C powers up, the four-character display illuminates and reports
status messages.
If the H2TU-C is unable to communicate with the next span device, it displays various
alarm and status messages.
If the H2TU-C is able to communicate with the next span device, the following occurs:
1 The Status LED flashes red while acquiring each device in the system, and turns
steady green when the entire system is operating without any alarms. (The T1
signal must be present.)
The four-character display reports margin (SNR) readings (should be ≥ 6 dB) and
2
loop attenuation (should be <35 dB @196 KHz).
3 Any alarm conditions that exist after the system powers up are reported on the
display. (The H2TU-C reports alarms if no T1 signal is applied.)
P
ROVISIONING
After installing the H2TU-C, perform these basic provisioning tasks by accessing the
HiGain HDSL2 logon screen. Refer to the onscreen Help menu for navigational aids.
1 Connect a maintenance terminal to the craft port (see front-panel illustration
inside), then press
List 1C, connect to the HMU craft port to access the logon screen.
2 Select the Config menu, Date and Time, then type the date and time.
3 Select the Inventory menu, then type in the unit ID numbers.
4 Change the settings of any system parameters, if necessary, by selecting the
Config menu, Standard Options or PairGain Options. (List 1 configuration
options can also be set from the front panel using the MODE and SEL buttons.
See the "Front-panel Configuration Options" table inside.)
5 Once the H2TU-C is successfully installed and provisioned, access the Monitor,
Performance or Event Log screens to clear these screens individually or select
Master Clear from the Config menu to clear all screens to ensure useful data.
- S
UP EQUENCE
CTRL R
+ to refresh the logon screen, if necessary. For
Þ
Continued
