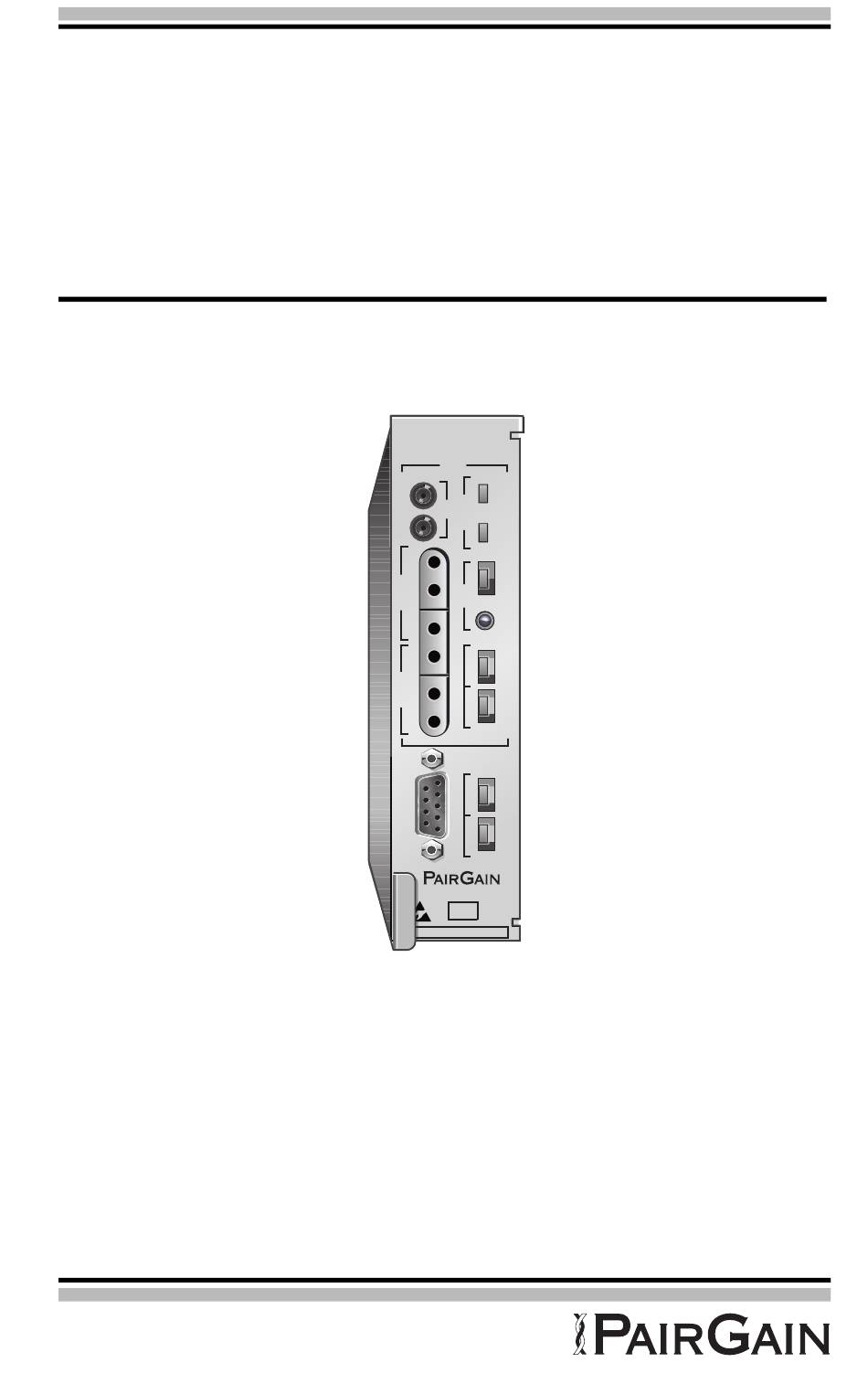

- Page 1 EMOTE Model List Part Number CLEI Code Number HRU-412 150-1103-06 T1LIEF04AA HRU 412 REM UNIT I AIN 60 mA HDSL TELEPHONE CO PROPERTY ECHNOLOGIES NGINEERING ERVICES ECHNICAL RACTICE ™150-412-106-06d¨ 150-412-106-06 ECTION...
- Page 2 ©Copyright 1998 PairGain Technologies, Inc. PairGain, and HiGain are registered trademarks of PairGain Technologies, Inc. Information contained in this document is company private to PairGain Technologies, Inc., and shall not be modified, used, copied, reproduced or disclosed in whole or in part without the written consent of PairGain.
- Page 3 150-412-106-06, Revision 06 Using This Technical Practice SING ECHNICAL RACTICE Two types of messages, identified by icons, may appear in the text. Notes contain information about special circumstances. Cautions indicate the possibility of equipment damage or the possibility of personal injury. BBREVIATIONS Alternate Mark Inversion Bit Error Rate...
- Page 4 Abbreviations 150-412-106-06, Revision 06 Receive Level RLEV Super Frame Signal-to-Noise Ratio Special Loopback SPLB Zero Byte Time Slot Interchange ZBTSI October 28, 1998 HRU-412 List 6...
-
Page 5: Table Of Contents
150-412-106-06, Revision 06 Table of Contents ABLE OF ONTENTS Overview _______________________________________________ 1 Applications ____________________________________________ 2 Functional Description____________________________________ 3 Operational Capabilities............3 Front Panel Features ..............4 Rear Panel Features..............7 Installation _____________________________________________ 9 Unpack and Inspect the Shipment..........9 Install the HRU-412 List 6............9 Installation Test.............. - Page 6 List of Figures 150-412-106-06, Revision 06 IST OF IGURES Figure 1. HRU-412 List 6 Front Panel ...........4 Figure 2. HRU-412 List 6 Rear Panel.............7 Figure 3. HRU-412 List 6 Pinouts ............10 Figure 4. HRU-412 List 6 Craft Port Wiring........12 Figure 5. Remote Log On Screen............14 Figure 6.
- Page 7 150-412-106-06, Revision 06 List of Tables IST OF ABLES Table 1. HDSL Loss Over Cables ............2 Table 2. HRU-412 List 6 Front Panel Components ......5 Table 3. Rear Panel Components ............8 Table 4. HRU-412 List 6 Alarm History Screen Definitions....23 HRU-412 List 6 October 28, 1998...
- Page 8 List of Tables 150-412-106-06, Revision 06 viii October 28, 1998 HRU-412 List 6...
-
Page 9: Overview
Overview VERVIEW ® ® The PairGain HiGain Remote Unit Model HRU-412 List 6 is the remote end of a repeaterless T1 transmission system. An HRU-412 List 6 connects to a HiGain Line Unit (HLU), creating a HiGain system which provides 1.544 Mbps transmission on two unconditioned copper pairs over the full Carrier Service Area (CSA) range. -
Page 10: Applications
Applications 150-412-106-06, Revision 06 PPLICATIONS A HiGain system, consisting of a HiGain line unit and a HiGain remote unit, provides a quick and cost-effective way of delivering T1 High Capacity Digital Service (HCDS) to customers over copper wire pairs. The HiGain system can be deployed on two unconditioned, non-loaded copper wire pairs without repeaters, and without the need for bridged tap removal or binder group separation. -
Page 11: Functional Description
This section describes the functions of the HRU-412 List 6. PERATIONAL APABILITIES HiGain utilizes PairGain’s 2B1Q HDSL transceiver system to establish two full-duplex 784 kbps data channels between the HLU and a remotely mounted HRU-412 List 6. This provides a total transmission capacity of 1.568 Mbps between the two units. -
Page 12: Front Panel Features
Functional Description 150-412-106-06, Revision 06 RONT ANEL EATURES Figure 1 shows the front view of the HRU-412 List 6. Table 2 describes the HRU-412 List 6 front panel components. Figure 1. HRU-412 List 6 Front Panel October 28, 1998 HRU-412 List 6... -
Page 13: Table 2. Hru-412 List 6 Front Panel Components
150-412-106-06, Revision 06 Functional Description Table 2. HRU-412 List 6 Front Panel Components Name Function Test points Allow measurement of the 60 mA CPE current. The current is related to the voltage measurement across the + and - test points by the following relationship: CPE CURRENT = 1 MA/1 MV. - Page 14 Functional Description 150-412-106-06, Revision 06 Table 2. HRU-412 List 6 Front Panel Components (Cont.) Name Function HDSL LEDs LP1 OK LED flashes green while HDSL Loop 1 is synchronizing with the HLU. The LED lights green to indicate that loop 1 is properly synchronized with the HLU.
-
Page 15: Rear Panel Features
150-412-106-06, Revision 06 Functional Description ANEL EATURES The HRU-412 List 6 rear panel features are shown in Figure Table 3 describes the features. I-CPE Manual Switches TLOS-LB RLBO Figure 2. HRU-412 List 6 Rear Panel HRU-412 List 6 October 28, 1998... -
Page 16: Table 3. Rear Panel Components
Functional Description 150-412-106-06, Revision 06 Table 3. Rear Panel Components Switch Setting Function I-CPE Sets the CPE current to 0 mA. Sets the CPE current to 60 mA to power an external NID. TLOS-LB DIS* A loss of the T1 XMT signal from the CPE causes the HLU to transmit the AIS signal toward the DSX-1 and does not cause the HRU to enter its logic loopback state. -
Page 17: Installation
If you must store the equipment for a prolonged period, store it in the original container. HRU-412 L NSTALL THE For indoor installation, the HRU-412 List 6 mounts in the following shelves: • PairGain’s HRE-421 (double-width, single-mount) • HRE-422 (single-wide, two-slot) • HRE-424 (double-wide, four-slot wall mount) •... -
Page 18: Figure 3. Hru-412 List 6 Pinouts
Installation 150-412-106-06, Revision 06 The HRU-412 List 6 pin-outs are shown in Figure 3. The active pins are shown in black. Figure 3. HRU-412 List 6 Pinouts To install the HRU-412 List 6: Ensure that the shelf is correctly mounted and wired (refer to the shelf’s technical practice for additional information). -
Page 19: Installation Test
150-412-106-06, Revision 06 Installation Place your thumbs on the HRU-412 List 6 front panel and push the HRU-412 List 6 into the card-edge connector until it is secured in the card guides. NSTALLATION Perform the following procedure to test the HRU-412 List 6. Press the loopback button (see Figure 1 for the location of this button) for... -
Page 20: Configure, Provision, And Monitor Performance
Configure, Provision, and Monitor Performance 150-412-106-06, Revision 06 ONFIGURE ROVISION ONITOR ERFORMANCE The following sections describe how to perform configuration, provisioning and performance monitoring functions using the HRU-412 List 6 menus and screens. ONNECT A ERMINAL Connect a dumb terminal: Connect a standard 9-pin serial terminal cable to the Craft port, a DB-9 female connector, on the HRU-412 List 6. -
Page 21: Logging On And Using The Menus
150-412-106-06, Revision 06 Configure, Provision, and Monitor Performance Connect the other end of the terminal cable to the console port on the dumb terminal. Configure the dumb terminal to the following communication settings: • 1200 to 9600 baud • no parity •... -
Page 22: Figure 5. Remote Log On Screen
Configure, Provision, and Monitor Performance 150-412-106-06, Revision 06 This section shows you how to log on and access the local menus and screens using the dumb terminal. Press the spacebar several times to activate the autobaud feature and to display the Main Menu (Figure When using doublers, the remote logon screen displays when the ... -
Page 23: Figure 6. Main Menu, Local Log On
150-412-106-06, Revision 06 Configure, Provision, and Monitor Performance Figure 6. Main Menu, Local Log On Access Main Menu options by typing the letter of the desired option. HRU-412 List 6 October 28, 1998... -
Page 24: View Span Status
Configure, Provision, and Monitor Performance 150-412-106-06, Revision 06 View Span Status From the Main Menu, type . The Span Status screen displays. When no doublers are in use, the following Span Status screen displays: Figure 7. Span Status Screen, No Doublers in Use Type to update the screen. -
Page 25: Set Clock
150-412-106-06, Revision 06 Configure, Provision, and Monitor Performance Figure 8. Span Status Screen, Doublers in Use Do any of the following: • Type to view the next span. • Type to update the screen. • Type to exit. Set Clock From the Main Menu, type to display the Set Clock menu. -
Page 26: Figure 9. Set Clock Screen
Configure, Provision, and Monitor Performance 150-412-106-06, Revision 06 SET CLOCK TIME: 12:03:33 DATE: 04/14/98 Format: HH:MM MM/DD/YY NEW TIME: 12:00 NEW DATE: 04/14/98 Figure 9. Set Clock Screen October 28, 1998 HRU-412 List 6... -
Page 27: System Settings
150-412-106-06, Revision 06 Configure, Provision, and Monitor Performance System Settings From the Main Menu, type to display the System Settings menu. Figure 10. System Settings Menu View HRU-412 List 8B system settings on this screen. Change system settings at the HLU connected to the HRU-412 List 6. HRU-412 List 6 October 28, 1998... -
Page 28: View Performance Data
Configure, Provision, and Monitor Performance 150-412-106-06, Revision 06 View Performance Data From the Main Menu, type to display the Performance Data screens. Figure 11. Performance Data Screen Do any of the following: • type to view a span • type to view the previous page of information •... -
Page 29: View Performance History
150-412-106-06, Revision 06 Configure, Provision, and Monitor Performance View Performance History From the Main Menu, type to display the Performance History screen. Figure 12. Performance History Screen Type to view the next span. Type to exit the Performance History screen. HRU-412 List 6 October 28, 1998... -
Page 30: View Alarm History
Configure, Provision, and Monitor Performance 150-412-106-06, Revision 06 View Alarm History From the Main Menu, type to display the Alarm History screen. Figure 13. Alarm History Screen Type to update the Alarm History screen to the most current data. Type to view the next span. -
Page 31: Table 4. Hru-412 List 6 Alarm History Screen Definitions
150-412-106-06, Revision 06 Configure, Provision, and Monitor Performance Table 4. HRU-412 List 6 Alarm History Screen Definitions Message Full Name Description NONE No Alarms No active alarms, or alarms previously detected are no longer active or have been reset. LLOS Local Loss of Signal No signal from local T1 interface. -
Page 32: Loopbacks
Loopbacks 150-412-106-06, Revision 06 OOPBACKS The HRU-412 List 6 supports 6 types of loopbacks (see Figure 14). • TLOS (transmit loss of signal) • CREM (customer remote loopback) • NREM (network remote loopback) • NLOC (network local loopback) • CLOC (customer local loopback) •... - Page 33 150-412-106-06, Revision 06 Loopbacks A Smart-Jack loopback causes the T1 interface chip to transmit the AIS pattern to the NI and back to the HRU-412 List 6 T1 receiver circuit. The T1 input to the HRU-412 List 6 at the XMT port is disconnected and terminated in 100 ohms.
-
Page 34: Specifications
Specifications 150-412-106-06, Revision 06 All HRU-412 List 6 loopbacks toward the network (NREM and SMJK) are metallic/logic (AIS/ENA) or metallic only (AIS/DIS). The TLOS loopback is a logic loopback. The SMJK and NREM loopbacks perform the same functions but their initiation differs. - Page 35 150-412-106-06, Revision 06 Specifications Power Consumption 6 Watts (typical), 8 Watts (maximum) Electrical Protection Secondary surge and power cross protection on all DS1 and HDSL ports Environmental Operating Temperature - 40° C to + 65° C Humidity 5 to 95% (non-condensing) Mounting Single-wide 400 Mechanics-type shelf One-way Delay...
-
Page 36: Product Support
UPPORT This section contains product support and warranty information. ECHNICAL UPPORT PairGain Technical Assistance is available 24 hours a day, 7 days a week by contacting PairGain Customer Service Engineering group at: (800) 638-0031 or (714) 832-9922 Telephone: (714) 832-9924... -
Page 37: Fcc Compliance
Do not try to repair the unit. If it fails, replace it with another unit and return the faulty unit to PairGain for repair. Any modifications of the unit by anyone other than an authorized PairGain representative voids the warranty. -
Page 38: Modifications
ODIFICATIONS The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by PairGain Technologies, Inc. may void the user's authority to operate the equipment. All wiring external to the products should follow the provisions of the current edition of the National Electrical Code. - Page 40 Corporate Office 14402 Franklin Avenue Tustin, CA 92780 Tel: (714) 832-9922 Fax: (714) 832-9924 For Technical Assistance: (800) 638-0031...
