ADC PG-PLUS PCS-718 Technical Practice

19" central office terminal shelf
Hide thumbs Also See for PG-PLUS PCS-718:
Table of Contents

Advertisement

Quick Links

Download this manual
Section
SCP-PCS718-020-04H
PG-P
T
P
ECHNICAL
19" C
ENTRAL
T
ERMINAL
Model
List
CLEI Code
PCS-718
2
S9MTBA0A~~
LUS
RACTICE
O
FFICE
S
HELF

Advertisement

Table of Contents
loading

Related Manuals for ADC PG-PLUS PCS-718

Summary of Contents for ADC PG-PLUS PCS-718

  • Page 1 PG-P ECHNICAL RACTICE 19" C ENTRAL FFICE ERMINAL HELF Model List CLEI Code PCS-718 S9MTBA0A~~ Section SCP-PCS718-020-04H...
  • Page 2 Information furnished by ADC is believed to be accurate and reliable. In no event shall ADC be liable for any damages resulting from the loss of data, loss of use, or loss of profits and ADC further disclaims any and all liability for indirect, incidental, special, consequential or other similar damages.
  • Page 3 SCP-PCS718-020-04H Using This Technical Practice SING ECHNICAL RACTICE Two types of messages, identified by icons, appear in the text: Notes contain information about special circumstances. Cautions indicate the possibility of equipment damage or the possibility of personal injury. PCS-718 List 2 January 6, 2003...
  • Page 4 Using This Technical Practice SCP-PCS718-020-04H January 6, 2003 PCS-718 List 2...

  • Page 5: Table Of Contents

    SCP-PCS718-020-04H ABLE OF ONTENTS PCS-718 Overview ____________________________________________________________________ 1 Description and Features........................1 Theory of Operation...........................2 Data Channel Overview.......................2 Serial Communications Bus ....................3 Composite Clock Signals.....................3 Test Bus.........................3 Communication Requests..................3 Backplane Connections .......................3 COLU HDSL......................5 Two-Wire Subscriber Pairs ...................5 Four-Wire Pairs .....................5 Alarm Cutoff........................17 Alarm Contacts ........................18 OS Interface ........................18...
  • Page 6 SCP-PCS718-020-04H Composite Clock Connections ..................34 HDSL Wiring ........................35 External ACO Connection ....................37 Turn-Up and Test ......................37 Product Support _____________________________________________________________________ 38 Technical Support..........................38 Limited Warranty ..........................38 Returns............................. 38 FCC Class A Compliance........................ 40 Modifications........................... 40 Acronyms ___________________________________________________________________________ 41 January 6, 2003 PCS-718 List 2...
  • Page 7 SCP-PCS718-020-04H IST OF IGURES 1. PG-Plus PCS-718 COT Shelf..........................1 2. Backplane Signal Configuration........................2 3. Communication Line Between PAU/PMU and COLU...................3 4. PCS-718 Shelf Backplane ..........................4 5. Alarm Relay Contacts from PAU to Wire-Wrap Field .................18 6. Redundant Shelf Power Wiring........................25 7.
  • Page 8 SCP-PCS718-020-04H January 6, 2003 FCS-718 List 2...
  • Page 9 SCP-PCS718-020-04H IST OF ABLES 1. PCS-718 Backplane Connectors........................4 2. PB1-PB12 Punch-down Blocks........................5 3. COLU #1 (J4) Connector Pinouts ........................6 4. COLU #2 (J5) Connector Pinouts ........................7 5. COLU #3 (J6) Connector Pinouts ........................8 6. COLU #4 (J7) Connector Pinouts ........................9 7.
  • Page 10 SCP-PCS718-020-04H January 6, 2003 PCS-718 List 2...

  • Page 11: Pcs-718 Overview

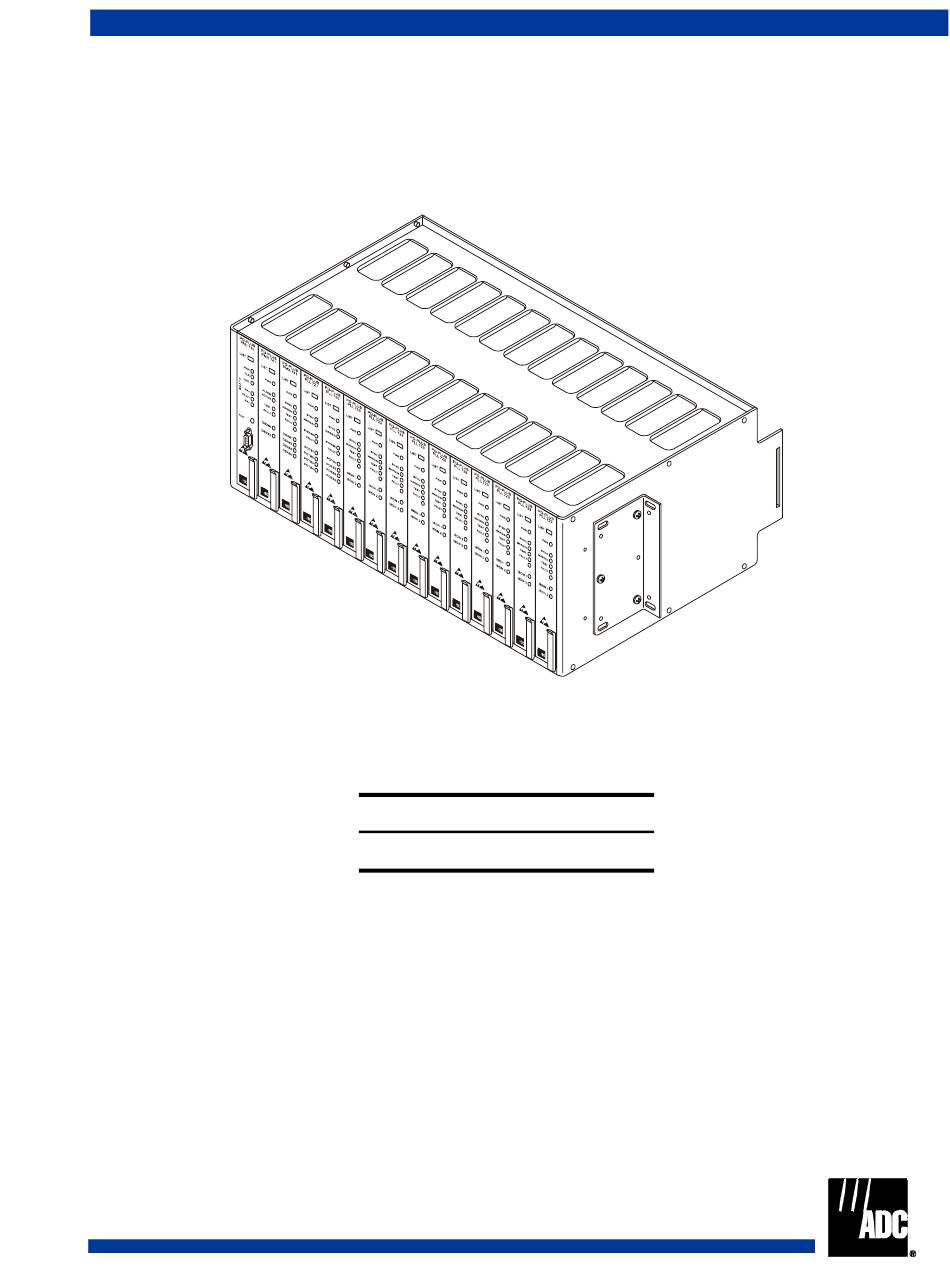

    • Two Multiplexer Units (PMX) • One PAU or one PG-Plus Management Unit (PMU) (interchangeable) Figure 1 PG-Plus PCS-718 COT Shelf The COTS features: • Wire-wrap connections for HDSL, Central Office (CO) lines, punch-down connections (Type 110), alarm cutoff, and alarm relays •...

  • Page 12: Theory Of Operation

    Theory of Operation SCP-PCS718-020-04H HEORY OF PERATION Data Channel Overview The COTS backplane uses redundant Pulse Code Modulation (PCM) transmit and receive buses and Serial Communications Buses (SCB) for data transfer and intra-shelf communications. Individual clock, data, and synchronization buses originate from the PMX cards and terminate at each COLU position. The shelf provides the signal connectivity and -48 V dc power distribution in the COTS.

  • Page 13: Serial Communications Bus

    SCP-PCS718-020-04H Theory of Operation Serial Communications Bus The Serial Communications Bus (SCB) provides the means for the PAU/PMU to communicate with all other boards in the shelf to allow: • Software downloads • Coordination of PMX equipment protection • Generation of status, alarm, and performance reports through the PG-Plus Console menus •...
  • Page 14 The following sections identify each backplane connector by type and function. Information in Tables 3 through 17 can be used for diagnostic and troubleshooting procedures under the direction of an authorized ADC technical support representative. Table 1. PCS-718 Backplane Connectors...

  • Page 15: Colu Hdsl

    SCP-PCS718-020-04H Theory of Operation OWER The COTS backplane has a seven-position power-terminal strip (TB1) that provides connections for dual -48 V dc, common battery return, and frame ground to each of the card slots by way of screw terminals. The shelf can be wired for redundant powering, split-powering, or single-source powering depending upon requirements.
  • Page 16 Theory of Operation SCP-PCS718-020-04H COLU Edge Card Connectors Tables 3 through 14 show the backplane connector pinouts for each COLU slot. Table 3. COLU #1 (J4) Connector Pinouts Pin # Assignment Assignment Pin # TIP1 RING1 TIP2 RING2 TIP3 RING3 TIP4 RING4 TIP5...
  • Page 17 SCP-PCS718-020-04H Theory of Operation Table 4. COLU #2 (J5) Connector Pinouts Pin # Assignment Assignment Pin # TIP7 RING7 TIP8 RING8 TIP9 RING9 TIP10 RING10 TIP11 RING11 TIP12 RING12 <BURN IN> – CC8KA CC64KA INTRPT2- SCB2 RDATA2 RDATB2 CLKA2 CLKB2 RSIGA2 RSIGB2 FSYNCA2...
  • Page 18 Theory of Operation SCP-PCS718-020-04H Table 5. COLU #3 (J6) Connector Pinouts Pin # Assignment Assignment Pin # TIP13 RING13 TIP14 RING14 TIP15 RING15 TIP16 RING16 TIP17 RING17 TIP18 RING18 <BURN IN> – CC8KA CC64KA INTRPT3- SCB3 RDATA3 RDATB3 CLKA3 CLKB3 RSIGA3 RSIGB3 FSYNCA3...
  • Page 19 SCP-PCS718-020-04H Theory of Operation Table 6. COLU #4 (J7) Connector Pinouts Pin # Assignment Assignment Pin # TIP19 RING19 TIP20 RING20 TIP21 RING21 TIP22 RING22 TIP23 RING23 TIP24 RING24 <BURN IN> – CC8KA CC64KA INTRPT4- SCB4 RDATA4 RDATB4 CLKA4 CLKB4 RSIGA4 RSIGB4 FSYNCA4...
  • Page 20 Theory of Operation SCP-PCS718-020-04H Table 7. COLU #5 (J8) Connector Pinouts Pin # Assignment Assignment Pin # TIP25 RING25 TIP26 RING26 TIP27 RING27 TIP28 RING28 TIP29 RING29 TIP30 RING30 <BURN IN> – CC8KA CC64KA INTRPT5- SCB5 RDATA5 RDATB5 CLKA5 CLKB5 RSIGA5 RSIGB5 FSYNCA5...
  • Page 21 SCP-PCS718-020-04H Theory of Operation Table 8. COLU #6 (J9) Connector Pinouts Pin # Assignment Assignment Pin # TIP31 RING31 TIP32 RING32 TIP33 RING33 TIP34 RING34 TIP35 RING35 TIP36 RING36 <BURN IN> – CC8KA CC64KA INTRPT6- SCB6 RDATA6 RDATB6 CLKA6 CLKB6 RSIGA6 RSIGB6 FSYNCA6...
  • Page 22 Theory of Operation SCP-PCS718-020-04H Table 9. COLU #7 (J10) Connector Pinouts Pin # Assignment Assignment Pin # TIP37 RING37 TIP38 RING38 TIP39 RING39 TIP40 RING40 TIP41 RING41 TIP42 RING42 <BURN IN> – CC8KA CC64KA INTRPT7- SCB7 RDATA7 RDATB7 CLKA7 CLKB7 RSIGA7 RSIGB7 FSYNCA7...
  • Page 23 SCP-PCS718-020-04H Theory of Operation Table 10. COLU #8 (J11) Connector Pinouts Pin # Assignment Assignment Pin # TIP43 RING43 TIP44 RING44 TIP45 RING45 TIP46 RING46 TIP47 RING47 TIP48 RING48 <BURN IN> – CC8KA CC64KA INTRPT8- SCB8 RDATA8 RDATB8 CLKA8 CLKB8 RSIGA8 RSIGB8 FSYNCA8...
  • Page 24 Theory of Operation SCP-PCS718-020-04H Table 11. COLU #9 (J12) Connector Pinouts Pin # Assignment Assignment Pin # TIP49 RING49 TIP50 RING50 TIP51 RING51 TIP52 RING52 TIP53 RING53 TIP54 RING54 <BURN IN> – CC8KB CC64KB INTRPT9- SCB9 RDATA9 RDATB9 CLKA9 CLKB9 RSIGA9 RSIGB9 FSYNCA9...
  • Page 25 SCP-PCS718-020-04H Theory of Operation Table 12. COLU #10 (J13) Connector Pinouts Pin # Assignment Assignment Pin # TIP55 RING55 TIP56 RING56 TIP57 RING57 TIP58 RING58 TIP59 RING59 TIP60 RING60 <BURN IN> – CC8KB CC64KB INTRPT10- SCB10 RDATA10 RDATB10 CLKA10 CLKB10 RSIGA10 RSIGB10 FSYNCA10...
  • Page 26 Theory of Operation SCP-PCS718-020-04H Table 13. COLU #11 (J14) Connector Pinouts Pin # Assignment Assignment Pin # TIP61 RING61 TIP62 RING62 TIP63 RING63 TIP64 RING64 TIP65 RING65 TIP66 RING66 <BURN IN> – CC8KB CC64KB INTRPT11- SCB11 RDATA11 RDATB11 CLKA11 CLKB11 RSIGA11 RSIGB11 FSYNCA11...

  • Page 27: Alarm Cutoff

    SCP-PCS718-020-04H Theory of Operation Table 14. COLU #12 (J15) Connector Pinouts Pin # Assignment Assignment Pin # TIP67 RING67 TIP68 RING68 TIP69 RING69 TIP70 RING70 TIP71 RING71 TIP72 RING72 <BURN IN> – CC8KB CC64KB INTRPT12- SCB12 RDATA12 RDATB12 CLKA12 CLKB12 RSIGA12 RSIGB12 FSYNCA12...

  • Page 28: Alarm Contacts

    Theory of Operation SCP-PCS718-020-04H Alarm Contacts The COTS provides access to the PG-Plus Alarm Unit (PAU) alarm relays by way of wire-wrap pins on the shelf backplane. Both normally open (NO) and normally closed (NC) relay operation is supported. Figure 5 shows the configuration of the alarm relays.

  • Page 29: Dsx1 Connections

    SCP-PCS718-020-04H Theory of Operation DSX1 Connections The COTS provides direct 100 Ω resistive termination for eight DS1 inputs from the DSX-1 cross-connect by way of wire-wrap pins located at the bottom right-hand side of the shelf backplane. The DS1 inputs are bridged to both PMX slots to allow for 1:1 equipment protection.

  • Page 30: Pmx Connector

    Theory of Operation SCP-PCS718-020-04H PMX Connector J2 and J3 on the backplane are the 160-pin DIN-type PMX connectors. Table 16 lists the PMX A (labeled as PMX 1 on the front of the shelf) connector pinouts. Table 17 lists the PMX B (labeled as PMX 2 on the front of the shelf) connector pinouts.
  • Page 31 SCP-PCS718-020-04H Theory of Operation Table 17. PMX 2 160-Pin DIN-Type Connector Pin # Row A Row B Row C Row D Row E RDATB1 RDATB2 RDATB3 RDATB4 RDATB5 RSIGB1 RSIGB2 RSIGB3 RSIGB4 RSIGB5 TDATB1 TDATB2 TDATB3 TDATB4 TDATB5 TSIGB1 TSIGB2 TSIGB3 TSIGB4 TSIGB5...

  • Page 32: Specifications

    Specifications SCP-PCS718-020-04H PECIFICATIONS Dimensions Height 8.5 in. (22.0 cm.) Width 19.0 in. (48.3 cm.) Depth 11.75 in. (29.8 cm.) Weight 10.2 lbs. (4.5 kg.) Environment Temperature -40°F to +150°F; -40°C to + 65°C Humidity 5% to 95% (non-condensing) Altitude -200 ft. MSL to 13,000 ft. MSL; -60 m MSL to 4,000 m MSL Vibration NEBS Mounting...

  • Page 33: Power

    SCP-PCS718-020-04H Power OWER The COTS uses –48 V dc CO battery. This voltage must be fused on a fuse panel in the CO. The fuse rating depends on the powering option used. OUNTING Attach the shelf to the selected position in the 19-inch or 23-inch equipment frames. For 23-inch frame installations, reverse the mounting brackets on the shelf.

  • Page 34: Power Connections

    Connections SCP-PCS718-020-04H Two Frame Ground termination points are provided on the COTS. The J22 and TB1 FGND Frame Ground termination points are electrically equivalent. To ground the COTS, perform one of the following ground connection options: • J22 Connection The preferred termination point is at J22, located on the lower left corner of the COTS backplane. This ground lug will accept wire in the range of 6 to 12 AWG.

  • Page 35: Split-Shelf Powering

    SCP-PCS718-020-04H Connections Cut the four-position jumper in half, then cut out a small strip to ensure a gap between the two pieces when they are replaced. Replace the two pieces on the TB1 block, connecting TB1-1 to TB1-2 with one piece; then TB-3 to TB-4 with the second piece.

  • Page 36: Single-Source Powering

    Connections SCP-PCS718-020-04H Connect a wire to the -48B-HIGH terminal of TB1. Connect the opposite end of this wire to the B CO battery supply at the fuse panel. Connect a wire from the Battery Return terminal in position 5 of TB1 on the COTS backplane to the A CO battery return at the fuse panel.

  • Page 37: Audible And Visual Alarm Connections

    SCP-PCS718-020-04H Connections Figure 8 Single-Source Power Wiring If the -48 HIGH and the -48 LOW terminals are not jumpered, the COLU power LED blinks, because one of the power rails is missing. Audible and Visual Alarm Connections Use a wire-wrap tool to terminate the alarm leads from the external alarm equipment on the alarm relay wire-wrap field.
  • Page 38 Connections SCP-PCS718-020-04H If a remote ACO switch is to be wired, refer to the <italics 10 bold>External ACO Connection section for wire-wrap pin field location. Figure 9 Alarm Relay Wire-Wrap Field Table 18. Alarm Relay Wire-Wrap Field Normally Open Common Normally Closed Description Connection...

  • Page 39: Subscriber Connections From Co

    SCP-PCS718-020-04H Connections Subscriber Connections From CO Subscriber lines from the CO are connected to the COTS by way of wire-wrap pins. Tables 19 through 21 show how the subscriber services are assigned at the Telco connectors. Tables 22 through 24 list the Telco connector pinouts.. Table 19.
  • Page 40 Connections SCP-PCS718-020-04H Table 20. Shelf Pair Assignments 25 through 48 COLU Type Shelf Shelf Pair Cardslot Assignments PLL-720 PLL-721 PLL-722 PLL-723 PLL-724 POTS1 POTS1 POTS1 POTS POTS2 POTS2 POTS2 POTS3 POTS3 POTS3 POTS4 POTS4 ISDN ISDN1 ISDN POTS5 ISDN2 POTS6 POTS1 POTS1 POTS1...
  • Page 41 SCP-PCS718-020-04H Connections Table 21. Shelf Pair Assignments 49 through 72 COLU Type Shelf Shelf Pair Cardslot Assignments PLL-720 PLL-721 PLL-722 PLL-723 PLL-724 POTS1 POTS1 POTS1 POTS POTS2 POTS2 POTS2 POTS3 POTS3 POTS3 POTS4 POTS4 ISDN ISDN1 ISDN POTS5 ISDN2 POTS6 POTS1 POTS1 POTS1...
  • Page 42 Connections SCP-PCS718-020-04H Table 22. CO Lines Wire-Wrap Pins Ring Ground RING1 TIP1 SLEEVE RING2 TIP2 SLEEVE RING3 TIP3 SLEEVE RING4 TIP4 SLEEVE RING5 TIP5 SLEEVE RING6 TIP6 SLEEVE RING7 TIP7 SLEEVE RING8 TIP8 SLEEVE RING9 TIP9 SLEEVE RING10 TIP10 SLEEVE RING11 TIP11 SLEEVE...
  • Page 43 SCP-PCS718-020-04H Connections Table 23. CO Lines Wire-Wrap Pins Ring Ground RING25 TIP25 SLEEVE RING26 TIP26 SLEEVE RING27 TIP27 SLEEVE RING28 TIP28 SLEEVE RING29 TIP29 SLEEVE RING30 TIP30 SLEEVE RING31 TIP31 SLEEVE RING32 TIP32 SLEEVE RING33 TIP33 SLEEVE RING34 TIP34 SLEEVE RING35 TIP35 SLEEVE...

  • Page 44: Composite Clock Connections

    Connections SCP-PCS718-020-04H Table 24. CO Lines Wire-Wrap Pins Ring Ground RING49 TIP49 SLEEVE RING50 TIP50 SLEEVE RING51 TIP51 SLEEVE RING52 TIP52 SLEEVE RING53 TIP53 SLEEVE RING54 TIP54 SLEEVE RING55 TIP55 SLEEVE RING56 TIP56 SLEEVE RING57 TIP57 SLEEVE RING58 TIP58 SLEEVE RING59 TIP59 SLEEVE...

  • Page 45: Hdsl Wiring

    SCP-PCS718-020-04H Connections Connect CC1TIP to one terminal of TERM 1, and CC1RING to the other terminal on TERM 1 (Figure 10). Connect CC2TIP to one terminal of TERM 2, and CC2RING to the other terminal on TERM 2 (Figure 10) if a second composite clock source is to be used.
  • Page 46 Connections SCP-PCS718-020-04H To make the wire-wrap terminations on the HDSL wire-wrap field: Use a wire-wrap tool to terminate HDSL pair #1 onto the Tip and Ring wire-wrap pins labeled DSL_A-1. Terminate the remainder of the required HDSL pairs onto the Tip and Ring wire-wrap pins on terminals DSL_A-2 (LU2) through DSL_A-12 (LU12).

  • Page 47: External Aco Connection

    SCP-PCS718-020-04H Connections External ACO Connection The ACO connection is made on the pin labeled EXT ACO as shown in Figure 12. To control the ACO remotely, connect the ACO to GROUND through a Normally Open, momentary contact switch. Figure 12 External ACO Wire-Wrap Connections P AND COTS The following steps should be performed before any circuit cards are installed in the...

  • Page 48: Product Support

    ADC’s Return Material Authorization (RMA) Department. Call or write ADC’s RMA Department to ask for an RMA number and any additional instructions. Use the telephone number, fax number or email address listed below: •...
  • Page 49 If there is another reason for returning the equipment, please let us know so we can determine how best to help you. Pack the equipment in a shipping carton. Write ADC’s address and the RMA Number you received from the RMA Department clearly on the outside of the carton and return to: ADC DSL Systems, Inc.

  • Page 50: Fcc Classa Compliance

    The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by ADC Technologies, Inc. voids the user's warranty. All wiring external to the product(s) should follow the provisions of the current edition of the National Electrical Code.

  • Page 51: Acronyms

    SCP-PCS718-020-04H Modifications CRONYMS Alarm Cut-Off. A switch used to silence audible alarms. American Wire Gauge Central Office COLU Central Office Line Unit. PG-Plus HDSL Interface Unit. COTS Central Office Terminal Shelf. PG-Plus Central Office Shelf including line units and common equipment. Digital Data Service Digital Signal One.
