Stealth PINNACLE SC-18WPL-HP230 Quick Start Manual

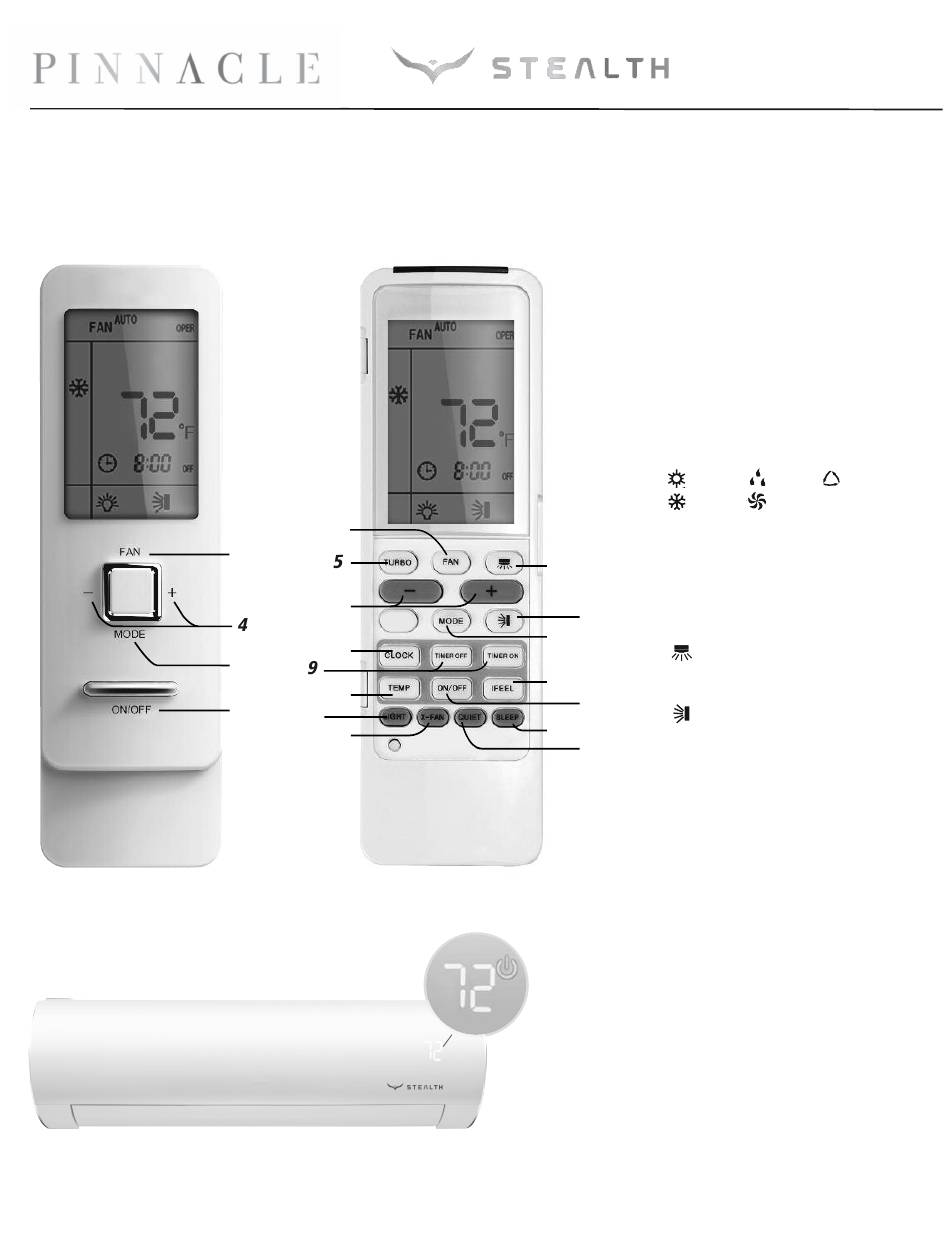

QUICK-START GUIDE
(Before opening cover)
INDOOR UNIT FRONT PANEL DISPLAY: Look here for LED display of system
status, setpoint and indoor temperatures and malfunction codes.
2
2
4
8
3
10
1
12
13
(After opening cover)
WALL MOUNT DUCTLESS
AIR CONDITIONING
AND HEATING SYSTEM
SC-09WPL-HP230
SC-12WPL-HP230
NOTE: Please read the complete Owner's
Manual carefully before operation.
1. ON/OFF Button
Press to power the unit on or off.
2. FAN Button
Press to select fan speed (Ultra-Low, Low, Low-Medium,
Medium, Medium-High, High or Turbo).
3. MODE Button
: HEAT
: COOL
4. +/- Buttons
Press to either raise or lower settings including
temperature and time.
6
5. TURBO Button
Press to boost cooling or heating airflow.
7
Quickest way to reach preset temperature.
3
6. Button
Press to control horizontal angle of louvers and to
11
redirect airflow.
1
7. Button
15
Press to control vertical angle of louvers and to
14
redirect airflow.
8. CLOCK Button
Press to display time of day or time remaining on timer.
9. TIMER ON/TIMER OFF Buttons
Press to start or stop the timer. (Adjust with "+" and
"–" buttons.) See Owner's Manual for more details.
10. TEMP Button
Press to select temperature setting.
11. I FEEL Button
Press to activate; allows unit to sense temperature at
the remote controller in Cool mode.
12. LIGHT Button
Press to turn on lights on the unit's Front Panel Display.
Press again to turn off.
13. X-FAN Button
Automatically runs fan after unit is turned off to remove
moisture from coil.
14. QUIET Button
Press to activate in Heat or Cool mode; after the room
reaches its set temperature, the system operates
discreetly at Low fan speed.
15. SLEEP Button
Press to select one of three SLEEP modes, each offering
varying levels of comfort control while sleeping.
See Owner's Manual for more details.
SC-18WPL-HP230
SC-24WPL-HP230
: DRY : FAN ONLY
: AUTO
