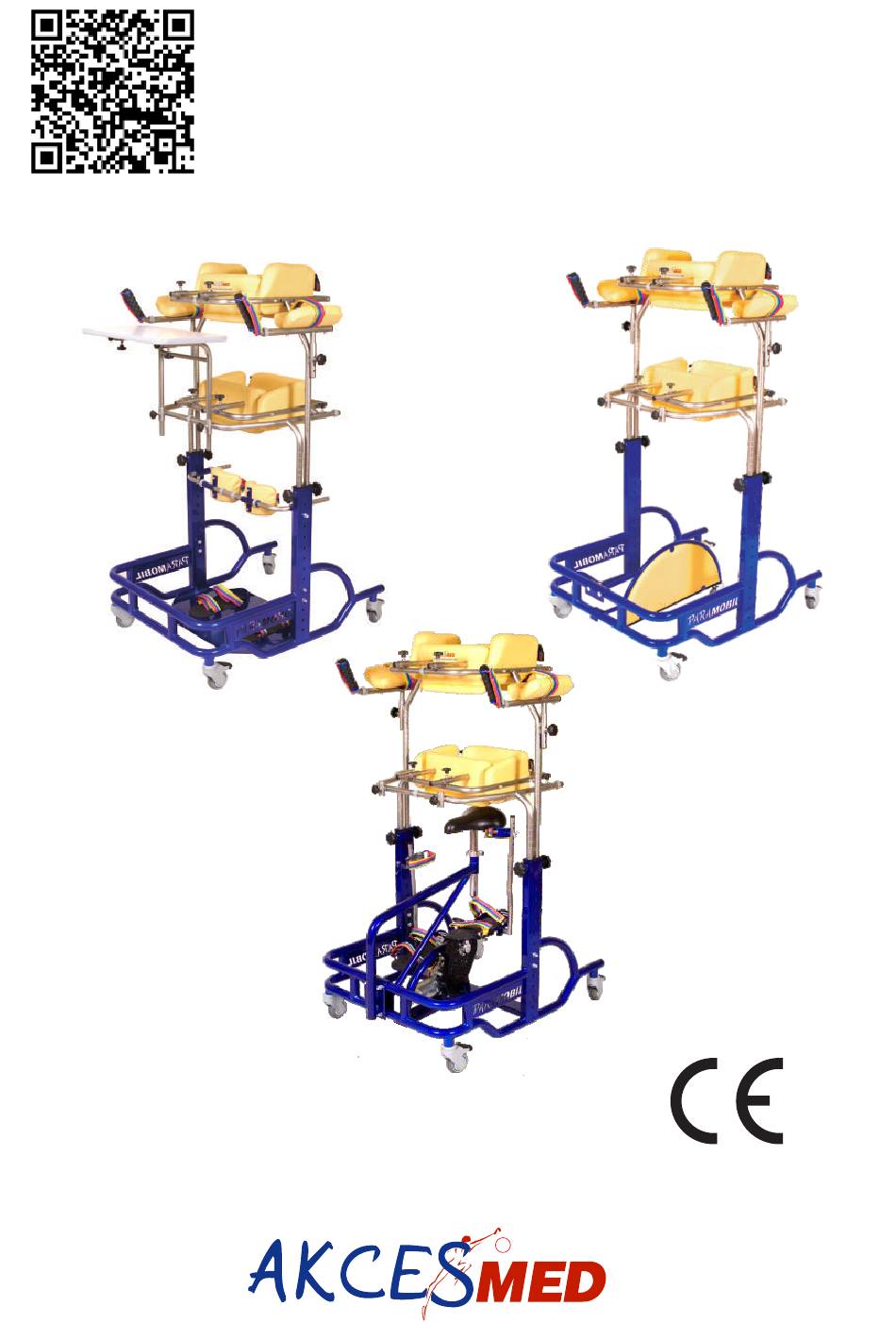

- Page 1 STANDING FRAME PARAMOBIL ™ Use and Maintenance Instruction...
-
Page 2: Table Of Contents
TABLE OF CONTENTS: 1. Purpose of the instruction s. 2 2. Recommendation of the usage the verticalizer PARAMOBIL s. 2 3. General characteristics of verticalizer PARAMOBIL s. 3 4. Technical specification of verticalizer PARAMOBIL s. 3 5. Standard accessories of each verticalizer PARAMOBIL s. - Page 3 The static-dynamic rehabilitation verticalizer was designed to help in rehabilitation of people with paresis of lower limbs as well as trunk and to enable standing in upright position, walking and active rehabilitation. We did our best to give you the product which is functional, ergonomic and safe.
-
Page 4: Purpose Of The Instruction S
1. Purpose of the instruction This instruction contains all basic information needed to use verticalizer PARAMOBIL properly, preparation before using the device, rules of patient's preparation, ways of maintenance and cleaning and the conditions of guarantee. It should be kept in a readily available place. -
Page 5: General Characteristics Of Verticalizer Paramobil S
–rehabilitation function. Thanks to its simplicity verticalizer PARAMOBIL is unusually valuable device during rehabilitation of the disabled at home, in hospital or rehabilitation centers' conditions. The proper use of it may contribute to a considerable improvement of the quality of disabled persons' life. -
Page 7: Standard Accessories Of Each Verticalizer Paramobil S
5. Standard accessories of each verticalizer PARAMOBIL - Frame with rotating wheels equipped with brakes (1) - Chest clamping-ring with pelot-pads (2) - Hip clamping-ring with pelot-pads (3) - Upper limbs stabilizers (bolsters and grips) (4) - Feet stabilizer (5) -
Page 8: Assembly Of Verticalizer Paramobil S
6. Assembly of verticalizer PARAMOBIL A. Static version Picture 1 Picture 2 Picture 3 Picture 5 Picture 4... - Page 9 B. Dynamic version Chest and hip clamping-rings and upper limbs stabilizers should be installed like in static version (pictures 1 and 3) Install the separator according to the picture 6 Picture 6 C. Rehabilitation version Chest and hip clamping-rings and upper limbs stabilizers should be installed like in static version (pictures 1 and 3) knob of adjustment the engine resistance...
-
Page 10: Preparation To Use - Safety Measures S
7. Preparation to use – safety measures Verticalizer PARAMOBIL will correctly fulfill its function if it is adjusted to growth and weight of patient's body. Therefore during the purchase you should pay attention to the parameters (size 1, 2, 3) given on page 3. Regulation and adjustment should be always carried out by authorized service agent - therapist. - Page 11 AKCES-MED Ltd. sell the device technically efficient, free of constructional, assembly or material defects etc. Verticalizer PARAMOBIL is covered by 24 months guarantee as of the day of purchasing the product by a patient. Manufacturer is not responsible for damage in the following cases:...
-
Page 12: Patient's Preparation S
Suitably trained persons have to assist patient while doing exercises. Verticalizer PARAMOBIL has a module construction equipped with three functions: static, dynamic and rehabilitating. Selection of particular units of the verticalizer and their proper adjustment depends on chosen functions. (The unit's assembly in particular function is given on page 6 and 7). - Page 13 VELCRO stickers in the feet stabilizer and on knee pelot-pads should be unfastened. Place feet into feet stabilizer, shift them backward maximally to the metal clamping-ring and then fasten VELCRO stickers (picture 1). Verticalize patient, fasten both fasteners of hip and chest clamping-ring (double protective system –...
- Page 14 Hip clamping-ring – perpendicular and horizontal regulating Hip clamping-ring should be fixed at the level of trochanter of lower limbs (to regulate perpendicularly use knobs B). After fixing height you must regulate position of hip clamping-ring to the hips using knobs C (regulation forward and backward) and then the knobs D (hips regulation –picture 3) The proper position of trunk and pelvis depends on precise adjusting.
- Page 15 If all elements are adjusted and patient feels well, you can unblock the wheels' brakes and start exercises. When the patent tends to cross lower limbs please use a separator (picture 5), which should be installed according to picture on page 7.
- Page 16 During using of electric rotor patient should seat on saddle comfortable. Unacceptable is to stand by patient onto rotor's pedal. After exercising with verticalizer PARAMOBIL patient must return safely on wheelchair, chair, armchair, bed etc. Patient cannot leave verticalizer independently.
-
Page 17: Maintenance And Cleaning Of Verticalizer Paramobil S
Maintenance of construction and upholstered units Whole construction and upholstery of PARAMOBIL should be cleaned with soft cloth moistened in diluted alcohol, after cleaning should be dried gently. In case of using verticalizer by many patients (in the hospitals, rehabilitation... - Page 18 It is not allowed to clean, change units, parts and conserve the verticalizer while it is being used by the patient. The responsibility for any other activities with PARAMOBIL is on user. Manufacturer is responsible only for original and hidden defects or technical damages occurred during the correct exploitation of the article.
- Page 20 35-615 Rzeszów tel. (17) 864 04 70 www.akces-med.com e-mail: akces-med@akces-med.com Authorised Dealer Date of issue : 15.09.2006 The last update : 30.03.2015 AKCES-MED Ltd. reserve the right to introduce technical and trading changes in the content of the instruction without warning.
