Akces-Med ACTIVALL CROSS User Manual

Dynamic standing frame
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ACTIVALL CROSS
™
DYNAMIC STANDING FRAME
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACTIVALL CROSS and is the answer not in the manual?

Questions and answers

Related Manuals for Akces-Med ACTIVALL CROSS

Summary of Contents for Akces-Med ACTIVALL CROSS

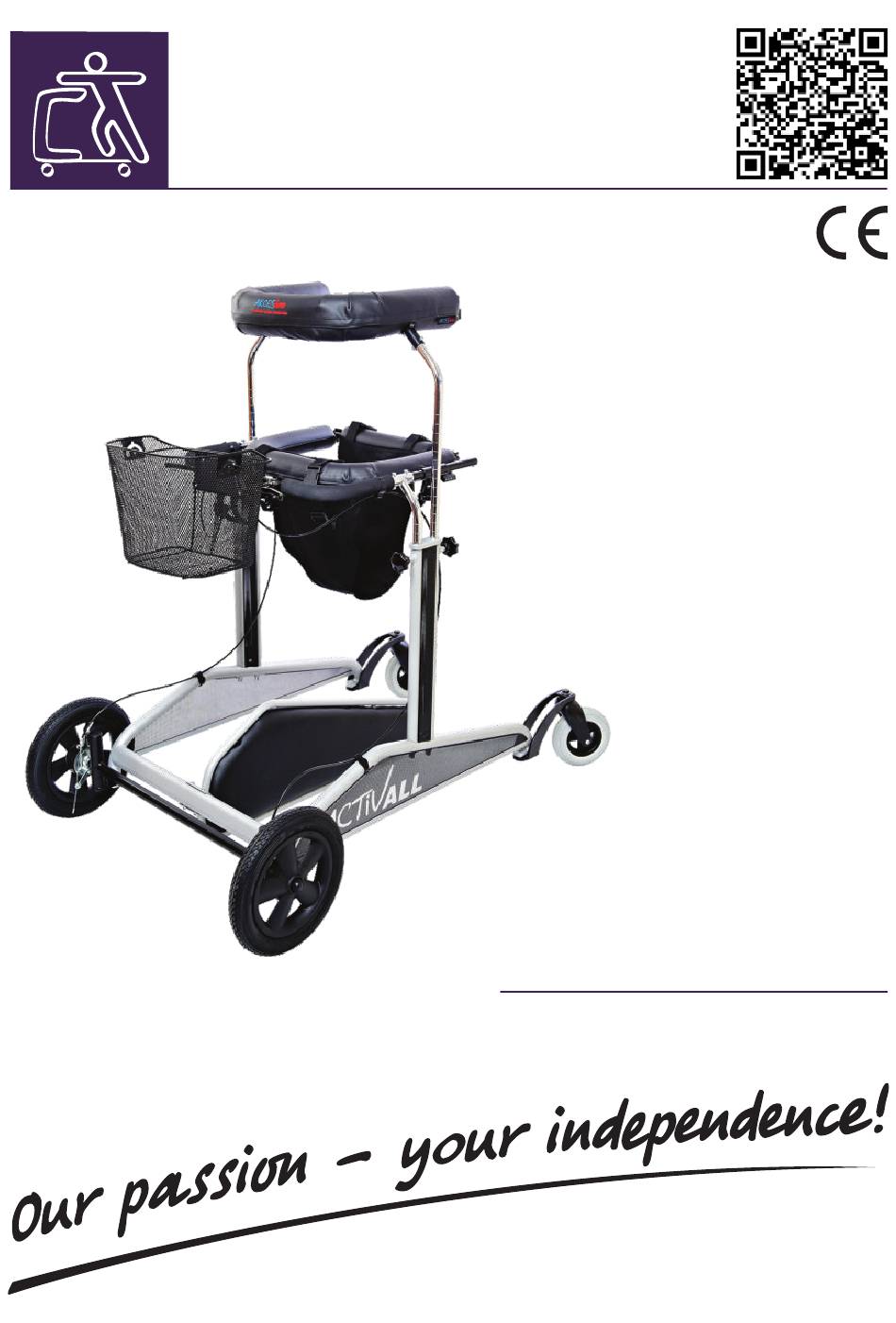

  • Page 1 ACTIVALL CROSS ™ DYNAMIC STANDING FRAME USER MANUAL...
  • Page 2 Producer's identification number in the Registration Department of Healing Products, Medical Products and Biocide Products: PL/CA01 04088/W Akces-Med. Sp. z o.o. Company introduced quality management system ISO 13485 regarding production, sales and service. The system is certified by Det Norske Veritas.

  • Page 3: Table Of Contents

    ACTIVALL CROSS CONTENTS 1. The Purpose of user manual................5 2. Indications for use....................5 3. General characteristics of standing frame............6 3.1 Standard equipment..................6 3.2 Additional equipment................7 4. Size table.........................9 5. Description how to assembly standing frame ...........10 5.1 Basic version....................10 5.2 Off-road version..................14 Description how to use standing frame...
  • Page 4 If you have any questions or observations, please contact our company medical advisor (telephone: 508 382 509) or directly with the Akces-Med ltd facility (telephone: 17 864 04 70).

  • Page 5: The Purpose Of User Manual

    The present user manual contains basic information which is essential for proper usage, preparation, maintenance, cleaning and guarantee conditions ACTIVALL CROSS™ dynamic standing frame. User manual should be kept in easily accessible place. It is designed for people who look after the disabled , and for both doctors as well as physiotherapists who operate the device.

  • Page 6: General Characteristics Of Standing Frame

    ACTIVALL CROSS GENERAL CHARACTERISTICS OF STANDING FRAME 3.1. Standard equipment BASIC VERSION 1. Frame with castors and brakes (rear castors with friction brake). 2. Lower limbs separator . 3. Pelvic support. 4. Chest support with upholstery. 5. Pelvic harness. OFF-ROAD VERSION 1.

  • Page 7: Additional Equipment

    ACTIVALL CROSS 3.2. Additional equipment Safety AVC_002 Belt for moving the AVC_011 Castors with fixed AVC_010 Castors with blockade of patients AM-P direction of movement (2 pcs) reverse movement (2 pcs) Positioning AVC_013 Set of large wheels (125 mm) (4pcs.)
  • Page 8 ACTIVALL CROSS AVC_208 Universal knee AVC_207 Lower limb in 20° flexion AVC_206 Lower limb in 10° flexion immobilizer OKD-03/10 immobilizer OKD-03/20 immobilizer OKD-01 AVC_210 Post operative knee AVC_209 Lower limb brace with AVC_211 Post operative knee brace with polycentric 20° rom polycentric 20°...

  • Page 9: Size Table

    ACTIVALL CROSS SIZE TABLE Unit Measurement Size 2 Size 4 Size 5 Symbol Size 3 pelvic support width [cm] pelvic support depth* [cm] pelvic support height [cm] 66-82 77-102 85-112 98-120 pelvic support circuit [cm] pelvic support circuit [cm] [cm]...

  • Page 10: Description How To Assembly Standing Frame

    ACTIVALL CROSS DESCRIPTION HOW TO ASSEMBLY STANDING FRAME 5.1. BASIC VERSION LIST OF ELEMENTS: 1) Chest brace 2) Pelvic brace 3) Frame with lower limbs separator Columns (2pcs.) www.akces-med.com +48 17 864 04 77 export@akces-med.com...
  • Page 11 ACTIVALL CROSS To assemble ACTIVAL CROSS™ in BASIC version, you should: STEP 1. Attach the columns (4) to the standing frame's base (3). Columns should be fastened to the base in place of two holes by use of attached screws.
  • Page 12 ACTIVALL CROSS STEP 2. Attach the pelvic support (2) to the base (3). In order to do that, insert the pelvic brace brackets into the first frame of the base. CAUTION! After assemble of the pelvic support and adjusting it at the desired height be sure to tighten the knobs! www.akces-med.com...
  • Page 13 ACTIVALL CROSS STEP 3. Attach the chest support (1) to the base (3). In order to do that, insert the chest support brackets into the second frame of the base. CAUTION! After assembling of the chest support and adjusting it at the desired height be sure to tighten the knobs! www.akces-med.com...

  • Page 14: Off-Road Version

    ACTIVALL CROSS 5.2. OFF-ROAD VERSION To assemble ACTIVAL CROSS™ in OFF-ROAD version, you should: STEP 1. Unscrew the standard castors destined for room ride using the key “19” contained in the kit (pic.1,2). pic. pic. STEP 2. Screw the front chassis from the front side as shown in the picture using two of six M12 bolts and the key “19”contained in the kit.(pic.3,4).
  • Page 15 ACTIVALL CROSS STEP 4. Fasten the two brake levers on the hoop, so that the right hand of the patient was at the right wheel brake lever, tighten the screws and then press the eccentric mechanism (pic.6,7). pic. pic. STEP 5. Attach the brake cables using the special “clips”...

  • Page 16: Description How To Use Standing Frame

    ACTIVALL CROSS DESCRIPTION HOW TO USE STANDING FRAME CAUTION! The adjustment of standing frame to the patient should be always made by suitably trained staff. Suitably trained persons have to assist patient while doing exercises. Before use of standing frame...
  • Page 17 ACTIVALL CROSS Height of chest support depends on patient's control over his chest. If control is good, patient keeps upright position, it does not require his big effort and patient feels safe, the clamping- ring can be fixed below. Nevertheless, in such case a walking process should begin with fixing the clamping-ring under one's arm and then you can gradually level down.
  • Page 18 ACTIVALL CROSS Pelvic support should be fixed at the level of trochanter of lower limbs. After fixing height you must regulate position of pelvic support (regulation forward and backward) The proper position of trunk and pelvis depends on precise adjusting. The ideal position is one line of arms, trunk and hips.
  • Page 19 ACTIVALL CROSS CAUTION! While buttoning buckles please place your attention on characteristicsound "CLICK" which informs about correct fastening. CAUTION! Pelvis' harness cannot be treated as a seat, it serves as a protection from the fall only in case of faintness Straight position is safe and comfortable.

  • Page 20: Learning To Walk

    ACTIVALL CROSS LEARNING TO WALK If the patient feels well you can unblock the brakes and start practicing. If the patient feels well you can unblock the brakes and start practicing. While using off-road version you should check if swapped chassis is suitable matched and fastened.
  • Page 21 ACTIVALL CROSS 7.2. OFF-ROAD VERSION In order to safely leave the standing frame while using the off-road mode, move the device to a flat, paved surface. In order to leave the standing frame, follow these steps: 1. Lock the wheel brakes.

  • Page 22: Additional Equipment

    ACTIVALL CROSS ADDITIONAL EQUIPMENT 8.1. Castors with blockade of reverse movement, AVC_011 Knob A castors with blockade of reverse Using the movement is of great importance while first steps in the dynamic standing frame. Screwing tight the knob A blocks a bend of castors and patient can move forward only.
  • Page 23 ACTIVALL CROSS 8.3. Forearm supports, AVC_112 Perfect for people with limited control of the upper body, provide additional side support. You can order 1 or 2 pieces. 8.4. Lower limbs separator, AVC_145 Lower limbs separator prevents crossing of the legs during using of the dynamic function of the device.
  • Page 24 ACTIVALL CROSS 8.7. Set of large wheels (125 mm), AVC_013 Large 125mm castors with bearings. Very quiet and extremely durable. Front castors with directional and reversing lock, rear castors with directional lock and brake. NOTE: The set of castors increases the standing frame height by 6cm 8.8.
  • Page 25 ACTIVALL CROSS 8.10. Lower limb immobilizer AM-TUD-KD, AVC_201 It prevents from knee hyperextension and is highly recommended in the rehabilitation process of the patient. 8.11. Lower limb immobilizer with kneecap protection AM-TUD-KD-02, AVC_202 Indicated for patients with lower limbs muscles weakness.
  • Page 26 ACTIVALL CROSS 8.14. Lower limb extension immobilizer OKD-03, AVC_205 It prevents from knee hyperextension and is highly recommended in the rehabilitation process of the patient. 8.15. Lower limb in 10° flexion immobilizer OKD- 03/10, AVC_206 It keeps the knee joint in moderate 10° flexion which prevents from knee hyperextension.
  • Page 27 ACTIVALL CROSS 8.18. Lower limb brace with polycentric 20° rom adjustment OKD-02, AVC_209 It stabilizes and reliefs the knee joint. Equipped with a 2R side clock that enables you to adjust the range of motion of the knee joint at 20°.
  • Page 28 ACTIVALL CROSS 8.22. Kafo brace for lower limb with splints 2r and dynamic foot made of carbon fibre AM-KDS-AM/2R, AVC_213 KAFO type orthotics, stabilizes the knee joint and compensates for the lost flexion function. 8.23. Knee and hip orthosis with rom adjustment OKD-14 ,...

  • Page 29: The Use Of Standing Frame

    Remember to use the product only with someone who is trained and knowledgeable. Do not forget to prepare both product as well as patient before using ACTIVALL CROSS™! 9.1. Preparation of the patient Before using the product, it is essential to make sure that: ·...

  • Page 30: How To Use Standing Frame

    ACTIVALL CROSS 9.2. How to use standing frame Before use it is necessary to: · Unfold the device; · Place the device on a flat surface allowing for easy access to the standing frame at a safe distance from sources of ignition and high temperature ·...

  • Page 31: Upright Position

    ACTIVALL CROSS 9.3. Upright position CAUTION! The length of time for upright position process is different for each patient. It is recommended to extend this time during the initial period (adaption period for the change of position). Either doctor or physiotherapist can make decision concerning the length of upright position process.
  • Page 32 ACTIVALL CROSS CAUTION! As far as first upright standing is concerned, it takes place in rehabilitation, neurosurgery or orthopedics wards. Moreover, it has to be performed together with doctor and physiotherapist due to the fact that medical problems may appear during first treatments such as fainting, drop in blood pressure, dizziness etc.

  • Page 33: Safety Rules

    It is highly important to consult either doctor or physiotherapist in order to make right decision concerning the choice of ACTIVALL CROSS™ and its size. It is also essential to familiarize with the guidelines described in user manual before using the device.
  • Page 34 ACTIVALL CROSS 2. It is forbidden to use the device for different purposes that it is intended to. 3. It is forbidden to use the device when it is damaged or any part is missing. 4. It is forbidden to leave the patient unattended.
  • Page 35 CAUTION! The weight of user should not be bigger than maximal weight described on page 9 where you will find information regarding this issue. 1) AKCES-MED Sp. z. o. o sells products free from manufacturing defects or faults. 2) Manufacturer gives the purchaser 24-month guarantee from the date of purchase.

  • Page 36: Maintenance And Cleaning

    ACTIVALL CROSS MAINTENANCE AND CLEANING ACTIVALL CROSS™ should be kept clean and used in compliance with the manufacturer's recommendations. The device should be kept in clean, dry and ventilated room. Maintenance as well as cleaning have to be performed at least once a month.
  • Page 37 ACTIVALL CROSS 8. Pelvic harness should be hand washed in water not exceeding 40°C, using mild detergents. After washing, dry it at room temperature. 9. In the case of using the standing frame by many patients in hospitals, rehabilitation wards or other places, and regulations of these facilities do not provide otherwise, the push handles should be disinfected before passing the device to other patient.
  • Page 40 ORTHOPAEDIC DEVICES MANUFACTURER Akces-MED Sp. z o.o. Jasionka 955B 36-002 Jasionka tel. (17) 864 04 77 www.akces-med.com e-mail: export@akces-med.com Authorised Dealer Date of issue: 27.07.2007 The last update: 17.02.2016...
