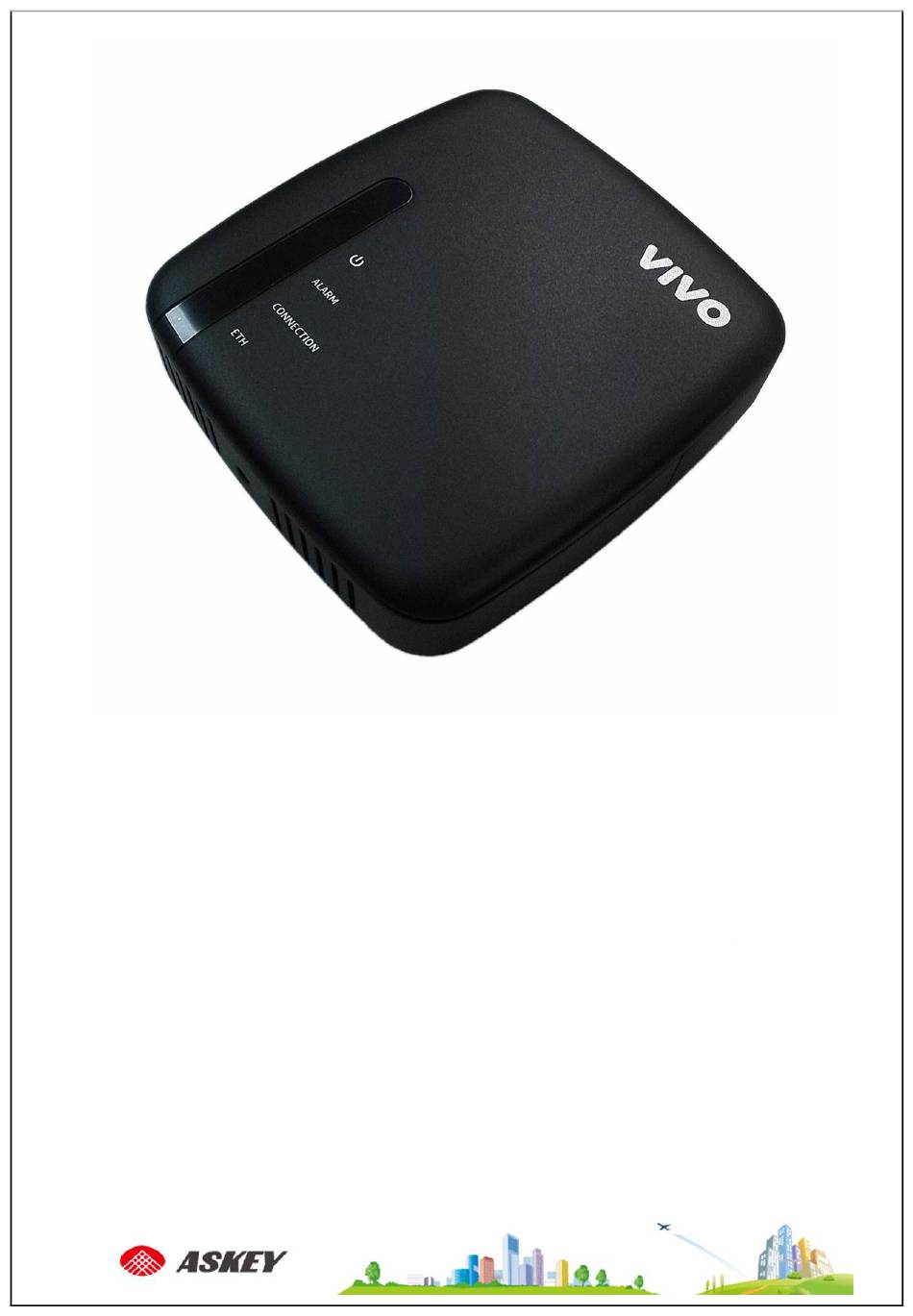

- Page 1 RTF7000 GPON Mini-ONT Getting Started Guide...
-
Page 2: Disposal And Recycling
RTF7000 GPON M -ONT - G ETTING TARTED UIDE SAFETY NOTES GENERAL Please read this Getting Started Guide carefully before using the RTF7000 GPON Mini-ONT. Do not use this device for any other purpose, as doing so may be dangerous. PLACEMENT The RTF7000 GPON Mini-ONT and all its components (including cables and power adaptor) should be placed in a dry, indoor area,... - Page 3 RTF7000 GPON M -ONT - G ETTING TARTED UIDE Index WELCOME ..............4 STATUS INDICATOR ............. 5 CONNECTIONS OVERVIEW ..........6 QUICK SETUP ............. 7 LED INDICATOR FOR TROUBLESHOOTING ......10 3 / 10...
- Page 4 ETTING TARTED UIDE WELCOME ASKEY® , an industry leader in networking, introduces RTF7000 which is a single LAN port GPON ONT offering a bandwidth of up to 1 G bps. The RTF7000 supports optical network termination management and control interface (OMCI), which helps the service provider to provision services remotely.
-
Page 5: Box Content
RTF7000 GPON M -ONT - G ETTING TARTED UIDE BOX CONTENT Getting Started Guide (this document) Ethernet cable x 1 RTF7000 GPON MINI-ONT AC Power Adaptor x 1 5 / 10... -
Page 6: Status Indicator
RTF7000 GPON M -ONT - G ETTING TARTED UIDE STATUS INDICATOR Status indicators only become visible when the RTF7000 GPON Mini-ONT is powered and the appropriate feature is operational. POWER STATUS (Power status of the product) Off: ONT is switched-off. Green Steady on: ONT is switched-on. -
Page 7: Connections Overview
RTF7000 GPON M -ONT - G ETTING TARTED UIDE CONNECTIONS OVERVIEW Power Switch Power connector (DC adapter plug-in) LAN Port (Connect to high speed internet) GPON Port (Connect to fiber cable) Reset Switch 7 / 10... -
Page 8: Quick Setup
RTF7000 GPON M -ONT - G ETTING TARTED UIDE QUICK SETUP Step 1: Connect Fiber cable to GPON port of Mini-ONT Danger — Fiber cables transmit invisible laser light. To avoid eye damage or blindness, never look directly into fibers, connectors, or adapters. - Page 9 RTF7000 GPON M -ONT - G ETTING TARTED UIDE The RTF7000 GPON Mini-ONT can be either free standing on a flat sturdy surface or wall mounted. To wall mount the RTF7000 GPON Mini-ONT, fix the wall screws to the wall as shown in the below illustration Use the stand’s screw holes as guidelines to drill 2 fixing points.
- Page 10 RTF7000 GPON M -ONT - G ETTING TARTED UIDE LED INDICATOR FOR TROUBLESHOOTING Case Description Power Connection Alarm Power Off Green The RTF7000 is powered on steady The RTF7000 is in ranging mode Green Green (connection green blinking for 3~5 sec) steady Blinking Green...
