Summary of Contents for Triplett BR260

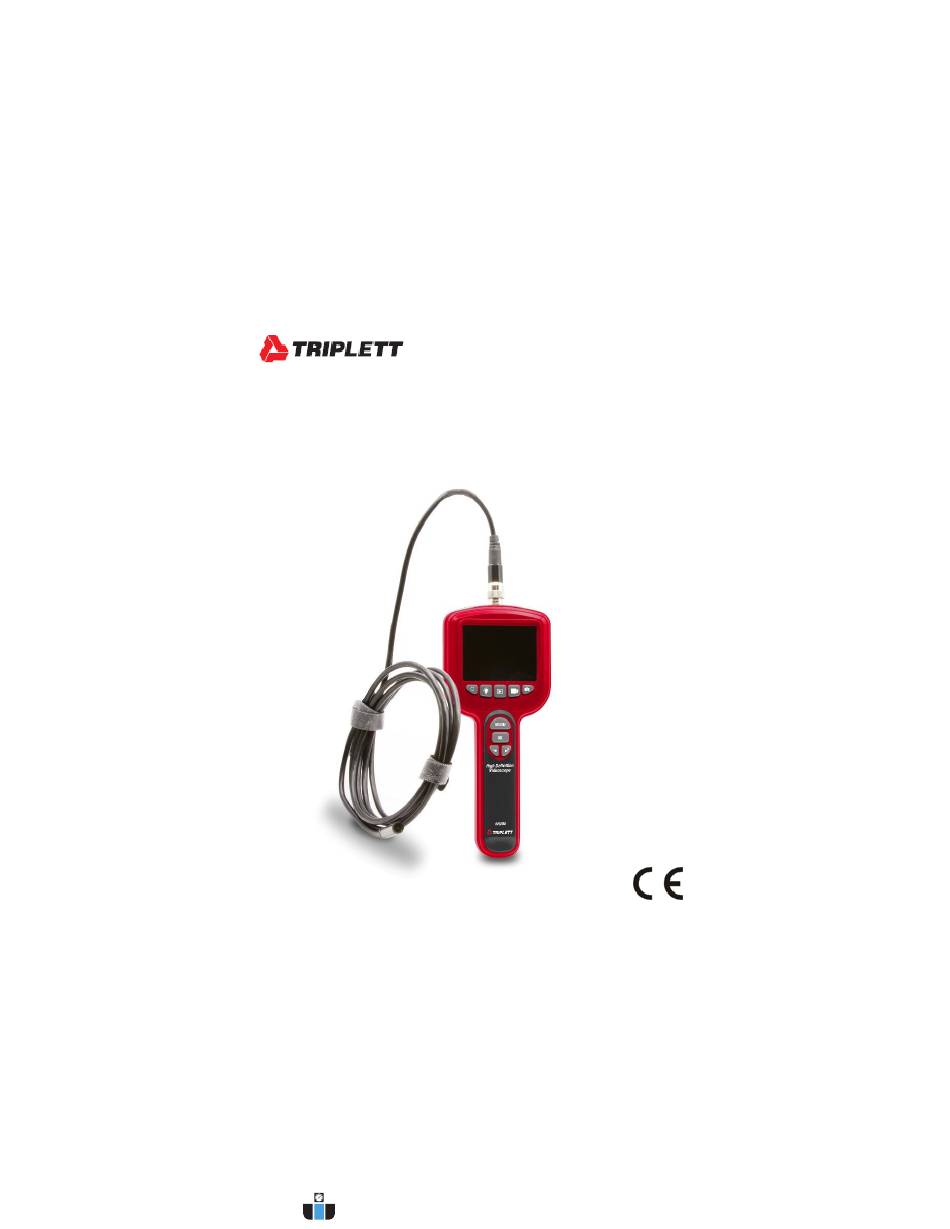

- Page 1 User Manual BR260 High Definition Borescope Inspection Camera 1.800.544.2843 www.calcert.com sales@calcert.com...
- Page 2 Introduction Congratulations on your purchase of the Triplett BR260 Borescope. The BR260 is a high performance industrial inspection camera with a 3-inch high definition color LCD. It is ergonomically designed so that the main functional buttons can be controlled with one hand. The snapshot and recording functions are supported, photos and videos can be saved on TF memory card (Micro-SD card).Features include an auxiliary light source and...
-
Page 3: Accessories Installation
WARNING ! This product is an industrial inspection camera and is not intended for medical use or human examination. ACCESSORIES INSTALLATION The installation of accessories is shown in the following figures NOTE: Dual Lens Option Not Available for BR260 model at this time. 1.800.544.2843 www.calcert.com... -
Page 4: Button Operation
Operation BUTTON OPERATION Power Button : Press for 3 seconds to turn ON / OFF the screen. Playback Button: Playback : hold it to enter Photo or Video Playback, press again to exit. Video Button : Press it for Video recording . Photo Button : 1.800.544.2843 www.calcert.com... - Page 5 Press it to capture Photo images OK /Screen rotation: In setup menu, press the OK button to confirm. In live view, press it to screen rotate 180°, press again to resume screen rotation 180°. Camera LED Button : Press it to adjust 3 levels brightness of the camera. ENTER MENU SETTINGS Date / time settings Setting path:...
- Page 6 Press up and down key to select photo or video to view, and short press the button to enter deleting photo or video, press to delete photo or video. Press to exit playback mode TECHNICAL PARAMENTERS: Model BR260 Screen 3.0inch color LCD display Resolution 1280*720 ; 1920*1080 1.800.544.2843 www.calcert.com sales@calcert.com...
-
Page 7: Troubleshooting
Horizontal viewing 60° angle Language Simplified Chinese, Traditional Chinese, English, French, German, Italy, Russian, Japanese, etc Line length 2M 5M 7M Focal length 3cm-10cm Waterproof level IP67(only for lens) Lens diameter 5.5mm/8mm Battery Support 4pcs Alkaline battery Battery life About 3-4 hours TROUBLESHOOTING: Problem Solution... - Page 8 Warranty Triplett / Jewell Instruments extends the following warranty to the original purchaser of these goods for use. Triplett warrants to the original purchaser for use that the products sold by it will be free from defects in workmanship and material for a period of (1) one year from the date of purchase. This...
