1. Function
Repeater FS5200R receives and transmits data for Fire condition and Fault
condition from remote fire control panels (repeaters) and provides information about their
status:
► when the security guards stay at a different place from the location of the
fire control panel
► when several fire control panels are monitored from one location
► when the fire control panel or panels are monitored from several locations
It is compatible with FS4000, FS 5100, FS 5200 FS5200R and FS 5200E.
2. Indication and Control Panel
1
2
3
4
5
6
7
8
1
Common indicator for Fault condition
2
Indicator for System error
3
Indicator for Fault in power supply
4
Common indicator for Fault condition in a remote fire control panel
5
Common indicator for Fault in power supply in a remote fire control panel
REPEATER
FS5200R
OPERATION MANUAL
20
1
2
3 4
5
6
7
9
10
11

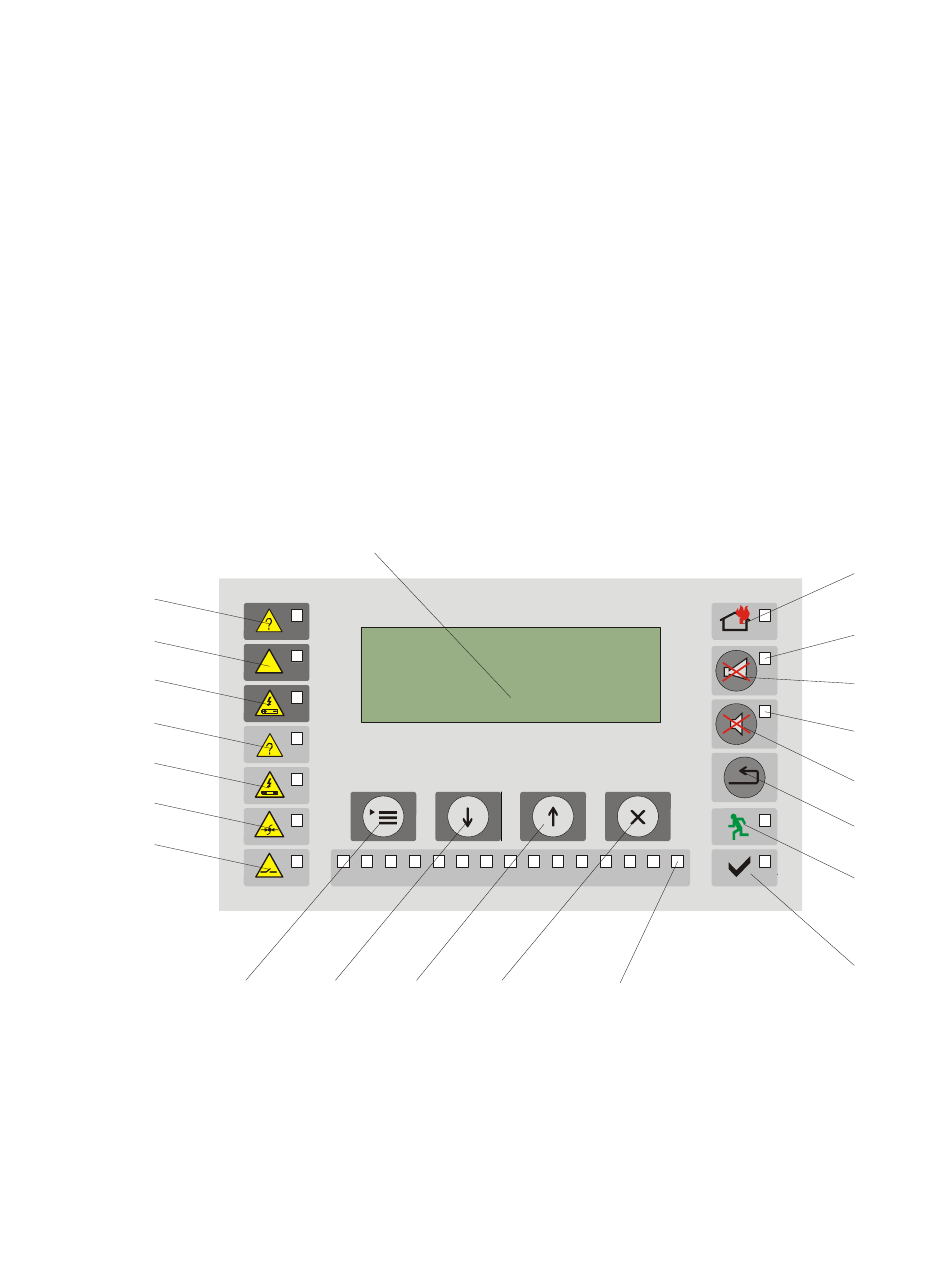

Front panel of repeater FS5200R
8
9 10 11 12 13 14 15
21
1
19
18
17
16
15
14
13
12
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for UniPOS FS5200R
Summary of Contents for UniPOS FS5200R
- Page 1 ► when several fire control panels are monitored from one location ► when the fire control panel or panels are monitored from several locations It is compatible with FS4000, FS 5100, FS 5200 FS5200R and FS 5200E. 2. Indication and Control Panel...
- Page 2 Common indicator for Fault condition in fire detecting line of a remote fire control panel Common indicator for Fault condition in monitored output of remote fire control panel Buttons Menu Button Down Button Up Button Cancel Indicator Power supply Indicator Delay of the outputs for Fire condition of the repeater Button Reset Button Alarm with indicator Suppressed alarm Indicator Suppressed alarm...
- Page 3 4.2.1. LED and sound indication In this condition the indicator (Fire) illuminates in red. The individual indicator for Fire condition of a remote fire control panel is illuminated in red. If the outputs for Fire condition phase are suppressed by button (Outputs), the LED indicator of the button illuminates in continuous red light.
- Page 4 4.3.5. Button (Exit) Press it and on the display appears the main screen. 5. Fault condition 5.1. Description The repeater enters Fault Condition when any of the events below have been registered: − low power supply – low backup battery during fault in the mains supply; −...
- Page 5 Fire condition in the Repeater: > Out1 ; > Out2 ; > RelFire ; If an output is disabled it is not activated for Fire condition or for Fault condition in the line of the monitored outputs. UniPOS wishes you a successful work!
