UniPOS FS5200R Operation Manual

Hide thumbs Also See for FS5200R:
Table of Contents

Advertisement

Quick Links

Download this manual
UniPOS

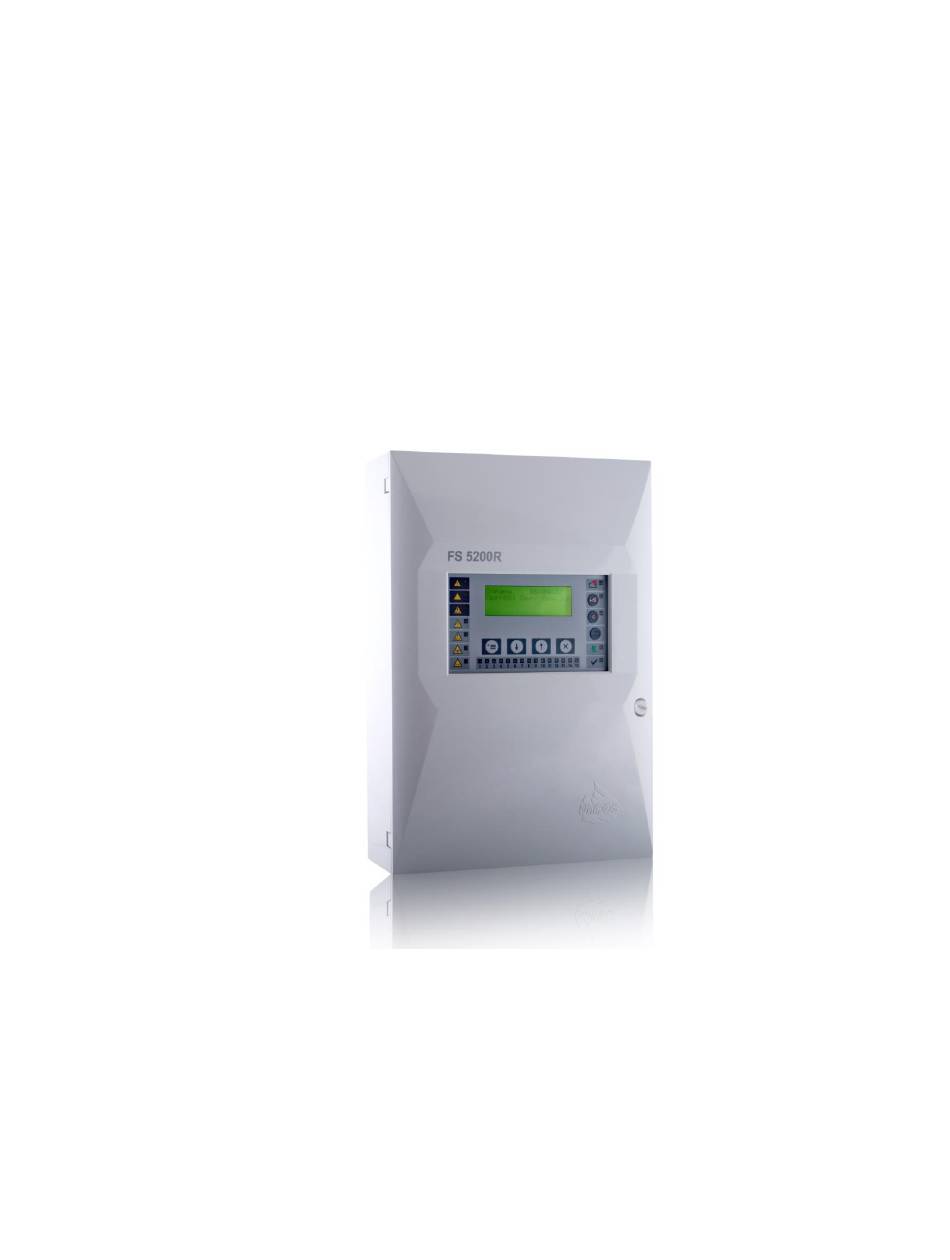

Repeater FS5200R
REPEATER FS5200R
OPERATION MANUAL
Instruction Manual
Page1
Revision 3/01.17
of 48

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FS5200R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for UniPOS FS5200R

Summary of Contents for UniPOS FS5200R

  • Page 1 UniPOS Repeater FS5200R REPEATER FS5200R OPERATION MANUAL Instruction Manual Page1 Revision 3/01.17 of 48...

  • Page 2: Table Of Contents

    UniPOS Repeater FS5200R CONTENTS 1. Introduction ........................3 2. Function ..........................3 3. Technical data........................3 4. Contents of delivery ......................4 5. General information ......................5 6. Duty Mode ......................... 9 7. Fire condition ........................10 8. Fault Condition ......................... 13 9.

  • Page 3: Introduction

    Repeater FS5200R 1. Introduction Repeater FS5200R is a unit supplementing the range of 5000 series products expanding the possibilities of the fire detecting and fire extinguishing systems built on the basis of fire control panels FS5100, FS5200, FS5200E and FS4000.

  • Page 4: Contents Of Delivery

    UniPOS Repeater FS5200R  Built-in real time clock Interfaces for communication with the fire control panels RS485 connected to it; Option to prolong the time period for Fire condition stage I with programmable inspection period Possibility for delay when switching the outputs for Fire alarm;...

  • Page 5: General Information

    Accessible for personnel trained and authorized by the Producer to repair the repeater and to modify the software 5.2. Conditions and indication The repeater FS5200R operates in six basic modes: Duty Mode, Fire Condition, Fault Condition, Disabled Component Mode, Information and Control Mode and SetUp Mode: Instruction Manual Page 5 Revision 3/01.17...
  • Page 6 UniPOS Repeater FS5200R  Duty Mode - the repeater is in Duty Mode, when the fire control panels connected to it are not in any of the rest five possible conditions and they have a connection with ;  Fire condition – The repeater enters Fire condition when a fire detector is activated in a line/lines of the fire control panel connected to it;...
  • Page 7 UniPOS Repeater FS5200R Conditions of the repeater Indication Indicator Fault in monitored output Fault condition of a remote fire control panel - continuous yellow light [7] Local sounder – discontinuous signal: 0.5 s Fire condition sound, followed by 0.5s break Fault condition –...
  • Page 8 Buttons and indicators showing each status of the repeater – [12], [13], [14], [15], [16], [17], [18] and [19]. 9 10 11 12 13 14 15 Front panel of repeater FS5200R Common indicator for Fault condition Indicator for System error...

  • Page 9: Duty Mode

    UniPOS Repeater FS5200R Button Up Button Cancel Indicator Power supply Indicator Delay of the outputs for Fire condition of the repeater Button Reset Button Alarm with indicator Suppressed alarm Indicator Suppressed alarm Button Outputs with indicator Suppressed outputs Indicator Suppressed outputs Indicator for Fire stage LCD display (4х20)

  • Page 10: Fire Condition

    UniPOS Repeater FS5200R 7. Fire condition 7.1. Description The repeater enters Fire condition after a fire condition has been activated in any of the fire control panels or repeaters connected to it. To exit this condition press button and the line in fire condition shown in the upper field of the display is reset (section.7.3.3).
  • Page 11 UniPOS Repeater FS5200R in fire condition at the respective fire the first and the last fire condition (EN54-2). control panels. Only the fire condition displayed in the first text field could be reset. 7.3. Using the buttons 7.3.1. Button (Alarm) Press it to: ...
  • Page 12 UniPOS Repeater FS5200R Example: It is created a system of 5 fire control panels and two repeaters (Appendix 1) Signals for Fire conditions in two remote fire control panels are received in the repeaters: - Fire condition in lines 1 and 2 of the fire control panel in Building 1;...

  • Page 13: Fault Condition

    UniPOS Repeater FS5200R Total number of lines in Fire condition – 2 First text field First text field: First occurred fire condition – line 2 in Building 1 01 FIre s1/RP03/Ln02 Second text field: Building 1 Last occurred fire condition – line 1 in Warehouse.
  • Page 14 UniPOS Repeater FS5200R  Battery low - backup batteries discharged due to interruption of mains supply;  Fault in a processor program;  Fault in a monitored output – short circuit or break;  Fault in the mains supply;  Fault in the backup batteries supply;...
  • Page 15 UniPOS Repeater FS5200R 8.2.2. Text messages Upon registration of a fault/s Real time clock condition the LCD display provides information about:  The total number of fault events;  Type of the fault event  Duty mode 11:02.59 Control panel...
  • Page 16 UniPOS Repeater FS5200R A new fault condition will trigger the local sounder for Fault condition only. 8.3.2. Button (Menu) Press the button to enter Information and Control Mode. 8.3.3. Buttons (Down) and (Up) Press the buttons to see on the display the next/previous fault conditions.

  • Page 17: Disabled Component

    UniPOS Repeater FS5200R 9. Disabled Component 9.1. Description The repeater enters Disabled component after a manual operation, disabling a specific component – monitored output or relay for fire condition. A disabled monitored output is switched off and is not monitored for fault condition.
  • Page 18 UniPOS Repeater FS5200R Confirm the selection with button (Menu) and use the buttons (Down) and (Up) to select the output to be disabled. Confirm the selection with button (Menu). 9 10 11 12 13 14 15 After confirming the selection...

  • Page 19: Information And Control Mode

    UniPOS Repeater FS5200R 9.4. Review of the entered disables Enter Information and Control Mode to review the entered disables. The menu is accessible for all Access levels.  Enter the main menu with button (Menu);  Press once (Down) and the cursor moves to “02 Review...
  • Page 20 UniPOS Repeater FS5200R button (Up); button (Exit). No specific LEDs or sound indication is provided for Information and Control Mode. The screens visualized on the display are organized in a tree structure, containing subordinate menus. Instruction Manual Page 20 Revision 3/01.17...
  • Page 21 UniPOS Repeater FS5200R Main menu Preview faults Preview disables Preview Statuses System functions 01 StatRemPanel 01 02 StatRemPanel 02 03 StatRemPanel 03 ..............15 StatRemPanel 15 “Out1” 16 Status “Out2” 17 Status Check Outputs Preview Clock SetUp Fire counters...
  • Page 22 UniPOS Repeater FS5200R 10.1. Submenu Review Faults This submenu displays the registered fault conditions in the repeater and the remote fire control panels (see section 8. Fault condition). 10.2. Submenu Review Disables This menu provides visual information about the disables for activating the monitored outputs and the fire relay (see section 9.4.
  • Page 23 UniPOS Repeater FS5200R 10.4. Submenu System Functions The menu contains the following subordinate menus functions: Check indication; Clock; Disable outputs; Review Parameters; Setup; Fire counter; Archive. 9 10 11 12 13 14 15 10.4.1. Function Check indication The screen to select the function...
  • Page 24 UniPOS Repeater FS5200R 10.4.2. Submenu Clock The menu is selected from menu System Functions. Press twice button (Down) and confirm with button (Menu). The menu contains the following functions: calendar date; day of the week; the time 9 10 11 12 13 14 15 calibration index 10.4.2.1.
  • Page 25 UniPOS Repeater FS5200R  button (Menu) – to confirmed the entered day;  button (Exit). 10.4.2.3. Function Time Use this function to set or adjust the current time. Upon activation of the function the factory set time appears and the cursor flashes on the first left digit of the hour.
  • Page 26 UniPOS Repeater FS5200R 10.4.3. Submenu Disable Outputs The screen for activation of the menu is displayed as follows: The operations for disable of outputs, monitored and/or relay are described in details in section 9 Disabled Component”. 9 10 11 12 13 14 15 10.4.4.
  • Page 27 UniPOS Repeater FS5200R 10.4.4.2. Function Master/Slave This function provides information about the logical level of connection of the repeater. Possible options are: Master; Slave. 9 10 11 12 13 14 15 10.4.4.3. Function Check Ground function possibilities: Off. 9 10 11 12 13 14 15 10.4.4.4.
  • Page 28 UniPOS Repeater FS5200R 10.4.5. Submenu Setup It is used for setting the configuration parameters of the repeater. Access to the Setup menu is provided through submenu System Functions of the main menu. The operations in Menu Setup 9 10 11 12 13 14 15 require Access Level 3 or 4.
  • Page 29 UniPOS Repeater FS5200R  Check of fire outputs. 10.4.5.1.1. Screen network Address The setting Network Address is valid only in the case when the repeater is a SLAVE one, i.e. when a network of more than one repeater is created. In this case the...
  • Page 30 UniPOS Repeater FS5200R 10.4.5.1.3. Screen Language The repeater supports menus in three languages: Bulgarian; English; Russian. Use the buttons (Down) (Up) for alternating change of the language. 9 10 11 12 13 14 15 10.4.5.1.4. Screen Check Ground screen provides information if check ground is being performed or not.
  • Page 31 UniPOS Repeater FS5200R  Type of the panel – determines the type of the connected fire control panel (repeater).  Network address – the unique for-digit network address within the system.  Text message – text, convenient for the user in order to distinguish the remote fire control panels.
  • Page 32 UniPOS Repeater FS5200R buttons (Down) and (Up), to confirm – the button (Menu). 10.4.5.2.3. Screen Network Address Use this screen to enter the network address of the remote fire control panel. The entered address should be unique for the created system of connected fire control panels, i.e.
  • Page 33 UniPOS Repeater FS5200R To enter the text, use:  (Down) – to change the character (all letters from the Bulgarian and Latin button alphabets, space);  (Up) – to move to the next character; button  (Menu) – to conform;...
  • Page 34 UniPOS Repeater FS5200R 10.4.5.5. Function Clear Archive When this function is selected a screen appears to confirm the deletion or to exit the screen without deletion. Press the button (Menu). “Меню”) to activate the function and to delete the archive. The information for the events, saved in the energy independent memory is deleted.

  • Page 35: Labour Protection Requirements

    UniPOS Repeater FS5200R 10.4.7. Function Archive This function allows information to be displayed for the events, saved energy independent memory. The structure of the shown information is as follows: No. of the record; total number of the records; text of the event in the archive;...

  • Page 36: Installation

    UniPOS Repeater FS5200R 12. Installation When installing the peripheral devices to the Repeater avoid arranging wires in closed loops; it will reduce the resistance of the repeater to electromagnetic interferences. For the installation operations it is required Access level 2 or higher.
  • Page 37 UniPOS Repeater FS5200R Jumper Interface RS485 Output with active level and the Out1 line status monitoring Output with active level and the Out2 line status monitoring Terminal for 28V voltage supply to peripheral devices Output, relay, potential free, the line status is not monitored...
  • Page 38 RS485 interface function is to transmit data and receive commands from FS4000, FS5100, FS5200, FS5200Е remote fire control panels or FS5200R repeater. FS5200R repeater receives data from fire control panels connected to it as it indicates the occurred events by means of sound, light and text messages.
  • Page 39 Remote Panel No. Remote Panel No. Remote Panel No. Remote panel No. Each one connected device can be: Remote control panel FS5200R Control Panel FS4000 Last device in the line First device in the line Control Panel FS5100 (last for the network)
  • Page 40 UniPOS Repeater FS5200R Interface PC board should be installed to the configuration of the fire control panels so that FS1200 and FS5200 could operate with a repeater. For FS5200 fire control panel the Interface PC board is fixed by means of the screws from the set to the Base Unit and the ribbon cable is put in the coupling of the Base PC Board (see the Instruction Manual of FS5200 fire control panel).

  • Page 41: Repeater Start Up

    UniPOS Repeater FS5200R 13. Repeater start up 13.1. Make sure that the connection to mains supply is properly made (see section 12.3). 13.2. Make sure that repeater and the fire control panel are properly connected in a common network (see section 12.2.5.2.).

  • Page 42: Conditions Of Operation, Storage And Transportation

     the conditions of storage and transportation have been observed;  the startup has been done by authorized personnel by the producer.  the requirements for operation stated herein have been observed. UniPOS wishes you a successful work! Instruction Manual Page 42 Revision 3/01.17...

  • Page 43: Appendix 1

    UniPOS Repeater FS5200R 16. Appendix 1 Network of two repeaters (master and slave) and five slave fire control panels–Option 1 Building 2 FS5100 (slave) Building 1 Security FS5200 FS5200R (slave) (master) Administration FS4000 (slave) Building 3 FS5100 (slave) Transport gate...
  • Page 44 UniPOS Repeater FS5200R Remote panel 02: ON/OFF: Type of panel: FS4000; ХХХХ (the fire control panel serial number); Network address: Text message: ADMINISTRATION Remote panel 03: ON/OFF: Type of panel: FS5100; Network address: 1010 (random four-digit number); Text message: BUILDING 2.
  • Page 45 UniPOS Repeater FS5200R Network number: 1020 (the same as the network number entered in RP4) Interface rate: 9600. The object is not the first one or the last one. The terminating resistor 120  is not on. 2.5. Fire control panel in Warehouse Menu –...
  • Page 46 UniPOS Repeater FS5200R Appendix 2 Network of two repeaters (master and slave) and five slave fire control panels–Option 2 Building 1 Security FS5200 FS5200R Building 3 (slave) (master) Building 2 FS5100 FS5100 (slave) (slave) Administration FS4000 (slave) Transport gate FS5200R...
  • Page 47 UniPOS Repeater FS5200R Remote panel 02: ON/OFF: Type of panel: FS4000; ХХХХ (serial No. of the fire control panel); Network address: Text message: ADMINISTRATION. Remote panel 03: ON/OFF: Type of panel: FS5100; Network address: 1010 (random four-digit number); Text message: BUILDING 2.
  • Page 48 UniPOS Repeater FS5200R Network number: 1020 (the same as the network number entered in RP4) Interface rate: 9600. In the created network, the fire control panel that is being set up is the first (end one), thus it is terminated with resistor 120 .
