Monessen Hearth AVFL60DLS Instructions

Log Placement Instructions
Model: AVFL60DLS
WARNING: Turn off fireplace and allow to cool complete-
ly before beginning installation. DO NOT use this option
kit with any other internal hearth option such as stones.

Kit Contents:

• Three (3) driftwood logs
• Four (4) log support pin brackets
• Four (4) #8 bracket mounting screws
NOTE: Do not handle logs with your bare hands. Always
wear gloves to prevent skin irritation from log material.
After handling the logs, wash your hands with soap and water
to remove any traces of fibers.
NOTE: Prior to installing the log set, you must first install
the pin brackets on the burner. The air deflection glass and
fireglass should only be installed after the pin brackets are
in place. The air deflection glass should be installed prior
to placing fireglass on the burner. For proper air deflection
and fireglass placement, please refer to the Owner's and
DEFLECTION GLASS

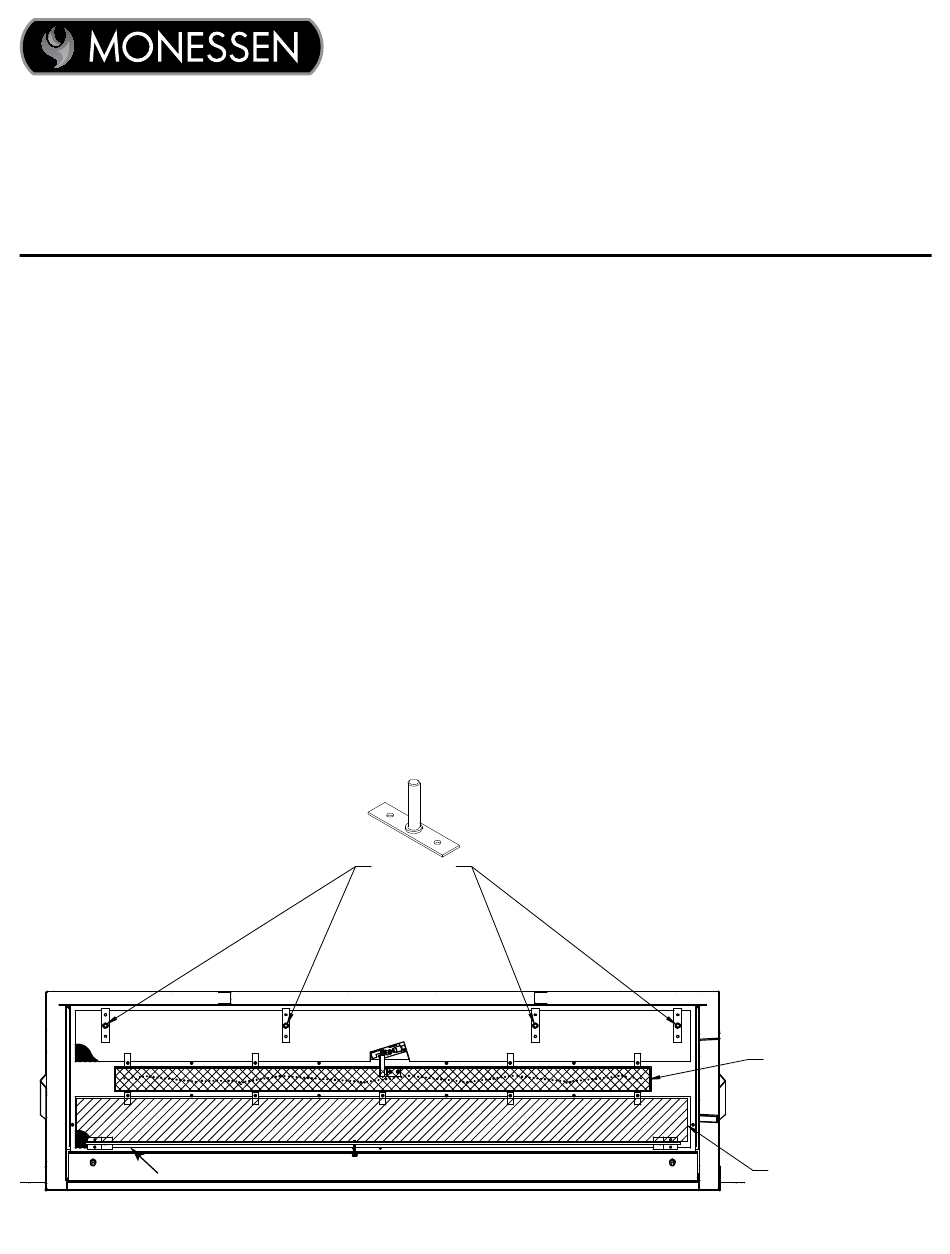

Figure 1 – Log Placement
REAR LOG PIN
LOCATIONS
Monessen • AVFL60DLS Log Placement Installation Manual • 4605-906 Rev. A • 03/17
Installation Manuals. The logs must then be placed in the unit
after the fireglass and air deflection glass. If the optional logs
are added to the AVFL60 after installation of deflective glass
and fireglass, move the fireglass away from the pin location
holes on the engine base as per Figure 1.
1. Mount the four log support pin brackets using mounting
holes and screws provided in locations indicated in Figure
1 for the two rear logs. Only 1 hole of the pin bracket
will be used to secure the pin to the rear of the engine
base. The front hole remains unused and rests on the
mesh area. Then arrange fireglass evenly across the
burner again. NOTE that the front log can be positioned
anywhere within the area designated on the front hearth
as indicated in Figure 1.
DO NOT PLACE LOGS
IN THIS AREA
FRONT LOG PLACEMENT AREA
1
