COROCORD PERFORMER ARCH 8220 Installation Instructions Manual

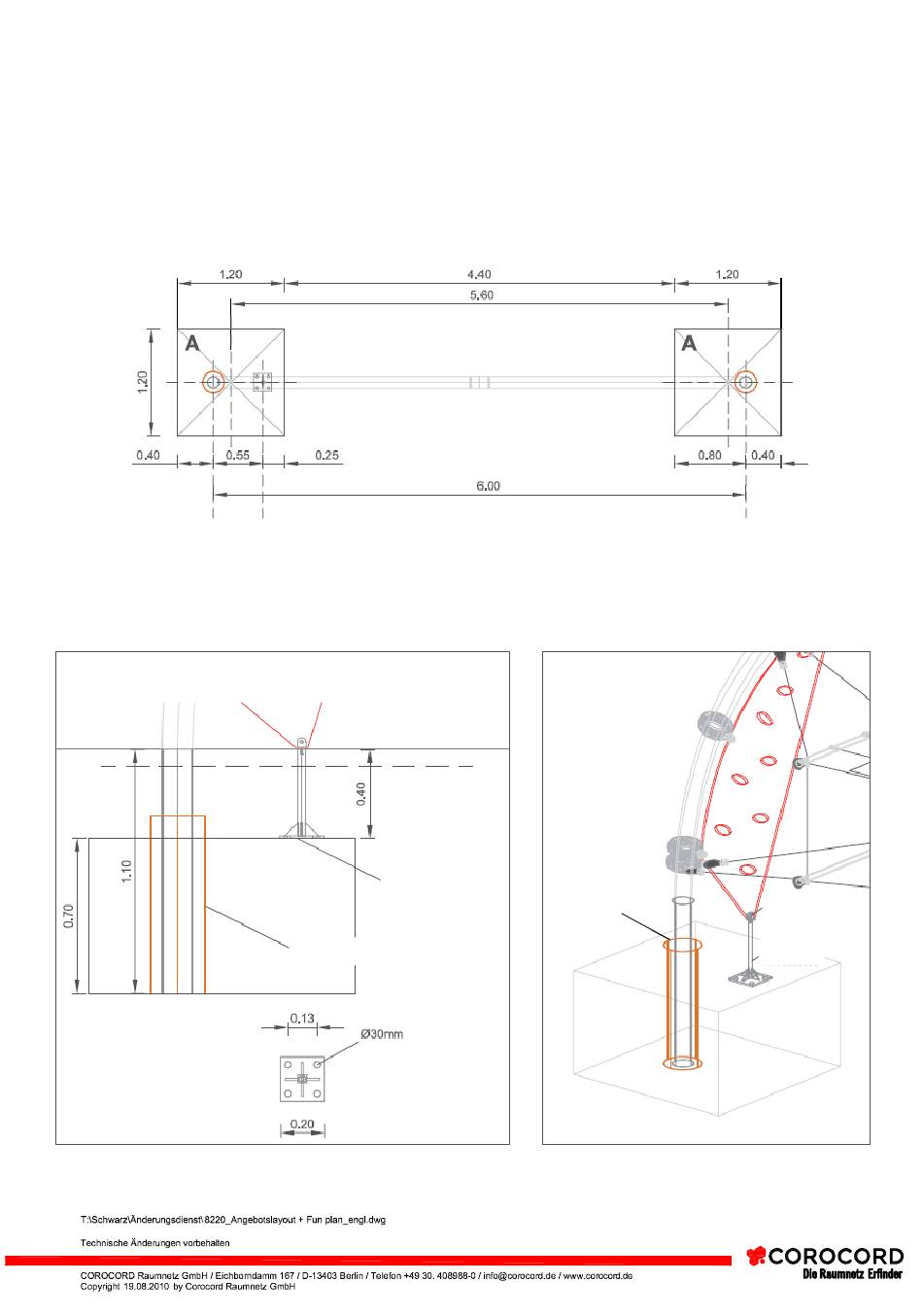

Foundation plan
Foundation A: 1,20 x 1,20 x 0,70m (2x)
Quality of concrete: C25/30 (B25)
Please note the advice to the foundation plan.
Please inquire for current standards.
Detail Mastfoot steel arch + fixing post for climbing wall
Ground level
Also by usage of rubber
surfacing an overall
coverage of 40 cm has to
be considerd!
subsequently drilled
during installation
optional: ductwork
ca. Ø250mm l=800mm
scale 1:20

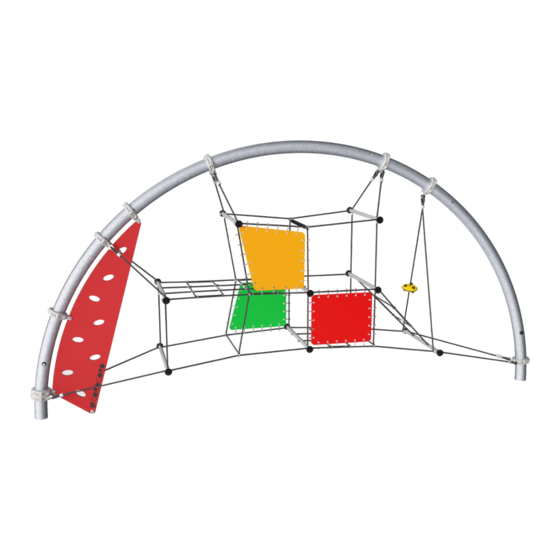

8220: PERFORMER ARCH
optional: ductwork
(for example made out
of PE)
scale 1:50
Fixing joint A
A842061-51
Fixing post
A842125-51
