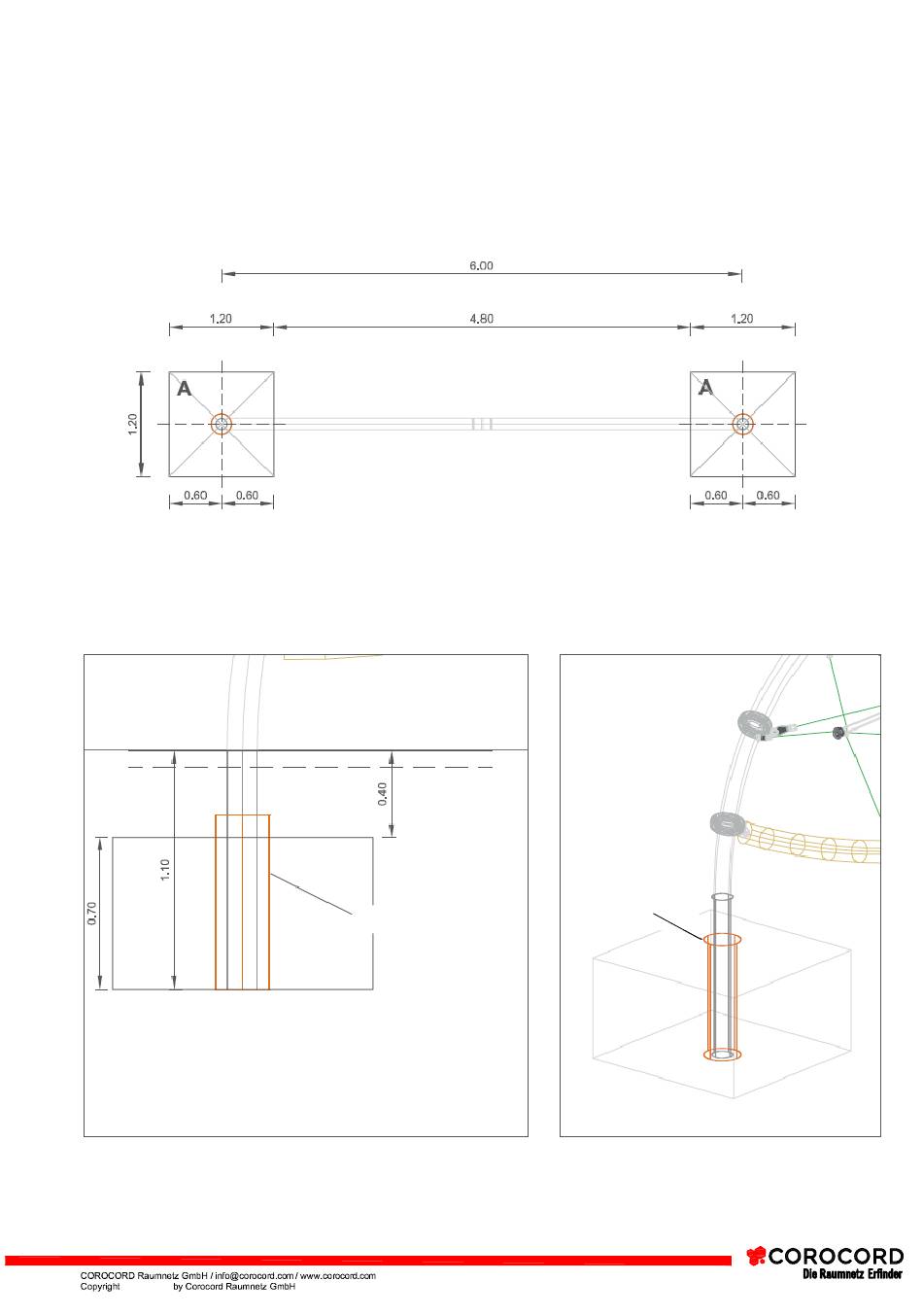

Foundation plan
Foundation A: 1,20 x 1,20 x 0,70m (2x)
Quality of concrete: C25/30 (B25)
Please note the advice to the foundation plan.
Please inquire for current standards.
Detail Mastfoot
O:8000_Bogengeräte\8230_DSCHUNGEL-BOGEN\04-02_tech. Zelchungen_Intern\Angebotslayout +
Fun plan_engl.dwg
Conceptual custom design - actual components may vary
28.03.2012
Ground level
Also by usage of rubber
surfacing an overall
coverage of 40 cm has to
be considerd!
optional: ductwork
ca. Ø250mm l=800mm
scale 1:20
8230: EXPLORER ARCH
optional: ductwork
(for example made out
of PE)
scale 1:50
