Installation
• This appliance can be installed as a built in unit only. The clearances shown in
the below drawing must be followed.
• Avoid damaging the product during installation, positioning of the appliance
requires two people in order to avoid injuries or damage to the appliance.
• Your appliance should not be located in direct sunlight or exposed to
continuous heat or extremes of temperature (e.g. next to a radiator or boiler). If
this is not feasible, then you should install an insulation plate between the
appliance and the adjacent heat source.
• You should check whether there is an electrical socket available, which will be
accessible after your appliance is installed.
• Place the appliance flatly and firmly on a solid base.
• Be sure to leave enough space for the opening of the door, to avoid damage to
the appliance or personal injury
• The aperture size has to be a minimum of (H)1775 x (W)560 x (D)555mm. The
cabinet in which the appliance is housed in must have a ventilation recess of
(W)540 x (D)50mm.
• The wooden cabinet the appliance is to be housed in must not be enclosed. The
back wooden panel of the cabinet must either be removed completely or cut
out in accordance with the diagram on page 12. This is to allow sufficient air
circulation to cool down the condenser unit for energy efficiency.

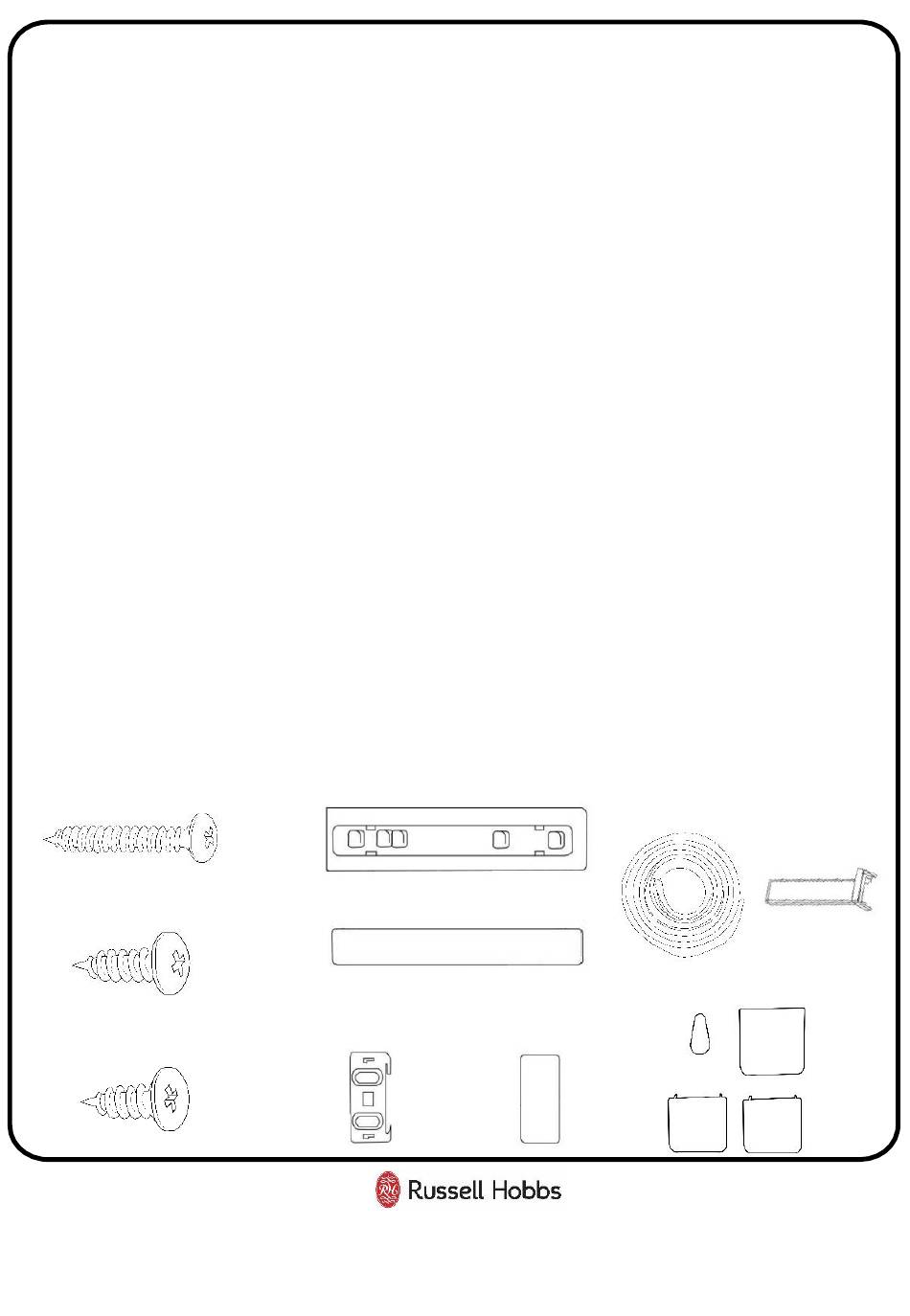

• The accessories that are required for installation are detailed below:
2 x Large Screws
8 x Screws (round head)
16 x Screws (flat head)
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm
4 x Door guide
4 x Door guide cover
4 x Door guide
4 x Door guide
holder
or visit us at www.productcare.co.uk
1 x Joint
holder cover
2 x hinge
cover
cover
Blanking covers

Advertisement

loading
Need help?

Need help?

Do you have a question about the RHLF1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Russell Hobbs RHLF1

  • Page 1 Installation • This appliance can be installed as a built in unit only. The clearances shown in the below drawing must be followed. • Avoid damaging the product during installation, positioning of the appliance requires two people in order to avoid injuries or damage to the appliance. •...
  • Page 2 Installation The aperture size has to be a minimum of (H)1775 x (W)560 x (D)555mm. The cabinet in which the appliance is housed in must have a ventilation recess of (W)540 x (D)50mm. For Customer Services & Spare Parts please call 0345 208 8750 Opening times: Monday - Friday 8am –...
  • Page 3 Installation The cabinet in which the appliance is housed in must have a ventilation recess of (W)540 x (D)50mm. Wooden back panel cut out (if applicable) Carefully push the appliance into the housing, ensuring that the cabinet doors are able to fully close. For Customer Services &...
  • Page 4 Installation Rollout the joint cover and on the side of the appliance without the hinges press it between the appliance and the inside of the cabinet wall (start from the bottom and work upwards). Open the door and push the side of the appliance without the hinges against the side of cabinet wall.
  • Page 5 Installation Apply blanking covers by clipping them in to place at the top metal plinth at the top of the appliance. Apply a blanking cover by clipping it in to place on the foot at the bottom of the appliance that does not hinge the freezer door. For Customer Services &...
  • Page 6 Installation – Door attachment 1. There are 4 packs that will have parts A,B,C and D (see the below), please separate the parts of each different pack A. Door guide B. Door guide holder C. Door guide cover D. Door guide holder cover 2.
  • Page 7 Installation – Door attachment 4. Open the appliance door and the cabinet door to 90°, insert the door guide holder (part B) on to the door guide (part A). Push the appliance door and the cabinet door together and mark 2 holes on the end of the appliance door as indicated in below (these may be pre-drilled).
  • Page 8 Installation – Door attachment 7. You will then have to repeat these steps at the bottom of the fridge door, please ensure you follow the below diagram when locating the door guide (part A) on the bottom of the fridge door. 8.
  • Page 9 Installation – Hinge cover 1. Loose the 2 screws from the middle hinge and adjust and fasten connecting bracket so it flush with the kitchen cabinet. Fix it in place with 2 round headed screws and screw the hinge back on to the appliance. Fastening connector 2.
