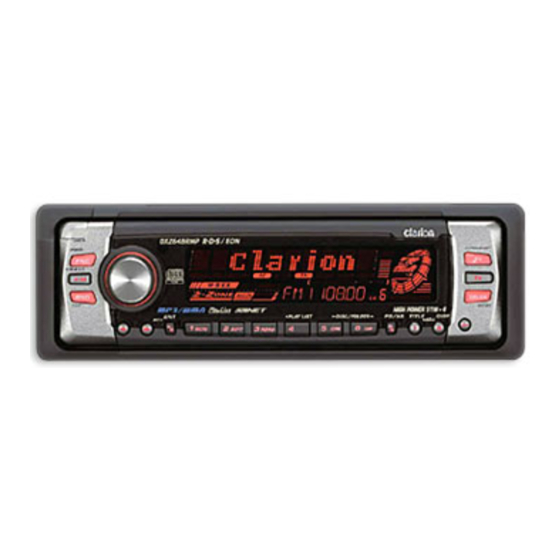

Clarion DXZ648RMP Owner's Manual
  1. Manuals
  2. Brands
  3. Clarion Manuals
  4. Car Receiver
  5. DXZ648RMP
  6. Owner's manual

Clarion DXZ648RMP Owner's Manual

Rds-eon fm/mw/lw radio cd/mp3/wma combination
Hide thumbs Also See for DXZ648RMP:
Table of Contents

Advertisement

Quick Links

Owner's manual /
Mode d'emploi
Bedienungsanleitung /
Gebruiksaanwijzing /
Bruksanvisning /
Manual de instruções
DXZ648RMP
RDS-EON FM / MW / LW RADIO CD / MP3 / WMA
COMBINATION
COMBINE RADIO FM/PO/GO RDS-EON-LECTEUR DE CD/
MP3/WMA
RDS-EON UKW/MW/LW RADIO CD/MP3/WMA
KOMBINATION
COMBINAZIONE DI RADIO RDS-EON FM/MW/LW E
LETTORE CD/MP3/WMA
RDS-EON FM/MW/LW RADIO CD/MP3/WMA COMBINATIE
COMBINACIÓN DE RADIO RDS-EON DE FM/MW/LW Y
REPRODUCTOR DE CD/MP3/WMA
KOMBINERAD FM/MV/LV-RADIO MED RDS-EON OCH CD/
MP3/WMA-SPELARE
COMBINAÇÃO DE CD/MP3/WMA COM RÁDIO FM/MW/LW
RDS-EON
Istruzioni per l'uso
Manual de instrucciones
•
•
•
•
•
•
•

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DXZ648RMP and is the answer not in the manual?

Questions and answers

Related Manuals for Clarion DXZ648RMP

Summary of Contents for Clarion DXZ648RMP

  • Page 1 Mode d’emploi Bedienungsanleitung / Istruzioni per l’uso Gebruiksaanwijzing / Manual de instrucciones Bruksanvisning / Manual de instruções DXZ648RMP RDS-EON FM / MW / LW RADIO CD / MP3 / WMA COMBINATION • COMBINE RADIO FM/PO/GO RDS-EON-LECTEUR DE CD/ MP3/WMA •...
  • Page 2 Thank you for purchasing this Clarion product. ∗ Please read this owner’s manual in its entirety before operating this equipment. ∗ After reading this manual, be sure to keep it in a handy place (e.g., glove compartment). ∗ Check the contents of the enclosed warranty card and keep it carefully with this manual.

  • Page 3: Table Of Contents

    LCD Screen In extreme cold, the screen movement may slow down and the screen may darken, but this is normal. The screen will recover when it returns to normal temperature. DXZ648RMP Contents 1. PRECAUTIONS ... 3 Flip Down Panel ... 3 Handling Compact Discs ...

  • Page 4: Flip Down Panel

    Observera: Vik ut denna sida för att kunna se figurerna över bilstereons framsida medan du läser de olika kapitlen. Nota: Certifique-se de abrir esta página e consulte os diagramas frontais conforme realiza a leitura de cada capítulo. DXZ648RMP 3. NOMENCLATURE Note: •...

  • Page 5: Dcp

    DCP is an extremely important part. Be careful not to damage it by press- ing on it with fingernails, screwdrivers, etc. Note: • If the DCP is dirty, wipe off the dirt with a soft, dry cloth only. DXZ648RMP...

  • Page 6: Remote Control

    • Do not short-circuit, disassemble or heat batteries. • Do not dispose of batteries into fire or flames. • Dispose of spent batteries properly. DXZ648RMP Receiver for remote control unit Operating range: 30˚ in all directions Signal transmitter...

  • Page 7: Functions Of Remote Control Unit Buttons

    MP3/WMA mode. Switches reception band. Moves preset channels up and down. No function. Preset scan. When pressed and held for 2 seconds or longer: Auto store. No function. Switches between TV and VTR. DXZ648RMP...

  • Page 8: Adjusting The Volume

    ∗ External equipment not connected with CeNET is not displayed. ∗ If AUX is set in AUX/TEL, AUX mode can be selected. DXZ648RMP Note:Be sure to read this chapter referring to the front diagrams of chapter “2. CONTROLS” on page 5 (unfold). Adjusting the volume 1.
  • Page 9 Å Å Î Î Î Î Î GAIN 0 ”. Å Å Å Å Å Î Î Î Î Î ”. Î Î Î Î Î FREQ 12k ”. Å Å Å Å Å Î Î Î Î Î DXZ648RMP...

  • Page 10: Listening To The Radio

    • CT data is not transmitted in some countries and by some broadcast stations. Also, in some areas, the CT may not display accurately. DXZ648RMP Radio Operations Listening to the radio 1. Press the [FNC] button and select the radio mode.
  • Page 11 2. When a desired station is tuned in, press the [P/A] button again to continue receiving that station. Note: • Be careful not to press and hold the [P/A] button for 2 seconds or longer, otherwise the auto store function is engaged and the unit starts storing stations. DXZ648RMP...

  • Page 12: Rds Operations

    ∗ This function only operates when the DAH923 or DAH913 DAB unit, sold separately, is connected. ∗ This factory default setting is “ON”. DXZ648RMP 1. Press and hold the [T] button for 1 second or longer to switch to the adjustment selection display.

  • Page 13: Rds Operations

    [a] button, it seeks moving down the frequencies. ∗ If no station with the selected PTY broadcast can be received, the unit returns to the previ- ous mode. DXZ648RMP ] button for 1...
  • Page 14 Landes M Oldies Oldies Folk M Folklore Document Feature DXZ648RMP 3. If you press and hold any one of the [DIRECT] buttons for 2 seconds or longer, the selected PTY is stored into that preset channel memory. PTY item SVENSKA...

  • Page 15: Precautions

    Personally constructed WMA files are used at your own responsibility. Precautions when creating MP3/ WMA disc ● Usable sampling rates and bit rates: 1. MP3: Sampling rate 11.025 kHz-48 kHz, Bit rate: 8 kbps-320 kbps / VBR 2. WMA: Bit rate 48 kbps-192 kbps DXZ648RMP...
  • Page 16 CD type or MP3/WMA type. The following indication appears in the title dis- play when switching the track type to be played. DXZ648RMP ● Display when CD type track is selected: ● Display when MP3/WMA type track is se- lected: 1.

  • Page 17: Displaying Cd Titles

    1. Press the [a] button to move back to the beginning of the current track. 2. Press the [a] button twice to move to the beginning of the previous track. CD/MP3/WMA Operations ] button to pause play. ] button DXZ648RMP...

  • Page 18: Scan Play

    The top function resets the CD player to the first track of the disc. Press the [BND] button to play the first track (track No. 1) on the disc. DXZ648RMP ∗ In case of MP3/WMA, the first track of a folder be- ing played will be returned.

  • Page 19: Random Play

    5 lists are recognized in the order in which they are written. • When writing to a CD-R/RW, etc., turn off the Disc At Once function. • When adding a play list, it is recommended to write it in the “Root” folder. DXZ648RMP...

  • Page 20: Message Display

    Capital letters ➜ Small letters ➜ Numbers/ Symbols ➜ Umlaut ➜ Capital letters… 6. Turning the [ROTARY] knob to select the desired character. DXZ648RMP 7. Repeat step 4 to 6 to enter up to 30 characters for message. 8. Press and hold the [...
  • Page 21 ∗ The factory default setting is “AUX MID”. 1. Press and hold the [T] button for 1 second or longer to switch to the adjustment selection display. 2. Press the [a] or [d] button and select “AUX SENS”. DXZ648RMP...
  • Page 22 Note: • If connecting a hands-free kit, please ensure the setting is ON to receive the telephone audio through the system. DXZ648RMP ● ON: You can listen to your telephone calls from the speakers connected to this unit. ∗ When listening to your calls on your car speakers, you can adjust the volume by turn- ing the [ROTARY] knob.

  • Page 23: Entering Titles

    50 titles 4. Press the [BND] button. 20 titles 5. Press and hold the [ onds or longer to clear the title and cancel title input mode. 100 titles 100 titles 50 titles ] button for 2 sec- DXZ648RMP...

  • Page 24: Operations Of Accessories

    User title (disc) ➜ CD-text title (disc) ➜ Artist name ➜ CD-text title (track) ➜ User title (disc)… DXZ648RMP Notes: • If the CD playing is not a CD-text CD or no user title has been input, “NO TITLE” appears in the display.
  • Page 25 “DISC” and “RDM” light in the display and disc random play starts. 2. To cancel disc random play, press the [RDM] button again. “DISC” and “RDM” go off from the display and normal play resumes from the current track. DXZ648RMP...

  • Page 26: Watching A Video

    In the quick tuning mode, you can quickly tune the desired frequency. DXZ648RMP 1. Press the [BND] button and select the de- sired band (TV1 or TV2). ∗ If “MANU” is not lit in the display, press and hold the [BND] button for 1 second or longer.

  • Page 27: Digital Radio / Dab Operations

    “MANU” lights up in the display. 3. Press the [a] or [d] button to select a sta- tion. ∗ If no operation is performed for more than 7 seconds, manual tuning is cancelled and the display returns to the previous mode. DXZ648RMP...

  • Page 28: Programme Scan

    Note: • The interrupt programme (PTY or INFO) cannot be written into a manual memory. DXZ648RMP Recalling a preset programme 1. Press the [FNC] button to select the DAB mode. 2. Press the [BND] button. Each time you press...
  • Page 29 “ALARM” appears in the display and the emer- gency broadcast can be heard. ∗ For details on “Emergency broadcast”, refer to the section “RDS operation” of each owner’s manual. ●Cancelling an emergency broadcast DXZ648RMP...

  • Page 30: Digital Radio/Dab Operations

    [ROTARY] knob clockwise or counter- clockwise to set the volume to a desired level (0 to 33). ∗ When the TA, INFO, ALARM or PTY interrupt ends, the volume returns to the level it had before the in- terrupt. DXZ648RMP...

  • Page 31: In Case Of Difficulty

    Write MP3/WMA files onto the disc properly. Use MP3/WMA files encoded properly. Use ISO9660 level 1, 2 or JOLIET or Romeo file system. Clean the disc with a soft cloth. Replace with a disc with no scratches. Use MP3/WMA files encoded properly. Measure Reset button DXZ648RMP...
  • Page 32 File system is not correct. Play list play is File name or extension is not not performed. correct. DXZ648RMP Cause Let dry for about 1 hour with the power on. Use ISO9660 level 1, 2 or JOLIET or Romeo file system.

  • Page 33: Error Displays

    1. Turn down sound volume. Function can also be restored by turning the power off and on again. (Speaker volume is reduced automatically when the speaker protection circuit oper- ates). 2. If the sound is muted again, consult our service department. Measure DXZ648RMP...

  • Page 34: Specifications

    Dynamic Range: 95 dB (1 kHz) Distortion: 0.01% Note: • Specifications and design are subject to change without notice for further improvement. DXZ648RMP General Output Power: 4 ✕ 27 W (DIN 45324, +B=14.4V) Power Supply Voltage: 14.4 V DC (10.8 to 15.6 V allowable),...
