Owner's manual
DXZ676USB

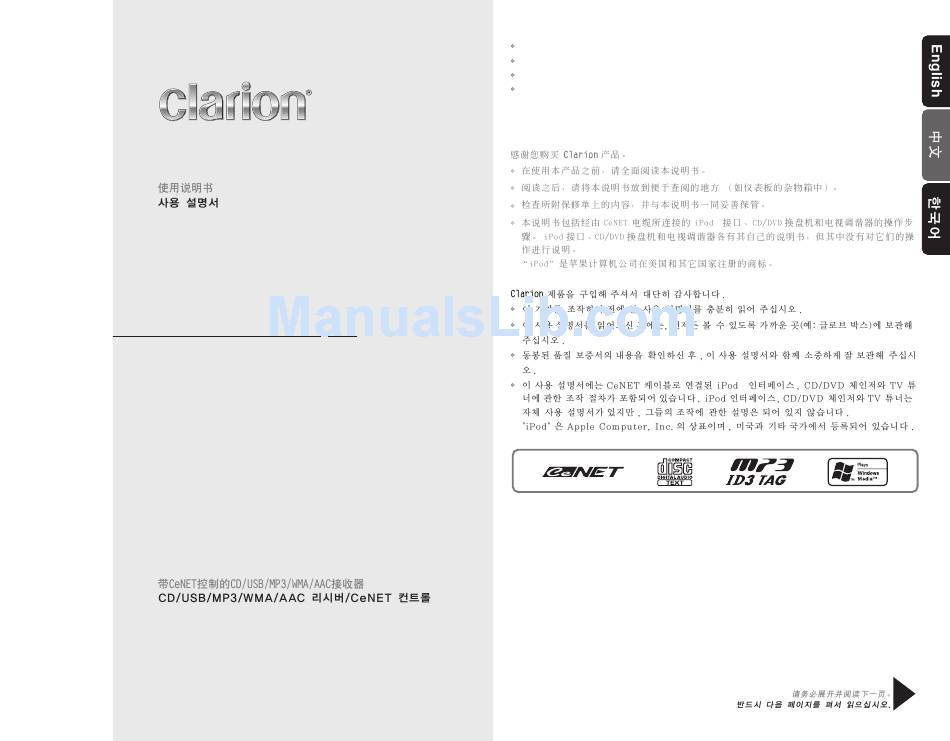

CD/USB/MP3/WMA/AAC RECEIVER WITH CeNET CONTROL
Thank you for purchasing this Clarion product.
Please read this owner's manual in its entirety before operating this equipment.
After reading this manual, be sure to keep it in a handy place (e.g., glove compartment).
Check the contents of the enclosed warranty card and keep it carefully with this manual.
This manual includes the operating procedures of the iPod
and TV tuner connected via the CeNET cable. The iPod interface, CD/DVD changer and
TV tuner have their own manuals, but no explanations for operating them are described.
"iPod" is a trademark of Apple Computer, Inc., registered in the U.S. and other countries.
®
interface, CD/DVD changer
®
®
Be sure to unfold and read the next page.
DXZ676USB
i

Advertisement

Table of Contents
loading

Related Manuals for Clarion DXZ676USB

Summary of Contents for Clarion DXZ676USB

  • Page 1 Thank you for purchasing this Clarion product. Please read this owner’s manual in its entirety before operating this equipment. After reading this manual, be sure to keep it in a handy place (e.g., glove compartment). Check the contents of the enclosed warranty card and keep it carefully with this manual.

  • Page 2: Controls

    [ ISR ] ] (MUTE) [ IR RECEIVER ] [ TITLE ] With the MOTORIZED FACE opened / [CD SLOT] Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter. DXZ676USB DXZ676USB...

  • Page 3: Table Of Contents

    TV Operations ..........................31 8. IN CASE OF DIFFICULTY......................32 9. ERROR DISPLAYS ........................34 10. SPECIFICATIONS ......................... 35 1. FEATURES • MP3/WMA/iTunes AAC Compatible with ID3-TAG display • “SLIDETRAK” for dynamic operation • Full dot display & Motorised Sloping Console DXZ676USB...

  • Page 4: Precautions

    FACE does not close. 5. To avoid scratching the compact disk, keep 2. Before the MOTORIZED FACE closes, there the CD level when inserting or removing may be a braking sound from the safety them. mechanism. This is normal. DXZ676USB...

  • Page 5: Handling Compact Discs

    • Do not use commercially available CD protection sheets or discs equipped with stabilizers, etc. These may damage the disc or cause breakdown of the internal mechanism. DXZ676USB...

  • Page 6: Nomenclature

    • Push the button upward or downward to ] button adjust the volume. • Play or pause a track while in the CD/MP3/ [CD SLOT] WMA/AAC mode. • CD insertion slot. • Press the button to enter the preset memory mode (radio). • Confirm various settings. DXZ676USB...

  • Page 7: Display Items

    : Sound restorer indication : Auto store : Stereo indication (radio only) LCD Screen In extreme cold, the screen movement may slow down and the screen may darken, but this is normal. The screen will recover when it returns to normal temperature. DXZ676USB...

  • Page 8: Dcp

    FACE closes immediately. Be careful not with fingernails, screwdrivers, etc. to get your fingers caught. Note: • If the DCP is dirty, wipe off the dirt with a soft, dry cloth only. DXZ676USB...

  • Page 9: Remote Control

    • When replacing the battery, insert properly, with +/– polarities oriented correctly. • Do not subject battery to heat, or dispose of in fire or water. Do not attempt to disassemble the battery. • Dispose of used batteries properly. DXZ676USB...

  • Page 10: Functions Of Remote Control Unit Buttons

    • Press to move the tracks up and down. [DISP] button • Press and hold the button for 1 second or • Press to alternate among action display, title longer to perform fast-forward/fast-backward. display and Clock time display, etc. DXZ676USB...
  • Page 11 • Press and hold the button for 1 second or longer to perform disc repeat play. [RDM] button • Press to perform random play. • Press and hold the button for 1 second or longer to perform disc random play. DXZ676USB...

  • Page 12: Operations

    1. Press the [SRC] button to change the operation mode. 2. Each time you press the [SRC] button, the operation mode changes in the following order: Radio CD/MP3/WMA/AAC (iPod BB) (CD changer) (DVD changer) (TV) Radio... External equipment not connected with CeNET is not displayed. DXZ676USB...
  • Page 13 You can adjust the volume output from the unit’s subwoofer output terminal. 2-1. Select the “S-W VOLUME”. 3-1. Push the [P.CH] button upward or downward to change the output volume. The factory default setting is “0”. (Setting range: +5 to –5) DXZ676USB...
  • Page 14 2-1. Select “BASS”. as possible. 2-2. Press the [ ] button. Making the frequency characteristics as flat as possible is called “Compensation”. 2-3. Push the [SEEK PANEL] leftward or rightward and select from: “BASS GAIN” “BASS FREQ” “BASS Q” DXZ676USB...
  • Page 15 (Adjustment range: R12 to F12) order: “OFF” “1” “2” “3” Set this adjustment in accordance with the music source used. OFF: For music sources compressed at high bit rate 1: For music sources compressed for high quality at low bit rate DXZ676USB...

  • Page 16: Radio Operations

    (FM or AM). If “MANU” is not lit in the display, press and hold the [MENU] button for 1 second or longer. “MANU” is lit in the display and manual tuning is now available. 2. Tune into a station. DXZ676USB...

  • Page 17: Auto Store

    1. Press the [OPTION] button. 2. Push the [SEEK PANEL] leftward or rightward to select “PRESET SCN”. 3. Press the [ ] button. When a desired station is tuned in, press the ] button again to continue receiving that station. DXZ676USB...

  • Page 18: Cd/Mp3/Wma/Aac Operations

    1. A disc with a folder having more than 8 • AAC files composed with the following hierarchical levels will be impossible. conditions can be played: - AAC files encoded with iTunes. - iTunes Ver. 7.0 or earlier. - File extension “.m4a” (“.M4A”) DXZ676USB...
  • Page 19 If there is no disc loaded, the indication “NO the power to the unit and start playing the disc DISC” appears in the title display. automatically when the disc is inserted even if the power is not turned on. DXZ676USB...

  • Page 20: Loading A Cd

    Notes: 2. To select a track, push the [SEEK PANEL] • If the CD playing is not a CD-text CD or no user leftward or rightward. title has been input, “ u NO TITLE” appears in the display. DXZ676USB...
  • Page 21 To cancel the trick play 2. Push the [SEEK PANEL] leftward or 2. Push the [SEEK PANEL] leftward or rightward to select “SCN”. rightward to select “TRICK OFF”. 3. Press the [ ] button to cancel the trick play. DXZ676USB...

  • Page 22: Operations Common To Each Mode

    3-1. Press the [ ] button. canceled. 3-2. Press and hold the [MENU] button for 1 second or longer to clear the old message. 3-3. Push the [SEEK PANEL] leftward or rightward to move the cursor. DXZ676USB...
  • Page 23 Setting the dimmer control You can set the dimmer control “HIGH”, “MID”, “LOW” or “OFF”. The factory default setting is “MID”. 2-1. Select “DIMMER”. 3-1. Push the [P.CH] button upward or downward to select “HIGH”, “MID”, “LOW” or “OFF”. DXZ676USB...
  • Page 24 Performing a system check 2-1. Select “SYSTEM CHECK”. 3-1. Press and hold the [ ] button for 1 second or longer. “SYSTEM CHECK” appears in the display, then the unit returns to the previous operation mode. DXZ676USB...

  • Page 25: Entering Titles

    8. Push the [P.CH] button upward or downward to select the desired character. 9. Repeat steps 6 to 8 to enter up to 10 characters for the title. 10.Press and hold the [ ] button for 2 seconds or longer to store the title into memory. DXZ676USB...

  • Page 26: Operations Of Accessories

    - When the device is subjected to static electricity or electric noise. • Do not leave a USB memory device unattended in an automobile. Exposure to direct sunlight or high temperatures may cause deformation or other malfunction of the USB memory device. DXZ676USB...
  • Page 27 When a USB memory device is connected the USB mode will be displayed. When a USB memory device is disconnected and then reconnected, playback will begin from the beginning of the USB memory device. DXZ676USB...

  • Page 28: Ipod Bb Operations

    (Corresponds to “Shuffle (Songs)” command on iPod.) 2. Push the [SEEK PANEL] leftward or rightward to select “RDM”. 3. Push the [P.CH] button upward or downward to select “ALL”, and then press the ] button to perform all random play. DXZ676USB...
  • Page 29 [SEEK PANEL] leftward will return the display to the currently playing folder name display. 5. Push the [P.CH] button upward or downward to select a track within a category. 6. Push the ] rightward to play [SEEK PANEL the desired track. DXZ676USB...

  • Page 30: Cd Changer Operations

    CD changer. “NO DISC” appears in the display. Note: • Some CDs recorded in CD-R/CD-RW mode may not be usable. CAUTION CD-ROM discs cannot be played from every CD changer, it’s depended on the model. DXZ676USB...
  • Page 31 2. Push the [SEEK PANEL] leftward or rightward to select “RPT”. 3. Push the [P.CH] button upward or downward to select “ALL”, and then press the ] button. “DISC RPT” appears in the display and disc repeat play starts. DXZ676USB...

  • Page 32: Dvd Changer Operations

    For fullest functionality, use the remote Random play control unit provided with your DVD changer See “CD/MP3/WMA/AAC Operations” (page 16- to control its operations. For details, consult 19) and “CD Changer Operations” (page 28-29) the Owner’s Manual provided with your DVD for details. changer. DXZ676USB...

  • Page 33: Tv Operations

    2. Push the [SEEK PANEL] leftward or rightward to select “TV/VTR”. 3. Press the [ ] button to enter the VTR mode. 4. To return to the TV broadcast, press the [OPTION] button. 5. Press the [ ] button to return to the TV mode. DXZ676USB...

  • Page 34: In Case Of Difficulty

    Let dry for about 1 hour with the power on. directly after the internal lens when the car power is turned is parked in a humid place. Wrong filename File system is not correct. Use ISO9660 level 1, 2 or JOLIET or Romeo or APPLE ISO file system. DXZ676USB...
  • Page 35 The USB memory devices Try reversing the connection direction of the USB memory device. has been inserted improperly. device (usually the brand name surface should be facing left). The USB connector is Replace with a new USB memory device. broken. DXZ676USB...

  • Page 36: Error Displays

    [SRC] button once again to turn power ON. If an error display other than the ones described above appears, press the reset button. If the problem persists, turn off the power and consult your store of purchase. DXZ676USB...

  • Page 37: Specifications

    Dimensions / Source unit: Harmonic Distortion: 0.01% 178 (Width) 50 (Height) 156 (Depth) mm Dimensions / Remote control unit: 44 (Width) 113 (Height) 11 (Depth) mm Note: • Specifications and design are subject to change without notice for further improvement. DXZ676USB...
  • Page 38 Clarion Co., Ltd. PE-2901K All Rights Reserved. Copyright © 2006: Clarion Co., Ltd. 2006/12 280-8514-00...
