Summary of Contents for Clarion DXZ646MP

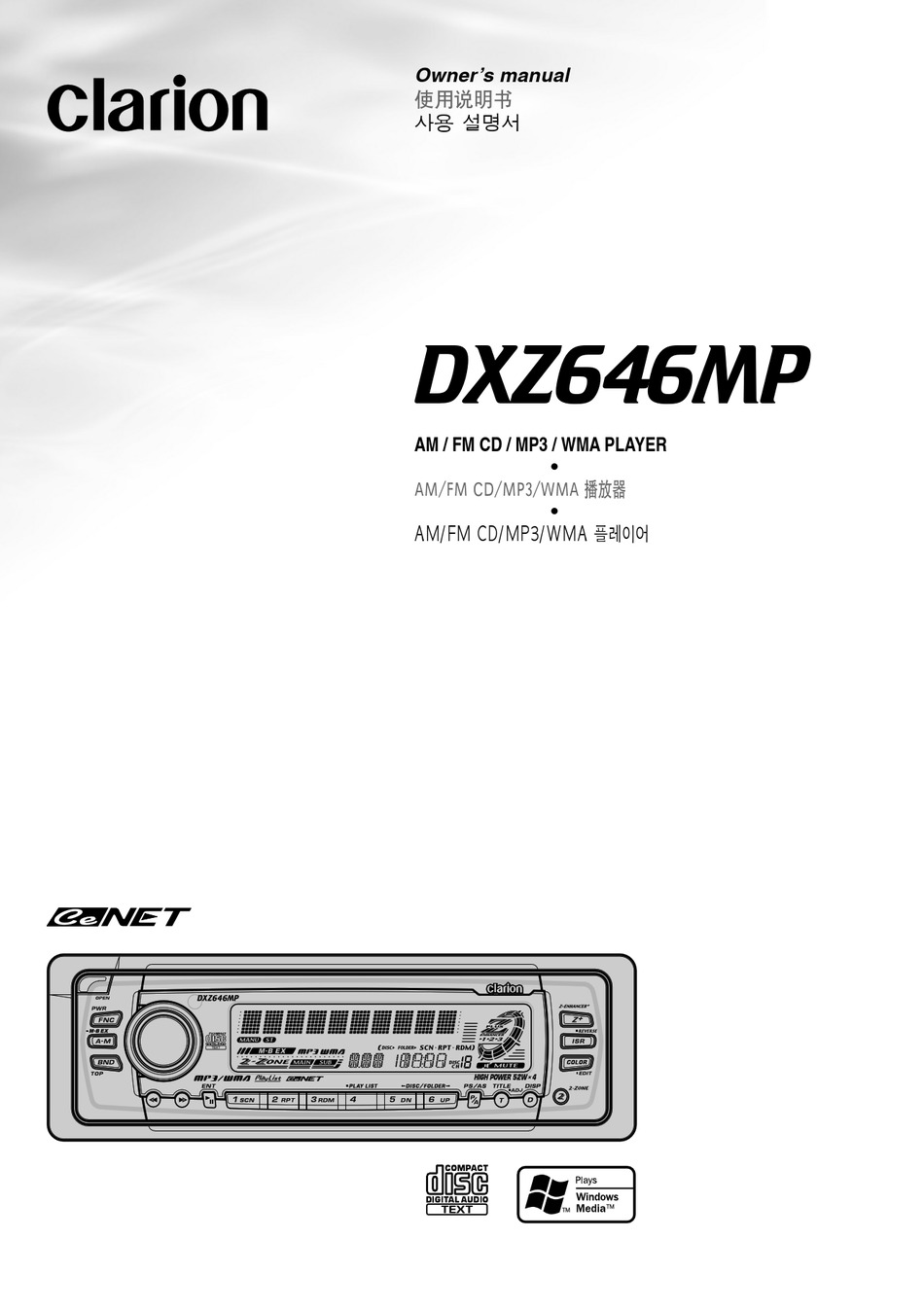

  • Page 1 Owner’s manual !" 사용 설명서 DXZ646MP AM / FM CD / MP3 / WMA PLAYER • • AM/FM CD/MP3/WMA 플레이어...
  • Page 2: Table Of Contents

    Thank you for purchasing this Clarion product. ∗ Please read this owner’s manual in its entirety before operating this equipment. ∗ After reading this manual, be sure to keep it in a handy place (e.g., glove compartment). ∗ Check the contents of the enclosed warranty card and keep it carefully with this manual.
  • Page 3: Precautions

    If you try to play such a compact disc, you may not be able to get it back out of the CD player or it may damage the CD player. ! " # $ % & ' ( ! "...
  • Page 4: Major Button Operations When External Equipment Is Connected To This Unit

    Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter. 注意:请务必打开此页,并在阅读每一章节时参照上面的正视图。 주 : 이 페이지를 펼쳐두고 , 각 장을 읽을 때 전면 그림을 참조하십시오 . DXZ646MP 4. NOMENCLATURE Note: • Be sure to read this chapter referring to the front diagrams of chapter “3. CONTROLS” on page 5 (unfold).
  • Page 5: Dcp

    DCP is an extremely important part. Be careful not to damage it by press- ing on it with fingernails, screwdrivers, etc. Note: • If the DCP is dirty, wipe off the dirt with a soft, dry cloth only. DXZ646MP...
  • Page 6: Remote Control

    • Do not short-circuit, disassemble or heat batteries. • Do not dispose of batteries into fire or flames. • Dispose of spent batteries properly. DXZ646MP Receiver for remote control unit Operating range: 30˚ in all directions Signal transmitter...
  • Page 7: Functions Of Remote Control Unit Buttons

    Disc random play. folder Random play while in the MP3/WMA mode. Switches reception band. Moves preset channels up and down. No function. Preset scan. When pressed and held for 2 seconds: Auto store. No function. Switches between TV and VTR. DXZ646MP...
  • Page 8: Operations

    ➜ AUX mode ➜ Radio mode... ∗ External equipment not connected with CeNET is not displayed. DXZ646MP Note:Be sure to read this chapter referring to the front diagrams of chapter “3. CONTROLS” on page 5 (unfold). Adjusting the volume 1.
  • Page 9: Adjusting The Tone

    Î Î Î Î Î ”. Å Å Å Å Å Î Î Î Î Î ”. Å Å Å Å Î Î Î Î Å Î GAIN 0 ”. Å Å Å Å Å Î Î Î Î Î DXZ646MP...
  • Page 10: Radio Operations

    TEND effect. “M-B EX” lights in the display. 2. Press and hold the [A-M] button for 1 second or longer to turn off the MAGNA BASS EX- TEND effect. “M-B EX” goes off from the display. DXZ646MP Radio Operations FREQ 12K ”. Listening to the radio Å...
  • Page 11: Manual Memory

    ●Recalling a station with ISR In any mode, press the [ISR] button to turn on the radio function and tune the selected radio station. “ISR” appears in the display. Press the [ISR] button again to return to the previous mode. DXZ646MP...
  • Page 12: Features

    If you add a file extension other than specified or forget to add the file exten- sion , the file cannot be played. DXZ646MP 2. Files without MP3/WMA data will not play. The indication “– –:– –” appears in the play time display if you attempt to play files with- out MP3/WMA data.
  • Page 13: Pausing Play

    PANEL. Pausing play 1. Press the [ “PAUSE” appears in the display. 2. To resume CD play, press the [ again. CD/MP3/WMA Operations CD/MP3/WMA (CD changer) (DVD changer) (TV) mark and CAUTION ] button to pause play. ] button DXZ646MP...
  • Page 14: Folder Select

    2. To select a track, press the [a] or [d] but- ton. Top function The top function resets the CD player to the first track of the disc. Press the [BND] button to play the first track (track No. 1) on the disc.
  • Page 15: Random Play

    2. To cancel folder random play, press the [RDM] button again. The play status indications such as “FOLDER” and “RDM” disappear from the display and normal play resumes from the track currently being played. DXZ646MP...
  • Page 16: Making A Play List

    • When writing to a CD-R/RW, etc., turn off the Disc At Once function. • When adding a play list, it is recommended to write it in the “Root” folder. DXZ646MP Different pieces of music heard by plural listeners (2-ZONE function)
  • Page 17 Press and hold the [ISR] button for 1 second or longer to counterchange the sources of the MAIN and SUB zones. “REVERSE” is displayed for 2 seconds on the dis- play. SUB zone Radio playback Radio playback External equipment (CD changer) Radio playback DXZ646MP...
  • Page 18: Operations Common To Each Mode

    Capital letters ➜ Small letters ➜ Numbers and Symbols ➜ Umlaut ➜ Capital letters… 7. Turn the [ROTARY] knob to select the de- DXZ646MP sired character. 8. Repeat step 5 to 7 to enter up to 30 charac- ters for message.
  • Page 19: Adjusting The Display Contrast

    2. Press the [a] or [d] button to select “AUX SENS”. 3. Turn the [ROTARY] knob clockwise or coun- terclockwise as needed and select from “HIGH”, “MID” or “LOW”. 4. Press the [T] button to return to the previous mode. DXZ646MP...
  • Page 20: Setting The Clock

    2. Turn the [ROTARY] knob clockwise or coun- terclockwise to select from 0 to 8. 3. Press and hold the [ ] button for 2 sec- onds or longer to store the color in memory and cancel setting mode. DXZ646MP COLOR MANDARIN ORANGE AMBER YELLOW...
  • Page 21: Aux Function

    ∗ This function is not compatible with all cellular tele- phones. Contact your local authorized Clarion dealer for information on proper installation and compatibility. AUX function This system has an external input jack so you can listen to sounds and music from external devices connected to this unit.
  • Page 22: Operations Of Accessories

    User title (disc) ➜ CD-text title (disc) ➜ Artist name ➜ CD-text title (track) ➜ User title (disc)… DXZ646MP Notes: • If the CD playing is not a CD-text CD or no user title has been input, “NO TITLE” appears in the display.
  • Page 23: Scan Play

    “DISC” and “RDM” light in the display and disc random play starts. 2. To cancel disc random play, press the [RDM] button again. “DISC” and “RDM” go off from the display and normal play resumes from the current track. DXZ646MP...
  • Page 24: Tv Operations

    Press the [d] button to automatically tune up the frequency band to the next available TV station; press the [a] button to automatically tune down. DXZ646MP Manual tuning There are 2 ways available: Quick tuning and step tuning.
  • Page 25: Setting The Tv Diver

    3. Turn the [ROTARY] knob clockwise to set to “ON” or counterclockwise to set to “OFF”. ● ON: Sets the diver setting to ON. ● OFF: Sets the diver setting to OFF. 4. Press the [T] button to return to the previous mode. DXZ646MP...
  • Page 26: In Case Of Difficulty

    File system is not correct. Play list play is File name or extension is not not performed. correct. DXZ646MP Cause Replace with a fuse of the same amperage. If the fuse blows again, consult your store of purchase. Consult your store of purchase.
  • Page 27: Error Displays

    1. Turn down sound volume. Function can also be restored by turning the power off and on again. (Speaker volume is reduced automatically when the speaker protection circuit oper- ates). 2. If the sound is muted again, consult our service department. Measure DXZ646MP...
  • Page 28: Specifications

    95 dB Harmonic Distortion: 0.01% Note: • Specifications and design are subject to change without notice for further improvement. DXZ646MP Audio Maximum Power Output: 208 W (52 W ✕ 4 ch) Continuous Average Power Output: 17 W ✕ 4, into 4 Ω, 20 Hz to 20 kHz, 1%THD...
