Clarion DXZ675USB Owner's Manual
  1. Manuals
  2. Brands
  3. Clarion Manuals
  4. Car Receiver
  5. DXZ675USB
  6. Owner's manual
Clarion DXZ675USB Owner's Manual

Clarion DXZ675USB Owner's Manual

Cd/usb/mp3/wma/aac receiver with cenet control
Hide thumbs
Table of Contents

Advertisement

Quick Links

Owner's manual
Mode d'emploi
Manual de instrucciones
DXZ675USB
CD/USB/MP3/WMA/AAC RECEIVER WITH CeNET CONTROL
AUTORADIO CD/USB/MP3/WMA / AVEC COMMANDE CeNET
RECEPTOR DE CD/USB/MP3/WMA/AAC CON CONTROL CeNET
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to consult the dealer or an
experienced radio/TV technician for help.
Cet appareil a été testé et jugé conforme aux limites des appareils numériques de Classe B, aux
termes de la Section 15 des Règlements FCC.
Ces limites ont pour but d'assurer une protection raisonnable contre les interférences parasites
dans une installation résidentielle.
Cet appareil engendre, utilise et peut émettre une énergie radioélectrique et, s'il n'est pas installé
et utilisé en stricte conformité avec ces instructions, il peut provoquer des interférences parasites
sur les liaisons radiophoniques. Ceci ne garantit par pour autant qu'une installation particulière ne
provoquera aucune interférence.
Si l'appareil engendre des interférences sur la réception des ondes radio ou de télévision, ce qui
peut être vérifié en mettant l'appareil hors tension puis sous tension, l'utilisateur est invité à
consulter son revendeur ou un technicien exprimenté en radio/télévision pour lui demander conseil.
Este equipo ha sido probado y se ha comprobado que cumple con los límites de un dispositivo
digital de clase B, según lo indicado en la Parte 15 de las Normas de FCC.
Estos límites se han establecido para ofrecer una protección razonable contra interferencias
perjudiciales en instalaciones residenciales.
Este equipo genera, emplea, y puede radiar energía de radiofrecuencia y, si no se instala y emplea
de acuerdo con las instrucciones, puede causar interferencias perjudiciales en las
radiocomunicaciones. Sin embargo, no se garantiza que las interferencias no ocurran en una
instalación en particular.
Si este equipo causa interferencias perjudiciales en la recepción de radio o de televisión, lo cual
podrá determinarse conectando y desconectando la alimentación del equipo, se aconseja al
usuario que consulte al abastecedor o que pida ayuda a un técnico en radio/televisión
experimentado.
Veuillez déplier et vous référer à la page suivante.
Cerciórese de desplegar y de leer la página siguiente.

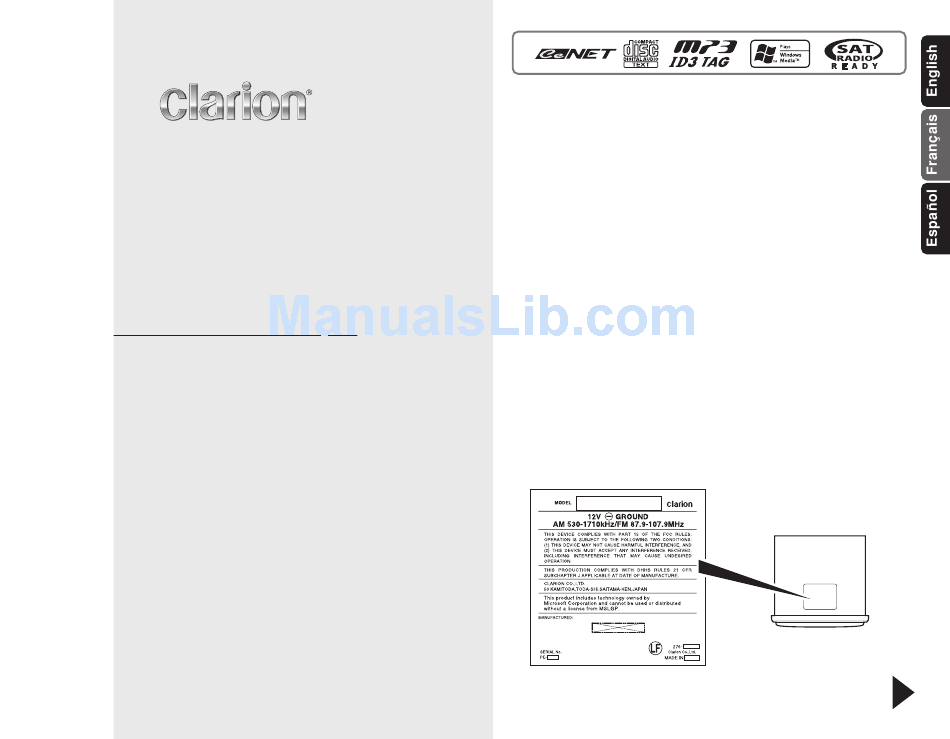

Bottom View of Source Unit
Fond de l'appareil pilote
Vista inferior de la unidad fuente
Be sure to unfold and read the next page.
DXZ675USB
i
