2015.03.20

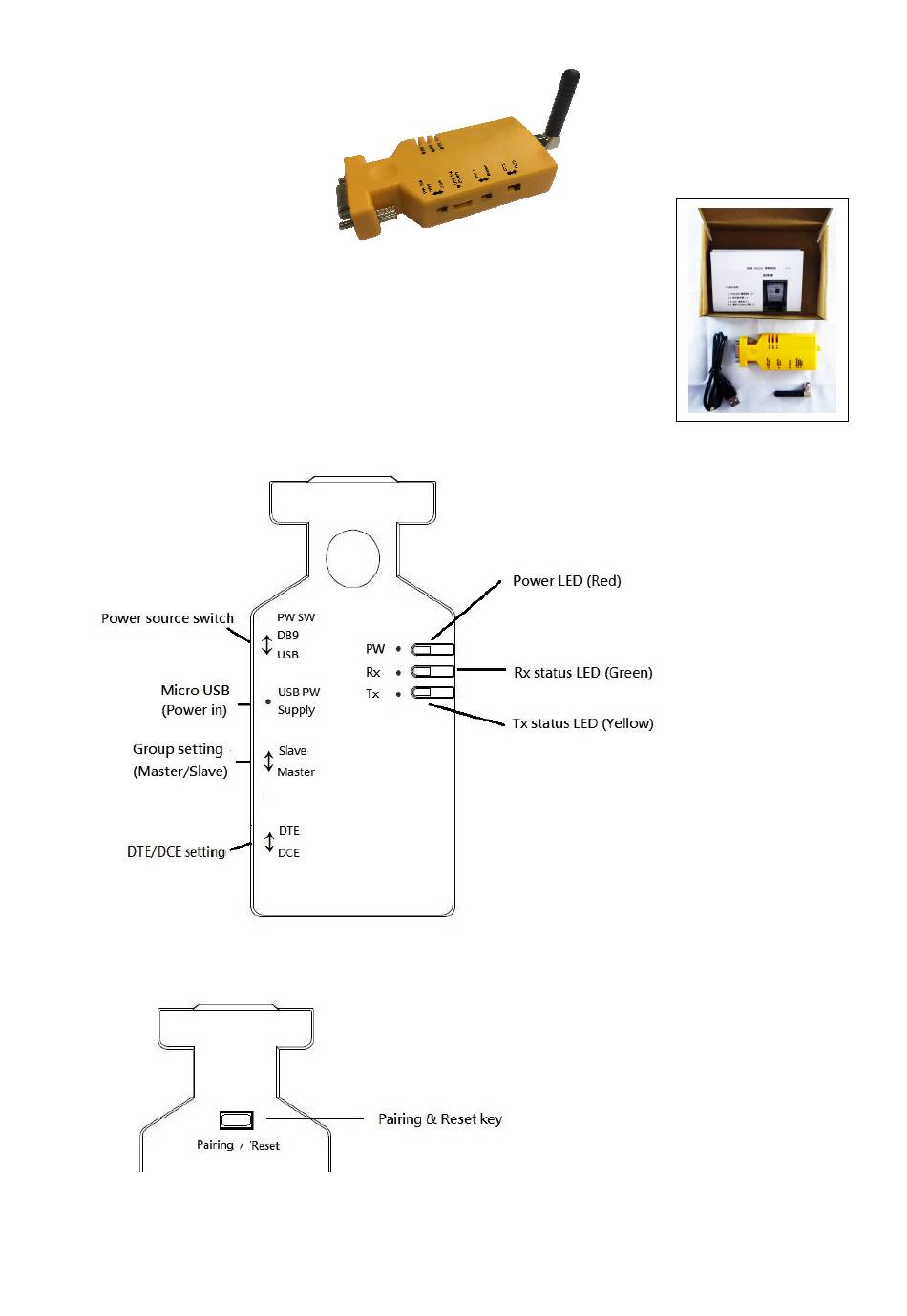

1. Packing Contents:

1.1 RS-232 adapter x 1
1.2 User manual x 1
1.3 USB Cable x 1
1.4 Antenna x 1

2. Profile:

2.1 Top view
2.2 Rear view:

3. Quick guide

3.1 Using the USB cable provided in the package, plug the mini USB connector into the
RS-232 adapter then connect it to the power adapter with USB or PC.
3.2 If properly connected to the power supply at this time, on behalf of the power LED
(red) will light up.
UHF 433 MHz RS-232 Adapter
1
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS-232 and is the answer not in the manual?

Questions and answers

Related Manuals for UCONNECT INTERNATIONAL RS-232

Summary of Contents for UCONNECT INTERNATIONAL RS-232

  • Page 1 3.1 Using the USB cable provided in the package, plug the mini USB connector into the RS-232 adapter then connect it to the power adapter with USB or PC. 3.2 If properly connected to the power supply at this time, on behalf of the power LED...
  • Page 2 2015.03.20 V1.0 3.3 Check the RS-232 setting on 2 sides if they both have the following values: Baud rate: 115200 bps Data bit: 8 Parity: Master or Slave Stop bit: 1 If not, please modify the setting by using hyper terminal software and the setup command via COM port.
  • Page 3 Support API to setting Baud Rate Hopping Frequency: 433.3MHz, 433.6MHz, 434MHz, 3 Chanel External 433MHz Dipole Antenna through SMA connector Support RS-232 RF repeater & extender Support DTE / DCE switching Support one-key to reset 6. Configuration API command via UART:...
