Datasheet & Quick Reference, S2B2232FIV2 / S2B2232FEV2
LED:
Link: Blue
PWR/Data: Red
Package Contents:
 RS-232 adapter x 1
 User manual x 1
 USB Cable x 1
 Di-pole antenna (S2B2232FEV2 only)
www.usconverters.com
Serial RS232 Bluetooth v2.1 Adapter
Datasheet & Quick Reference for S2B2232FIV2 / S2B2232FEV2
Firmware V8.0.0 and up

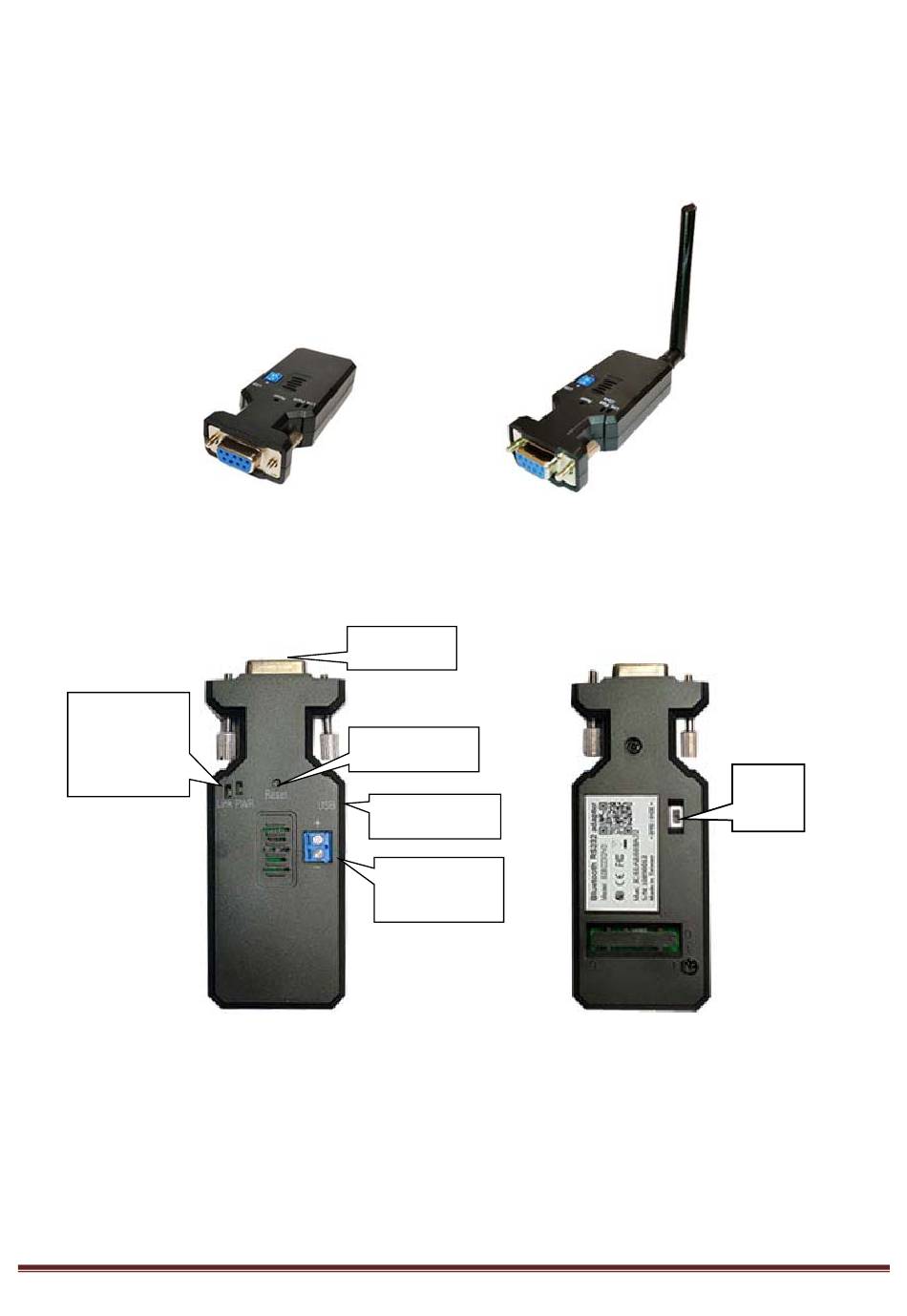

S2B2232FIV2
Internal chip antenna
DB9 (Female)
Reset to Default
S2B2232FEV2
External di-pole antenna
Mini USB (Power)
▲ + (5 - 36 VDC)
▼ GND
v3.1
▲ DCE
▼ DTE
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the S2B2232FIV2 and is the answer not in the manual?

Questions and answers

Related Manuals for UCONNECT INTERNATIONAL S2B2232FIV2

Summary of Contents for UCONNECT INTERNATIONAL S2B2232FIV2

  • Page 1 Datasheet & Quick Reference, S2B2232FIV2 / S2B2232FEV2 v3.1 Serial RS232 Bluetooth v2.1 Adapter Datasheet & Quick Reference for S2B2232FIV2 / S2B2232FEV2 Firmware V8.0.0 and up S2B2232FEV2 S2B2232FIV2 External di-pole antenna Internal chip antenna DB9 (Female) LED: Link: Blue Reset to Default PWR/Data: Red ▲...

  • Page 2: Specifications

    Datasheet & Quick Reference, S2B2232FIV2 / S2B2232FEV2 v3.1 SPECIFICATIONS (internal chip antenna) S2B2232FIV2 Part number (external di-pole antenna) S2B2232FEV2 Windows 11, Windows 10, Windows 8.1, Windows 8, Windows 7, Vista, XP, 2000, ME, 98, Operating systems Linux, Mac, Android Interface type...
  • Page 3 Datasheet & Quick Reference, S2B2232FIV2 / S2B2232FEV2 v3.1 Antenna S2B2232FEV2: External 2dBi di-pole, Reverse Polarity SMA male (inside threads / center receptacle) Antenna connector on Reverse Polarity SMA female (outside threads / center pin) adapter (S2B2232FEV2)  Mini USB cable (5VDC) Power options ...
  • Page 4 Datasheet & Quick Reference, S2B2232FIV2 / S2B2232FEV2 v3.1 Parameters The parameters can be configured via the DB9 RS232 serial port using a standard terminal program such as Putty or Tera Term, or over BLE Bluetooth using an app. Please see the 'Setup Guide' for details.
  • Page 5 Datasheet & Quick Reference, S2B2232FIV2 / S2B2232FEV2 v3.1 Inquire current DEVICE setting DEL= 1 - 10 The command will delete the master or slave device list (1~10) ECHO= Specifies if characters are Echoed back from the UART (Default) Inquire the current setting FLOW= This command enables or disables flow control signals (CTS/RTS) of the UART port.

  • Page 6: Parameter Configuration

    Datasheet & Quick Reference, S2B2232FIV2 / S2B2232FEV2 v3.1 ROLE= This command is used to specify whether the adapter is in the master or slave mode. If the device mode is changed, the adapter will reboot and all paired addresses will be cleared.
  • Page 7 Datasheet & Quick Reference, S2B2232FIV2 / S2B2232FEV2 v3.1 https://apps.apple.com/us/app/id6449416841 Android https://play.google.com/store/apps/details?id=com.uconnect.sppsetup 1. Download and install the app on your phone/device. 2. Open the app. 3. Connect the adapter to a power source and turn it on. 4. Press and hold the reset button on the adapter for about 6 seconds.

  • Page 8: Radio Frequency Interference Statement

    Datasheet & Quick Reference, S2B2232FIV2 / S2B2232FEV2 v3.1 Federal Communications Commission (FCC) Statement RADIO FREQUENCY INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.
