Chicago Pneumatic CP7500D Instruction Manual

CP7500D

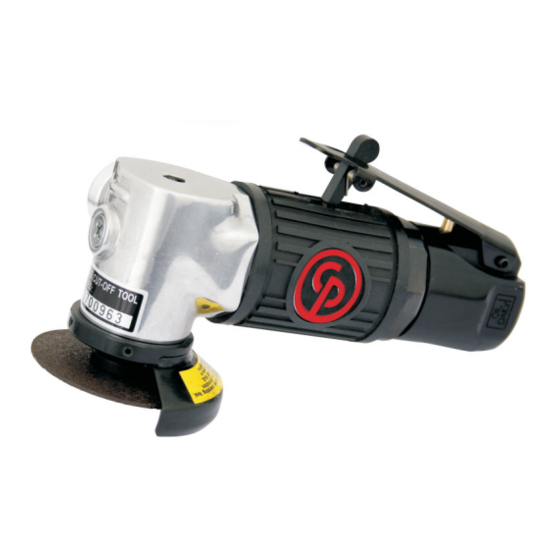

Angle Grinder / Cut-off Tool
28
24
43
25
Grinder Cut-off Tool
46
41
47
44
Part Description
Index
No.
No.
1 8940162727 Housing
2 CA144787 Spring Pin
3 8940162728 Valve Body
4 CA144788 Lever
5 8940162729 Valve Stem
6 8940162730 Adjust Valve
7 KF131709 O-Ring
8 8940162731 Spring
9 8940162106 O-Ring
10 CA158057 O-Ring
11 8940162732 Throttle Valve Plug
12 CA158069 Spacer
13 8940162733 Ball Bearing
14 8940162734 Rear End Plate
15 8940162735 Rotor
16 8940162736 Rotor Blade (4)
17 8940162737 Spring Pin
18 8940162738 Cylinder
19 8940162739 Front End Plate
20 CA144800 Ball Bearing
21 8940162740 Lock Nut
22 8940162741 Pinion Gear
23 8940162742 Lock Ring
24 8940164491 Spindle
25 8940162744 Screw
26 8940162745 Cap
27 8940162746 Screw
28 8940162747 Key
22
39
32
1
29
33
27
34
13
30
20
35
31
No.
Req'd.
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
2
1
1
1
1
3
1
1
2
16
15
19
12
20
28
37
36
21
26
13
17
14
42
40
Part Description
Index
No.
No.
29 8940162748 Exhaust Cover
30 8940162749 Bevel Gear
31 8940162750 Lock Nut
32 8940162751 Screw
33 8940162752 Packing
34 8940162753 Bearing Cover
35 8940162754 Seal
36 8940162755 Spring
37 8940162756 Lever Bar
38 8940162757 Spring Pin
39 8940162758 Rubber Grip
40 8940162759 Spanner
See 2" Grinding Wheel 60 Grit
41 Accessories 2" Grinding Wheel 80 Grit
Available 2" Grinding Wheel 120 Grit
42 8940164485 Pin Wrench
43 8940162764 Wheel Guard
44 8940162765 Nut
46 8940164487 Spacer
See
47 Accessories 2" Cutting Wheel
Available
Accessories
8940162768 - 2" Grinding Wheel 60 Grit (5 pcs)
8940162769 - 2" Grinding Wheel 80 Grit (5 pcs)
8940162770 - 2" Grinding Wheel 120 Grit (5 pcs)
8940164490 - 2" Cutting Wheel (5 pcs)
18
4
2
38
3
5
8
7
23
6
9
10
11
No.
Req'd.
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
