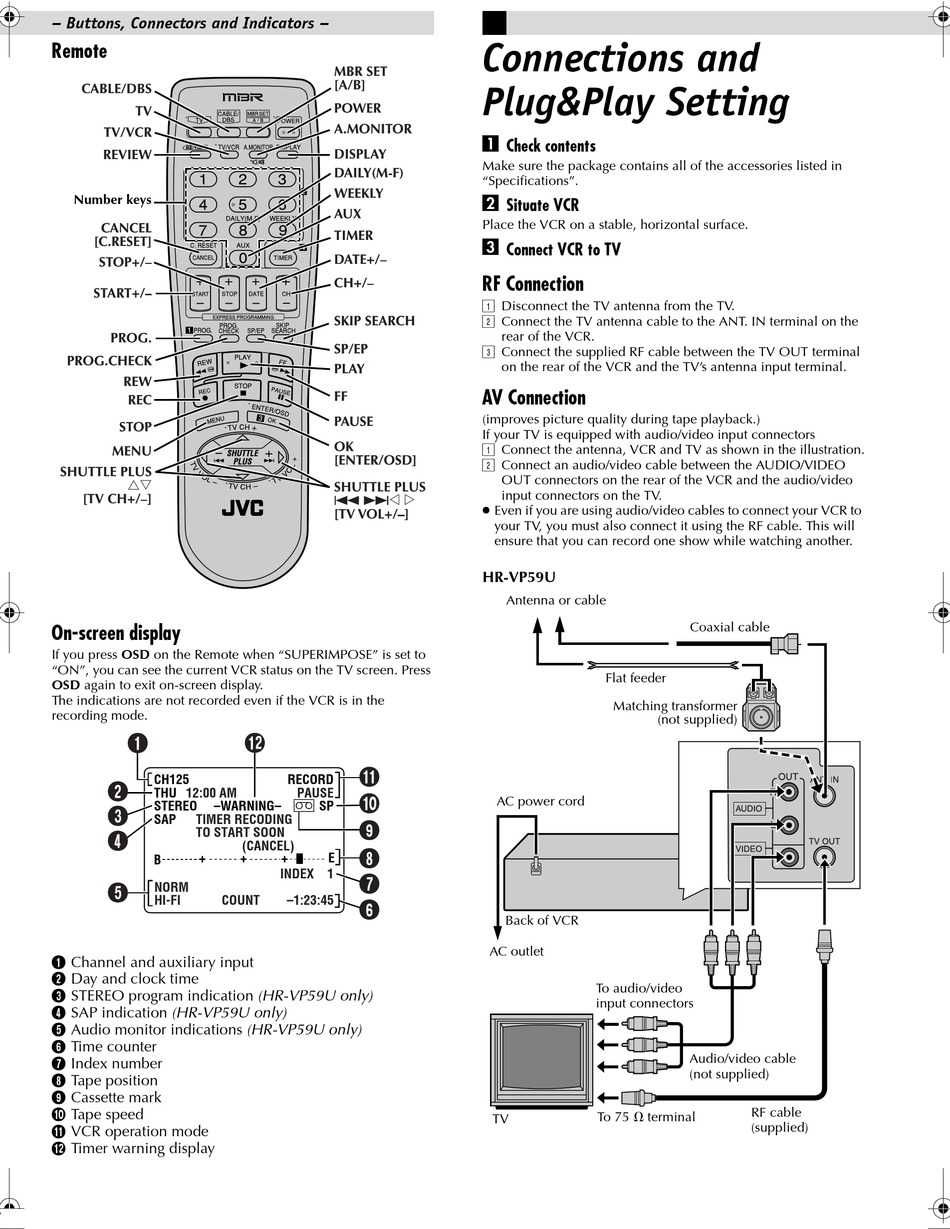

– Buttons, Connectors and Indicators –
Remote
Number keys
On-screen display
If you press OSD on the Remote when "SUPERIMPOSE" is set to
"ON", you can see the current VCR status on the TV screen. Press
OSD again to exit on-screen display.
The indications are not recorded even if the VCR is in the
recording mode.
A
CH125
B
THU 12:00 AM
STEREO –WARNING–
C
SAP TIMER RECODING
D
TO START SOON
+
B
E
NORM
HI-FI
A Channel and auxiliary input
B Day and clock time
C STEREO program indication (HR-VP59U only)
D SAP indication (HR-VP59U only)
E Audio monitor indications (HR-VP59U only)
F Time counter
G Index number
H Tape position
I Cassette mark
J Tape speed
K VCR operation mode
L Timer warning display
L
K
RECORD
PAUSE
J
SP
I
(CANCEL)
H
+ + E
INDEX 1
G
COUNT –1:23:45 F
Connections and
Plug&Play Setting
A
Check contents
Make sure the package contains all of the accessories listed in
"Specifications".
B
Situate VCR
Place the VCR on a stable, horizontal surface.
C
Connect VCR to TV
RF Connection
A Disconnect the TV antenna from the TV.
B Connect the TV antenna cable to the ANT. IN terminal on the
rear of the VCR.
C Connect the supplied RF cable between the TV OUT terminal
on the rear of the VCR and the TV's antenna input terminal.
AV Connection
(improves picture quality during tape playback.)
If your TV is equipped with audio/video input connectors
A Connect the antenna, VCR and TV as shown in the illustration.
B Connect an audio/video cable between the AUDIO/VIDEO
OUT connectors on the rear of the VCR and the audio/video
input connectors on the TV.
Even if you are using audio/video cables to connect your VCR to
your TV, you must also connect it using the RF cable. This will
ensure that you can record one show while watching another.
HR-VP59U
Antenna or cable
Flat feeder
Matching transformer
AC power cord
Back of VCR
AC outlet
To audio/video
input connectors
To 75
TV
Coaxial cable
(not supplied)
Audio/video cable
(not supplied)
RF cable
terminal
(supplied)
