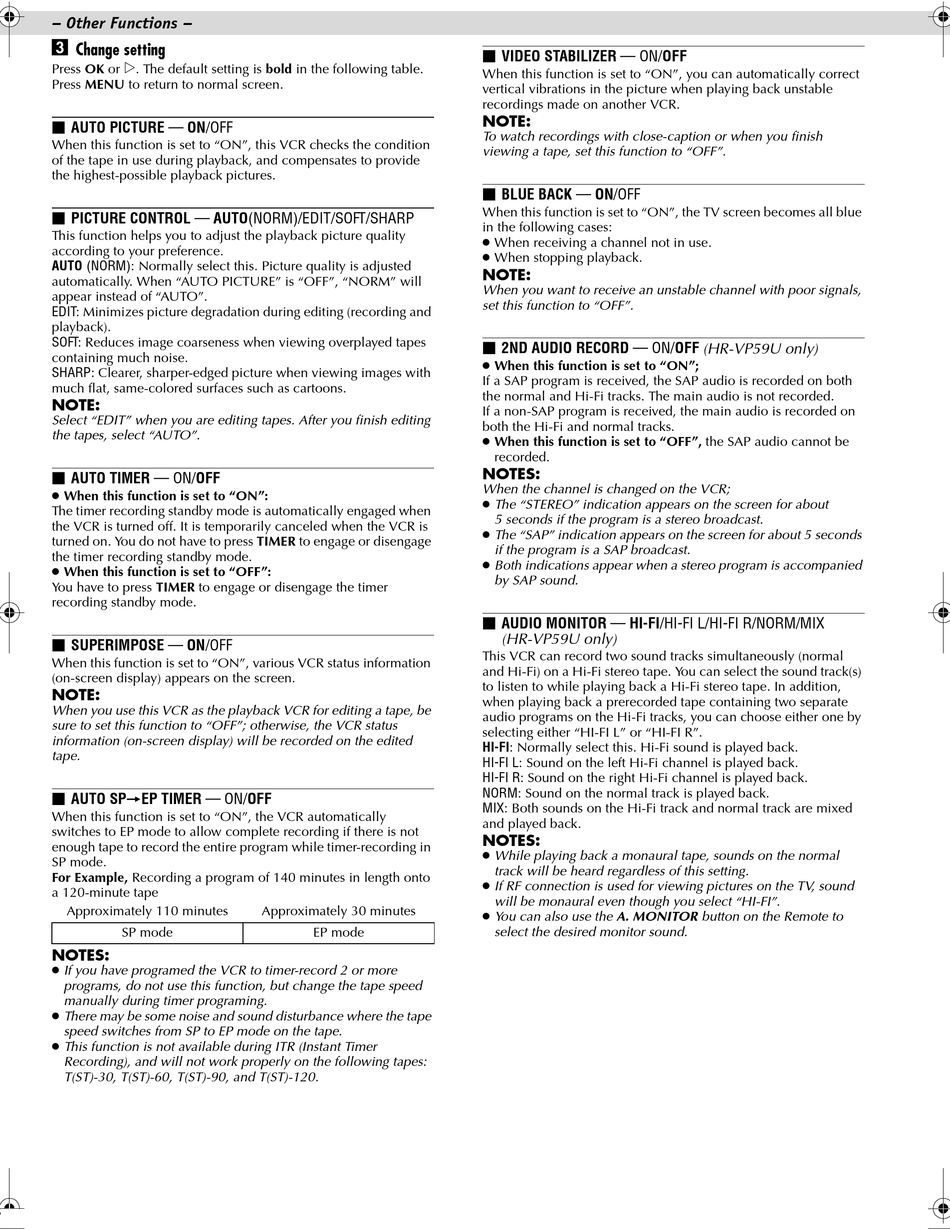

JVC HR-VP49U Instructions Manual page 12

– Other Functions –
C
Change setting
Press OK or . The default setting is bold in the following table.
e
Press MENU to return to normal screen.
AUTO PICTURE — ON/OFF
When this function is set to "ON", this VCR checks the condition
of the tape in use during playback, and compensates to provide
the highest-possible playback pictures.
PICTURE CONTROL — AUTO(NORM)/EDIT/SOFT/SHARP
This function helps you to adjust the playback picture quality
according to your preference.
AUTO (NORM): Normally select this. Picture quality is adjusted
automatically. When "AUTO PICTURE" is "OFF", "NORM" will
appear instead of "AUTO".
EDIT: Minimizes picture degradation during editing (recording and
playback).
SOFT: Reduces image coarseness when viewing overplayed tapes
containing much noise.
SHARP: Clearer, sharper-edged picture when viewing images with
much flat, same-colored surfaces such as cartoons.
NOTE:
Select "EDIT" when you are editing tapes. After you finish editing
the tapes, select "AUTO".
AUTO TIMER — ON/OFF
When this function is set to "ON":
The timer recording standby mode is automatically engaged when
the VCR is turned off. It is temporarily canceled when the VCR is
turned on. You do not have to press TIMER to engage or disengage
the timer recording standby mode.
When this function is set to "OFF":
You have to press TIMER to engage or disengage the timer
recording standby mode.
SUPERIMPOSE — ON/OFF
When this function is set to "ON", various VCR status information
(on-screen display) appears on the screen.
NOTE:
When you use this VCR as the playback VCR for editing a tape, be
sure to set this function to "OFF"; otherwise, the VCR status
information (on-screen display) will be recorded on the edited
tape.
AUTO SP EP TIMER — ON/OFF
]
When this function is set to "ON", the VCR automatically
switches to EP mode to allow complete recording if there is not
enough tape to record the entire program while timer-recording in
SP mode.
For Example, Recording a program of 140 minutes in length onto
a 120-minute tape
Approximately 110 minutes
SP mode
NOTES:
If you have programed the VCR to timer-record 2 or more
programs, do not use this function, but change the tape speed
manually during timer programing.
There may be some noise and sound disturbance where the tape
speed switches from SP to EP mode on the tape.
This function is not available during ITR (Instant Timer
Recording), and will not work properly on the following tapes:
T(ST)-30, T(ST)-60, T(ST)-90, and T(ST)-120.
Approximately 30 minutes
EP mode
VIDEO STABILIZER — ON/OFF
When this function is set to "ON", you can automatically correct
vertical vibrations in the picture when playing back unstable
recordings made on another VCR.
NOTE:
To watch recordings with close-caption or when you finish
viewing a tape, set this function to "OFF".
BLUE BACK — ON/OFF
When this function is set to "ON", the TV screen becomes all blue
in the following cases:
When receiving a channel not in use.
When stopping playback.
NOTE:
When you want to receive an unstable channel with poor signals,
set this function to "OFF".
2ND AUDIO RECORD — ON/OFF (HR-VP59U only)
When this function is set to "ON";
If a SAP program is received, the SAP audio is recorded on both
the normal and Hi-Fi tracks. The main audio is not recorded.
If a non-SAP program is received, the main audio is recorded on
both the Hi-Fi and normal tracks.
When this function is set to "OFF", the SAP audio cannot be
recorded.
NOTES:
When the channel is changed on the VCR;
The "STEREO" indication appears on the screen for about
5 seconds if the program is a stereo broadcast.
The "SAP" indication appears on the screen for about 5 seconds
if the program is a SAP broadcast.
Both indications appear when a stereo program is accompanied
by SAP sound.
AUDIO MONITOR — HI-FI/HI-FI L/HI-FI R/NORM/MIX
(HR-VP59U only)
This VCR can record two sound tracks simultaneously (normal
and Hi-Fi) on a Hi-Fi stereo tape. You can select the sound track(s)
to listen to while playing back a Hi-Fi stereo tape. In addition,
when playing back a prerecorded tape containing two separate
audio programs on the Hi-Fi tracks, you can choose either one by
selecting either "HI-FI L" or "HI-FI R".
HI-FI: Normally select this. Hi-Fi sound is played back.
HI-FI L: Sound on the left Hi-Fi channel is played back.
HI-FI R: Sound on the right Hi-Fi channel is played back.
NORM: Sound on the normal track is played back.
MIX: Both sounds on the Hi-Fi track and normal track are mixed
and played back.
NOTES:
While playing back a monaural tape, sounds on the normal
track will be heard regardless of this setting.
If RF connection is used for viewing pictures on the TV, sound
will be monaural even though you select "HI-FI".
You can also use the A. MONITOR button on the Remote to
select the desired monitor sound.
