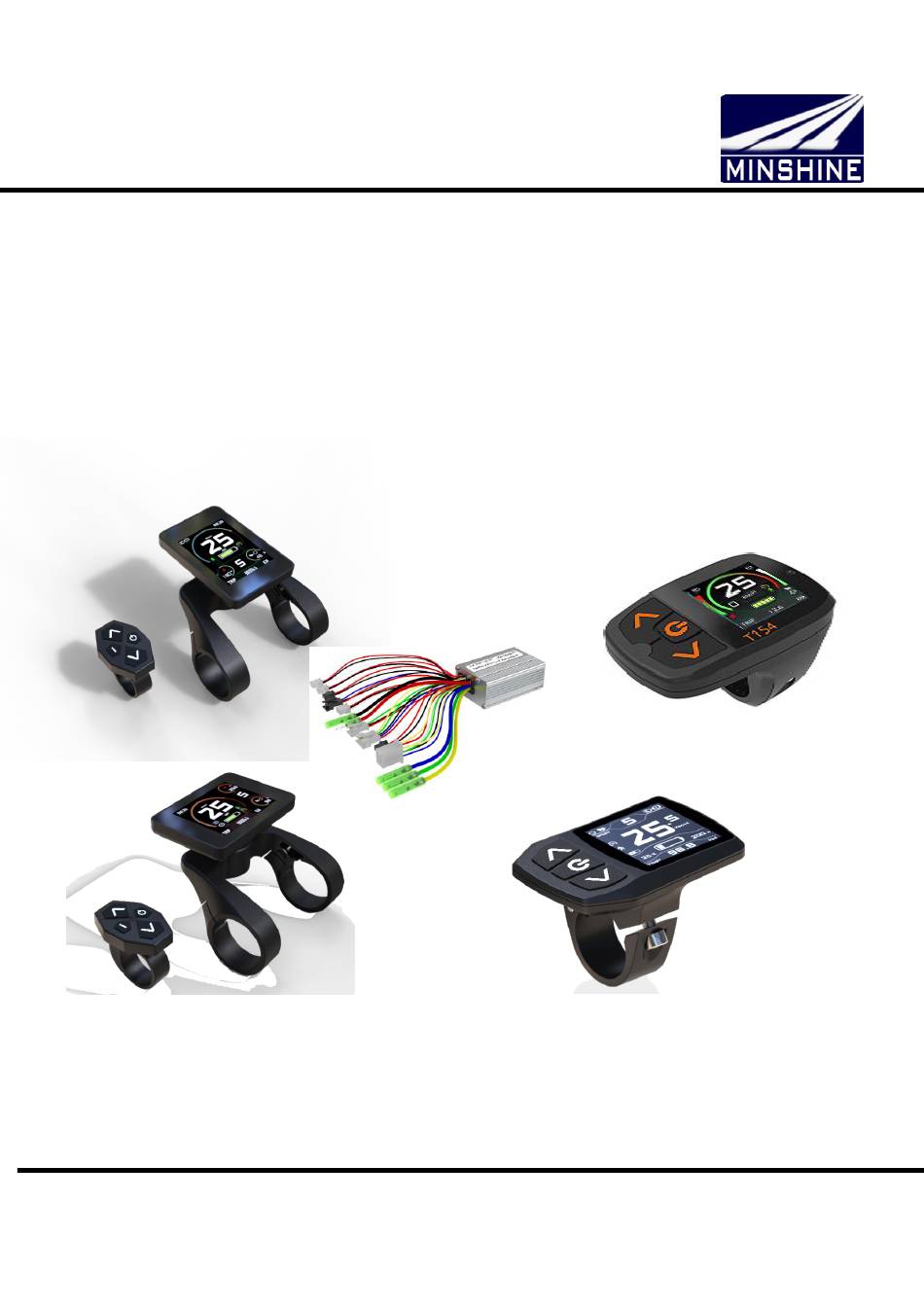

- Page 1 Smart eBike Drive system v2.101 Smart eBike Drive system User guide www.minshine.cn...
-
Page 2: Table Of Contents
Smart eBike Drive system v2.101 Catalog Read me ..............................3 Technical Data(T154 Serials) ........................4 Technical Data(T24 Serials)........................5 Technical Data(M15) ..........................6 Operations ............................... 7 Menu Settings ............................10 Warning messages ..........................16 Error messages ............................17 Changing skin and font color by display ....................19 10 Changing font colors by APP ........................ -
Page 3: Read Me
Smart eBike Drive system v2.101 1 Read me ★ Thank You for Purchasing our Smart ebike Driving System Equipped Bicycle, Read this manual before you take the first ride on your new bicycle and keep it for reference . ★ Contact dealer or the bicycle manufacturer if you can not understand this manual ,Failure to follow this manual may be involved in risk or hazardous injury.;... -
Page 4: Technical Data(T154 Serials)
◆ Fix Position: Left or right of handlebar ◆ Communication: UART/TS232/CAN ◆ Material: ◆ Ingress Protection: IP54(dust and splash water protected) ◆ Customization :Valiable T154-1 T154-2 T154-3 Brake Indicator 11 Power bar Riding mode 12 Real time speed Indicator value indicator... -
Page 5: Technical Data(T24 Serials)
Smart eBike Drive system v2.101 3 Technical Data(T24 Serials) ◆ Power: 15 - 60VDC /60 ma ◆ Screen: 2.4” Colorful TFT ◆ Button: Transparent silicon rubber with LED Backlight ◆ Fix Position: Middle ◆ Communication: UART/TS232/CAN ◆ Material: ◆ Ingress Protection: IP54 (dust and splash water protected) ◆... -
Page 6: Technical Data(M15)
Smart eBike Drive system v2.101 4 Technical Data(M15) ◆ Power: 15 - 60VDC /50 ma ◆ Screen: 1.54” monochrome ◆ Button: Transparent silicon rubber with LED Backlight ◆ Fix Position: Left or right of handlebar ◆ Communication: UART/TS232/CAN ◆ Material: ◆... -
Page 7: Operations
Smart eBike Drive system v2.101 5 Operations Caution: Walk assistance Stop Bike if you want to make some --The walk assistance can make it easier for operations on display , If you do not you to push the eBike. The assisting speed focus exclusively on your riding can reach a maximum of 6km/h , Using the environment, you risk being involved in... - Page 8 Smart eBike Drive system v2.101 --Maybe you can’t modify settings because TRIP , ODO ,MAX SPEED , AVG SPEED you don’t have modify permissions; --These information was shown at bottom of --Some menu item may will be invisible screen ,TRIP and MAX SPEED , AVG SPEED TEST can be cleared by long pressing POWER and DOWN with 3 seconds;...
- Page 9 Smart eBike Drive system v2.101 --Select Skin -Pedal sensor status and throttle status Three different color skins were preset in display, you can chose favorite one for yourself -- Brake ,speed and shift sensor status --Select Font Color three different font solutions were preset in displat, you can chose favorite one for yourself --Temperature sensor As the skins and font color , you also can use...
-
Page 10: Menu Settings
Smart eBike Drive system v2.101 6 Menu Settings This is a full menu sets for T154,M15,T24 display , not all of the menu item will be visible for end user because some settings is only for some advance applications ,sometimes, maybe you can’t modify set because you didn’t get permissions from supplier , all menu items show with letters , it can help to understand the meaning of each item easily, if you do not fully understand it , DON NOT CHANGE SETS ,incorrect set may make system... - Page 11 Smart eBike Drive system v2.101 Synchro Mode Controller, Display, There have 2 same copies of Display Once settings related with the bike ,2 copies was saved in both display and controller , display and controller will verify each other when bike power on, if select Controller - controller will send settings to display if the settings in display is different with controller...
- Page 12 Smart eBike Drive system v2.101 above at OPERATION topic Speed Sensor 0-36 Set 0 if motor wasn’t equipped speed sensor Set 1 if motor was equipped with a speed sensor Temperature Disable, Enable Disable - motor was not equipped Sensor with Temperature sensor Enable - motor was equipped with Temperature sensor...
- Page 13 Smart eBike Drive system v2.101 Level Count The max assistance level count Auto Level Set 0 if don’t need a AUTO assistance level Set1 Atuo assistance level will be activated Level1_Speed/P 5-40km/h / 5%- Speed and power limit for each ower 100% assistance level,...
- Page 14 Smart eBike Drive system v2.101 Enable Disable, Enable Disable : Bike was not equipped with a throttle Enable:Bike ike was not equipped with a throttle Driving Mode The Driving mode of the throttle, 0.Disvalid - 6km/h For example: 1.Disvalid - Level we select option Speed 2.Disvalid --Full...
- Page 15 Smart eBike Drive system v2.101 Torque sensor Soft, Soft Safe , Some options include safe option Sensitive , means torque sensor have to Sensitive move certain angle then start to Safe ,Current activate power assistance, Mode ,Japan Mode Japan mode only for Japan market Warning Show Disable, Enable Enable or disable the message...
-
Page 16: Warning Messages
Smart eBike Drive system v2.101 7 Warning messages These messages will be blinking show on screen when warning event was happened , Do not try to repair by yourself if you not totally understand this manual. Lose communication between display and controller Solution: Check the communication cable between display and controller... -
Page 17: Error Messages
Smart eBike Drive system v2.101 8 Error messages Don’t not use bike and try to shut the battery power off if errors were happened, DO NOT TRY TO REPAIR IT BY YOURSELF , send your bike to your service station , otherwise may result in serious injury. It means communication protocol, between controller and display is different. - Page 18 Smart eBike Drive system v2.101 It means the display memory is fail Solution: change a new display there have 3 possibilities if this error happened 1. User grip the throttle during on power-on period , 2. Throttle was broken It means motor cable is disconnected or cable is broken...
-
Page 19: Changing Skin And Font Color By Display
Smart eBike Drive system v2.101 9 Changing skin and font color by display what is skin there have three different color skins preset in display memory, you can choice the favorite one for you own ； Green Skin Blue Skin Brown Skin what is Font color There have 3 different font color solutions preset in display, choice the favorite one... -
Page 20: Changing Font Colors By App
Smart eBike Drive system v2.101 10 Changing font colors by APP Font Color If you don’t like the font color we preset in display , You can redefine font color by this APP to make different font color Preparation ➢ Plug USB Dongle into PC USB stock;(you may have to install drive software for this USB Dongle when connecting with PC first time) ➢... -
Page 21: Load Picture To Display By App
Smart eBike Drive system v2.101 11 Load Picture to Display by APP There have Two images will be shown on display ,when display power on or off , user can reload two images to replace it by yourself via this APP . Preparation ➢... -
Page 22: How To Load Firmware To Controller By App
Smart eBike Drive system v2.101 12 How to Load firmware to controller by APP Firmware is a parameters pack which was combined with battery settings , motor settings ,controller settings, riding feeling settings, and all other accessories settings , all of these parameters related with a certain bike, this firmware was saved in controller memory ;... -
Page 23: Firmware Database Management App
Smart eBike Drive system v2.101 13 Firmware database management APP Each bike has one or more firmware for different applications. A firmware database was built in display to contains max 100pcs firmware you may have . After you loaded firmware database into display , you can choice one for a certain bike by display operating FIRMWARE menu,(see Menu setting topic above ) when you install this display on bike. -
Page 24: Tools For Service And Maintaince
Smart eBike Drive system v2.101 14 Tools for service and maintaince We provide some special tools for dealers for service . it will take more convenience for dealer when they carry out after sale service or maintaince. 1. Set service distance for a bike Dealer can set a bike with a certain service distance, for example, set it as 100km , then , after rider rided more than 100km, display will show service information on screen alert user that , bike have to back to service... -
Page 25: Display Interface Reference
Smart eBike Drive system v2.101 15 Display interface reference T154-1 T154-3 T24-H1 T24-H2 T24-H3... - Page 26 Smart eBike Drive system v2.101 T24-V1 T24-V2...
