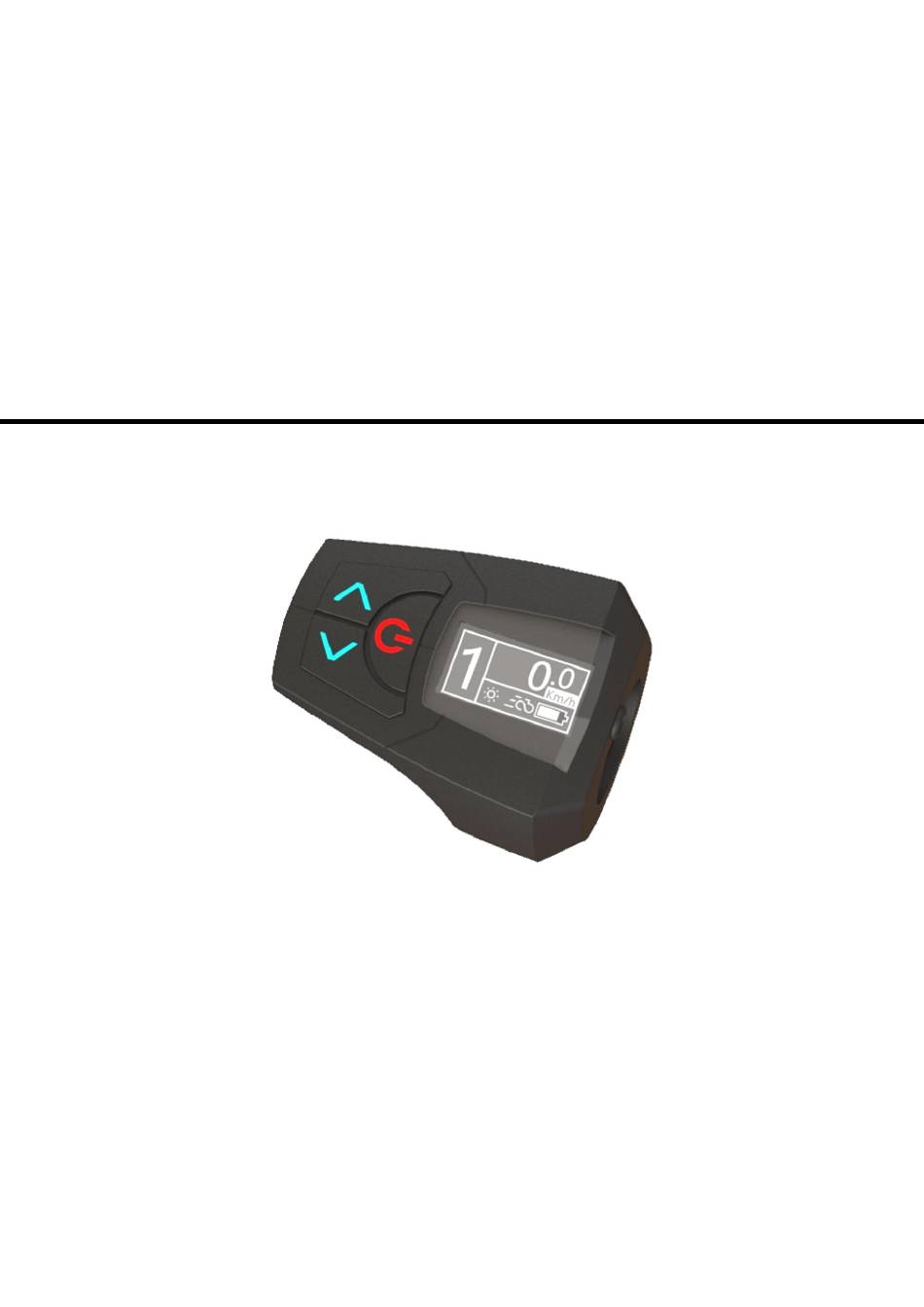

- Page 1 OLED-01 Display Smart eBike Display User guide Model: OLED-01...
-
Page 2: Table Of Contents
OLED-01 Display Catalog About the User Manual ........................... 3 Technical Parameters ..........................4 Installation Instruction ..........................4 Features ..............................5 Display Interface ............................5 ➢ Working Display Interface ........................5 Normal Operation ............................ 6 ➢ Power On .............................. 6 ➢... -
Page 3: About The User Manual
OLED-01 Display 1 About the User Manual ★ This manual contains important safety, performance. Read it carefully and completely before taking the first ride. ★ This manual is based on the general purpose. some of the content may not be applicable due to software updates or customization. -
Page 4: Technical Parameters
OLED-01 Display 2 Technical Parameters ◆ Power: 24 - 48VDC /10 ma ◆ Screen: Graphic dot matrix OLED ◆ Screen Color: White/Blue /Yellow, default is White ◆ Button: Transparent silicon rubber with LED Backlight ◆ LED Backlight: Power Button : Red , Up and Down button :Blue/Green/White ◆... -
Page 5: Features
OLED-01 Display 4 Features OLED-01 is a control panel for eBike with Graphic dot matrix OLED screen ,Transparent silicon rubber keyboard with LED backlight, digital communicating interface , 15 different screen interface can be show to help user to check all the information come from bike,; Transparent silicon rubber keyboard with LED backlight feedback a nice feeling while operating;... -
Page 6: Normal Operation
OLED-01 Display Screen5 Screen 6 PAS Level PAS Level Battery Capacity Current Screen 7 Screen 8 PAS Level PAS Level Power TRIP Screen 9 Screen 10 PAS Level PAS Level ENRRGY (Accumulative energy consumption) Screen 11 Screen 11 PAS Level... -
Page 7: Display Interface Switch
OLED-01 Display ➢ Display interface switch Press POWER button can switch Display interface ➢ Cruise On/Off Long press DOWN button , bike will run with 6km/h when bike is IDEL, the CRUISE indicator will blink Long press DOWN button , bike will enter CRUISE Stature when bike is moving , the CRUISE indicator will blink ➢... -
Page 8: Whats The Setting Synchro
OLED-01 Display Setp 3 :Power on display A or display B , some guide message will show on screen, do it as the guide. Setp 4: Long press DOWN button will receive settings from other , Long press UP will send settings to... -
Page 9: Quality Assurance And Warranty Scope
OLED-01 Display 11 Quality assurance and Warranty scope ◆ The warranty time is 24 months from the shipping time. ◆ Responsible for all faults arising during normal operation that are caused by a quality defect. ◆ The following will either void or fall outside the scope of the warranty ➢... -
Page 10: Appendix A (System Menu)
OLED-01 Display 12 Appendix A (System menu) This is all the menu item preset in the display , maybe some functions is invisible for bike because some functions are invalid for your bike, also some settings are invalid even you had changed it because some functions need extra hardware option . - Page 11 OLED-01 Display Motor Hall HallLess,Hall Motor Gear GearLess, Gear Pole Pairs Reduction Ratio Speed Sensor 0-60 The speed sensor built-in motor Motor 0-No speed sensor inside the motor 1-60,the number of signals when motor rotate one circle TEMPSensor Disable, Enable...
- Page 12 OLED-01 Display Power Disable, Enable Enable Trip Disable, Enable Enable Disable, Enable Enable Energy Disable, Enable Enable PAS Speed Disable, Enable Disable Motor TEMP Disable, Enable Disable Controller TEMP Disable, Enable Disable Throttle VOL Disable, Enable Disable Device Test Disable, Enable...
-
Page 13: Appendix B (Warning Message)
OLED-01 Display 13 Appendix B (Warning message) These message will blink show on screen when warning event happened , user can skip it by press any button display and controller abnormal communication between Solve: check the cable and connect again... -
Page 14: Appendix C (Error Message)
OLED-01 Display 14 Appendix C (Error message) Bike will stop work if these error event happened, and ,These messages show on screen can help user to find the common fault out. there have 3 possibilities if this error happened User grip the throttle during on power-on period ,... -
Page 15: Appendix D (Faq)
OLED-01 Display 15 Appendix D (FAQ) Q：Why can not turn on the display even press the POWR button with long time? A：Make sure battery is power on , then check the cable is well connected with the controller. Q：How to deal with ERROR message ? A：Power off the system and try to Contact the e-bike maintenance station in time.
