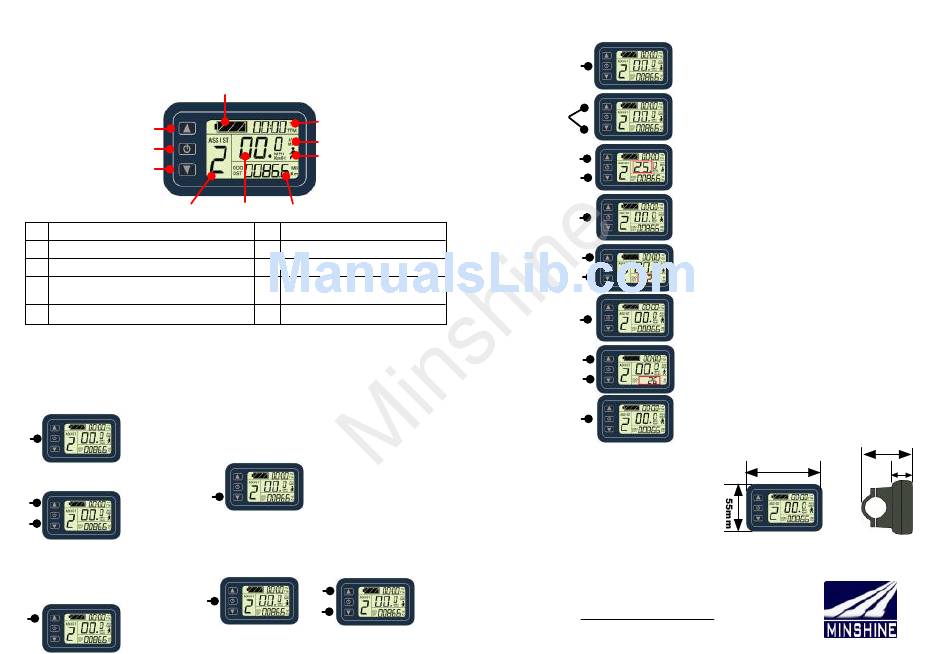

Minshine KT-LCD User Manual

KT-LCD eBike Display User Manual
1.Preface
Dear customer, please read this guide carefully before you use this product, and must
correctly set the ebike parameters step by step according to the manual. and the ebike
running infromation will auto record in the display, this type display only can match KT
series ebike controller.
10.Battery indicator
1. Up
2. On/Off
3. Down
4.AssistGear
1 UP Button
2 ON/OFF Button
3 DOWN Button
AssistGear (0-6 Assist grade )
4
0: Only Cycling, 1-5: Power Assist
5 Current Speed
2.Technology
Rate voltage: 24-36-48V Rate Current: 50ma
Scren: LCD Communication: Digital ,Uart
3.Operation
3.1 Power On or OFF
Long press 'ON/OFF' key
3.2 Change Assist Grade
Press UP or Down key will change
assistmode,
0-Only cycling by peadl ,Grade 1-
lowest Power assist ,Grade 5-Highest
3.3 Backlight Lighting
9. TM / TTM
8. AVG/MXS
7. Pushaided
5.Speed
6.ODO
6 ODO
7 6Km/h Push power assist
8 Average and MAX speed
9 Total trip time
10 Battery capacity indicator
Long press UP key, the display screen backlight will lighting.
if you equip front light, the front light will linghting together
3.4 Push power assist
Long Press DOWN key ,bike will run as a 6km/h speed
If you push bike on the hill ,you can use this function can
help you to push bike easily.
3.5 Viewrecord data
Short-press ON/OFF button, then you can view TTM, ODO ,
MAX speed,AVG speend by press UP or DOWN button
4 .General Set
You can set the ebike Max limit speed, Wheel size , Speed unit via this process
Press ON/OFF button
Step 1
open the display
Long Press UP and Down button together
until display blink then release
Step 2
Select Max Limit Speed
Step 3
Range: 10km/h - 40Km/h
Short Press ON/OFF button
Step 4
Select Wheel Size
Range :12", 14 ", 16", 18",
Step 5
Short press ON/OFF button
Step 6
Select Speed Unit
Step 7
Range : Km/h ,Mph/h
Long Press ON/OFF button about 2s,
Step 8
Save Parameter, General set end.
5 .Error code table
01_error abnormal turn signal;
02_error phase lack of motor;
03_error abnormal Hall signal of motor;
04_error abnormal torque sensor signal.
05_error abnormal pedal sensor signal.
www.minshine.cn
20", 22", 24", 26",
700C, 28"
51.8mm
6 .Size
91mm 21.3
