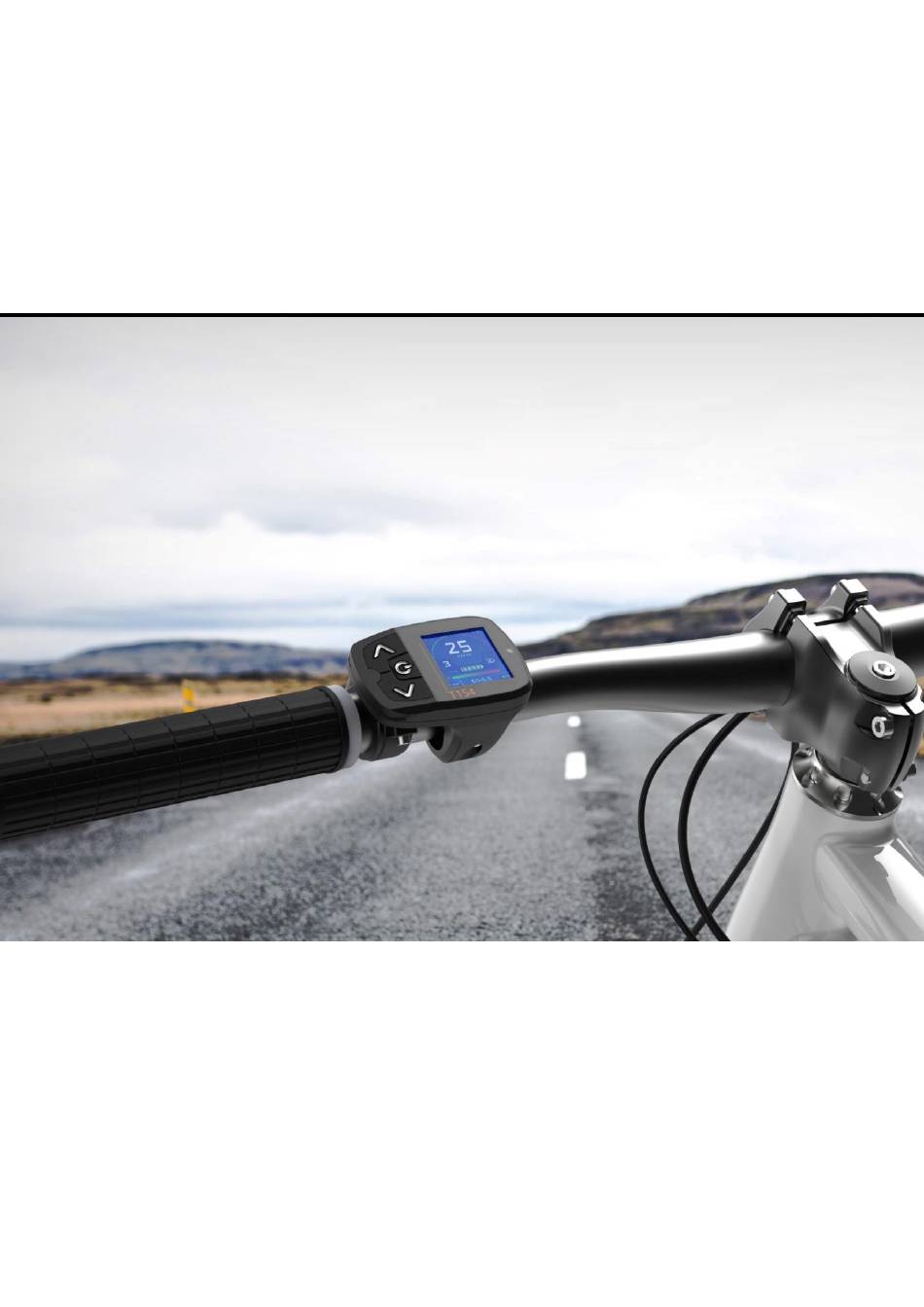

- Page 1 T154 Display Smart E-bike Display User guide Model: T154-1/2/3...
-
Page 2: Table Of Contents
T154 Display Catalog About the Manual ............................ 3 Technical Parameters ..........................4 Installation Instruction ..........................4 Features ..............................5 Display Interface ............................5 ➢ Working Screen interface ........................5 ➢ Test Screen interface ........................... 6 ➢ About & Demo Screen interface ......................7 Normal Operation ............................ -
Page 3: About The Manual
APPs, Any damage caused by the use of illegal APPs will out of warranty. ★ There have 3 sub models for T154 series display , T154-1 ,T154-2, T154-3; all the functions is similiar except the screen interface ;... -
Page 4: Technical Parameters
T154 Display 2 Technical Parameters Power: 24 - 48VDC /10 ma ◆ Screen: 1.54” Colorful TFT ◆ Button: Transparent silicon rubber ◆ with LED Backlight Fix Position: Left or right of handlebar ◆ Communication: UART/TS232/CAN ◆ ◆ Material: ◆ Ingress Protection: IP64 Customization :Valiable ◆... -
Page 5: Features
T154 Display 4 Features TFT-154 is a centre control panel with a TFT colorful screen for ebike , transparent silicon rubber button with LED back-light, GUI interface ,digital communicating interface . 3 font color solution and 3 colorful skins are presented, a built-in light sensor and auto adjust the screen back light , and power on or off the light according to ambient intensity;. -
Page 6: Test Screen Interface
T154 Display Different Information box such as ODO, TRIP, Max speed , Average speed , and Test sub screen and About sub screen can be show after short press <POWOER > button. ➢ Test Screen interface These messages show on screen can assist user to check the status of all the electric devices connected with E-bike. -
Page 7: About & Demo Screen Interface
T154 Display ➢ About & Demo Screen interface About Screen -- It can Show Product info Switched the sub screen by POWER button, turn back to main working screen by DOWN button; Demo Screen – at this screen ,all the features can be demonstrated and show on screen , this function is very useful for user to understand quickly how to operate and how many info can be showed on screen;... -
Page 8: Light On/Off
T154 Display ➢ Light On/off Long press UP button, turn the light on, the LIGHT indicator will blink, Long press again, turn the light off; Notice: Long press UP button cant turn-on or off the light if auto light menu item set as AUTO at Test screen, Press UP button cant turn-on or off the light ➢... -
Page 9: Debug App
T154 Display ：Controller Setting Synchro Controller will send bike settings to display ：Display Setting Synchro Display will send bike settings to controller ：Display Once Setting Synchro Display will send bike settings to controller only once 9 DEBUG APP For some professional users, they can download an APP from our website, get permission from us firstly before run this APP, User can rest all the settings related with the display include color of screen or font... -
Page 10: Quality Assurance And Warranty Scope
T154 Display 11 Quality assurance and Warranty scope The warranty time is 18 months from the shipping time. ◆ Responsible for all problems arising during normal operation that are caused by a quality defect. ◆ The following will either void or fall outside the scope of the warranty ◆... -
Page 11: Appendix A (Menu)
T154 Display 12 Appendix A (Menu) This is a full menu item table preset in the display , some of the menu items may not be applicable due to software updates or customization; Notice: incorrect set will cause system can’t work, you can select DEFAULT menu item to restore all the setting; Main Menu Menu Item Value range... - Page 12 T154 Display 60%Cap battery equipped 38.7V on bike; 80%Cap Full Max Current 10A-30A Controller Low Cut Voltage 18V-50V TEMP Sensor Disable, Enable Disable Motor Hall Hall Less,Hall Motor Gear Gear Less, Gear Pole Pairs Reduction Ratio Speed Sensor 0-60 The speed sensor built-in motor Motor 0-No speed sensor inside the motor...
- Page 13 T154 Display Shit sensor Disable, Enable Disable Warning Show Disable, Enable Enable Enable or disable the message box show Trip Disable, Enable Enable Timer Disable, Enable Enable Max Speed Disable, Enable Enable AVG Speed Disable, Enable Enable Bat Capacity Disable, Enable Enable Test Disable, Enable...
-
Page 14: Appendix B (Warning Message)
T154 Display 13 Appendix B (Warning message) These message will blink show on screen when warning event happen, users can cancel it by press any button Lose communication between display and controller Solution: Check the communication cable between display and controller Current is above the Battery is empty... -
Page 15: Appendix C (Error Message)
T154 Display 14 Appendix C (Error message) Bike will stop work if these kind of errors happen, the icons show on screen can help users to find the common faults out. It means communication protocol, between controller and display is different. you can check the version at <About screen interface>... - Page 16 T154 Display It means the display memory is fail Solution: change a new display there have 3 possibilities if this error happened User grip the throttle during on power-on period , Throttle or the interface on controller are broken It means phase cable is disconnected There have short circuit problem in the motor or the current is too bigger when start- up a motor...
-
Page 17: Appendix D (How To Enter Demo Mode)
T154 Display 15 Appendix D (How To Enter Demo Mode) Demo mode can show all the performance and characteristic of the display and help user to understand how its working, there have 2 way to enter this mode; Enter demo mode when power-on Step1: enter menu Step2: Select menu item NORMAL... -
Page 18: Appendix E (Faq)
T154 Display 16 Appendix E (FAQ) Q：Why can not turn on the display even press the POWR button with long time? A：Make sure battery is power on , then check the cable is well connected with the controller. Q：How to deal with ERROR message ? A：Power off the system and try to Contact the e-bike maintenance station in time.
