Intermec 1013AB01 Instructions

Caution: This battery pack may ignite, create a chemical burn hazard, explode, or
release toxic materials if mistreated. Do not incinerate, disassemble, or heat above
100 °C (212 °F). Do not short circuit; may cause burns. Keep away from children.
Use only Intermec charger Models 1002UU02, 1002UU04, CPS024100240, and
AE38. Use of incorrect charger may present a risk of fire or explosion.
LITHIUM-ION BATTERY. WASTE BATTERY MUST PROMPTLY BE RECYCLED
OR DISPOSED OF PROPERLY. SEE INSTRUCTIONS.
Proper Disposal of Waste Batteries
Some of the substances necessary for the proper functioning of batteries are considered harmful to the
environment and to human health. It is therefore important that those substances be kept out of the
environment.
You play an important role in the protection of the environment:
1. Keep all waste batteries out of unsorted trash.
2. Dispose of all waste batteries in separate collection for treatment and recycling.
Please contact Intermec for the collection option(s) available in your location.
Marking of the battery:
1. The wheeled-bin symbol indicates the requirement for separate collection of the battery.
2. Two letters shown underneath the wheeled bin indicate the presence of a certain substance:
a. Hg means Mercury is present
b. Cd means Cadmium is present
c. Pb means Lead is present
3. The Moebius loop (chasing arrows) indicates that the battery is recyclable.
Worldwide Headquarters
6001 36th Avenue West
Everett, Washington 98203
U.S.A.
tel 425.348.2600
fax 425.355.9551
www.intermec.com
© 2012 Intermec Technologies
Corporation. All rights reserved.

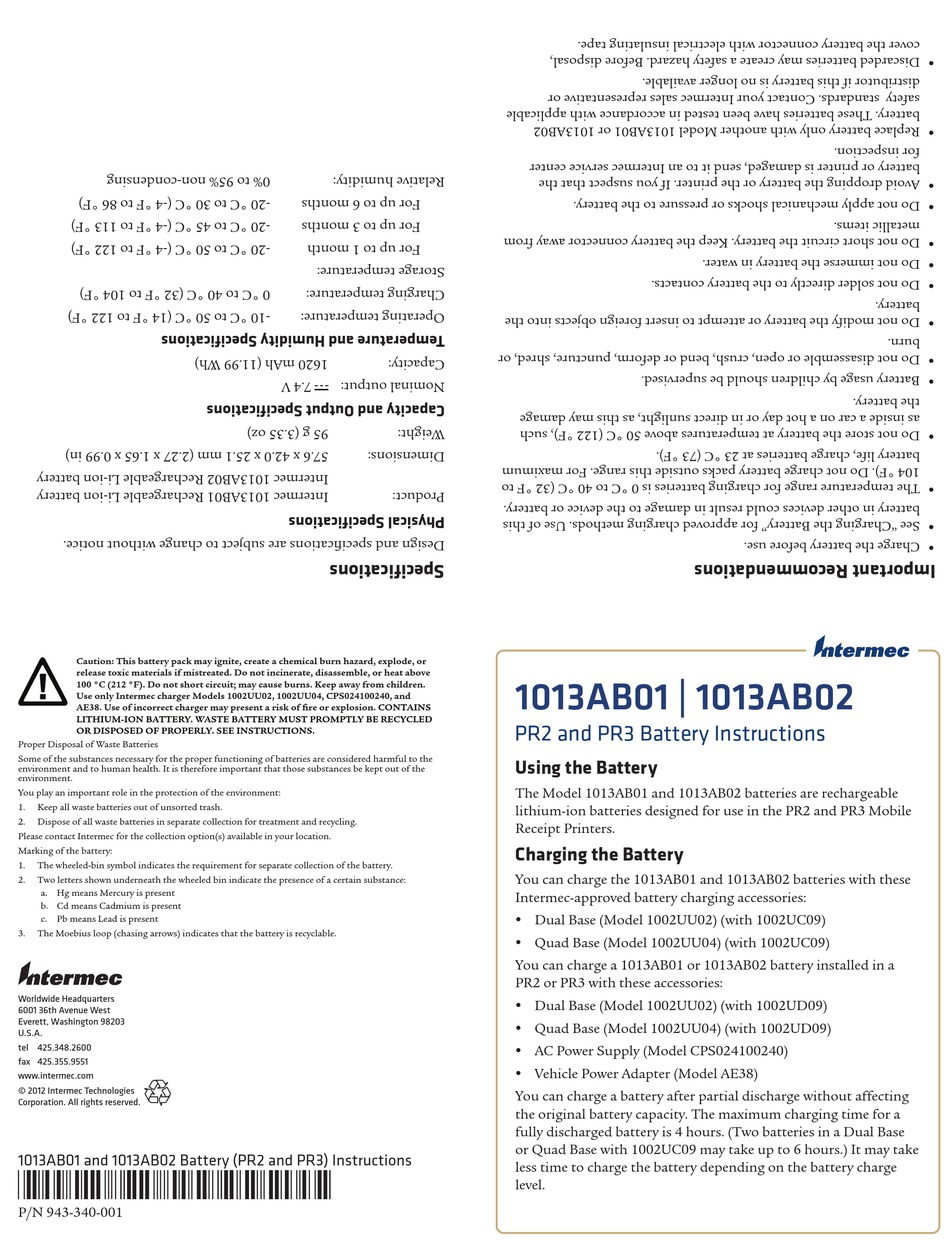

1013AB01 and 1013AB02 Battery (PR2 and PR3) Instructions
*943-340-001*
P/N 943-340-001
1013AB01 | 1013AB02
CONTAINS
PR2 and PR3 Battery Instructions
Using the Battery
The Model 1013AB01 and 1013AB02 batteries are rechargeable
lithium-ion batteries designed for use in the PR2 and PR3 Mobile
Receipt Printers.
Charging the Battery
You can charge the 1013AB01 and 1013AB02 batteries with these
Intermec-approved battery charging accessories:
y Dual Base (Model 1002UU02) (with 1002UC09)
y Quad Base (Model 1002UU04) (with 1002UC09)
You can charge a 1013AB01 or 1013AB02 battery installed in a
PR2 or PR3 with these accessories:
y Dual Base (Model 1002UU02) (with 1002UD09)
y Quad Base (Model 1002UU04) (with 1002UD09)
y AC Power Supply (Model CPS024100240)
y Vehicle Power Adapter (Model AE38)
You can charge a battery after partial discharge without affecting
the original battery capacity. The maximum charging time for a
fully discharged battery is 4 hours. (Two batteries in a Dual Base
or Quad Base with 1002UC09 may take up to 6 hours.) It may take
less time to charge the battery depending on the battery charge
level.
