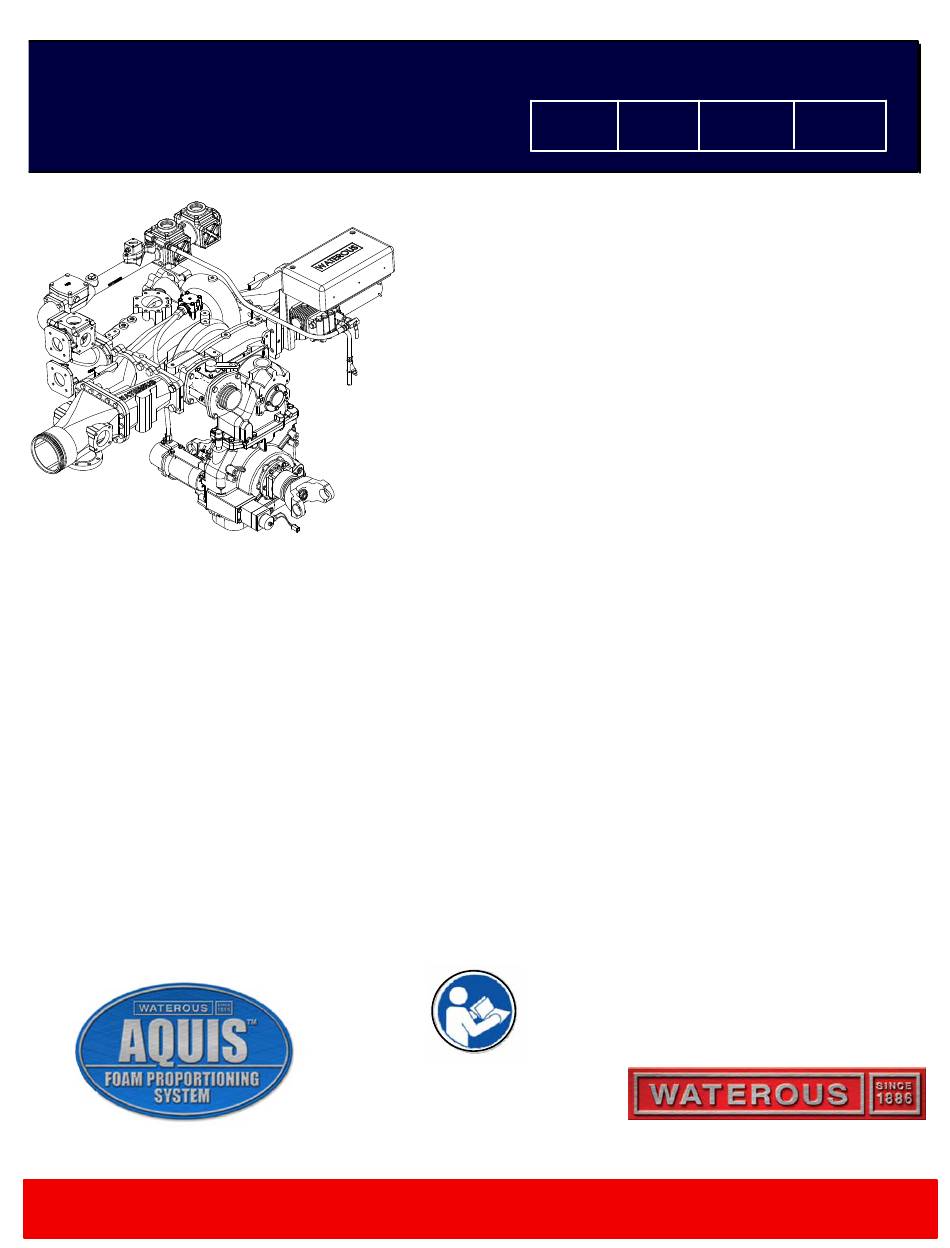

Foam Managert System
with Aquist
Waterous Company 125 Hardman Avenue South, South St. Paul, Minnesota 55075 USA (651) 450−5000
IL3436
Aquis Foam Pump
Instructions subject to change without notice.
Operation and Maintenance
Form No.
Section
F−1031
2414

Table of Contents

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Foam Manager with Advantus
Read through the safety information and operating
instructions carefully before using your Waterous
Foam Manager.
Visit us at www.waterousco.com
Issue Date
Rev. Date
03/11/10
05/13/13
. . . . . . . . . . . . . . . . . . . . . . . . . .
2
3
3
4
4
4
5
6
6
6
6
6
6
6
6
6
7
7
8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aquis Foam Manager and is the answer not in the manual?

Questions and answers

Related Manuals for Waterous Aquis Foam Manager

Summary of Contents for Waterous Aquis Foam Manager

  • Page 1: Table Of Contents

    Foam Manager with Advantus Read through the safety information and operating instructions carefully before using your Waterous Foam Manager. Visit us at www.waterousco.com Waterous Company 125 Hardman Avenue South, South St. Paul, Minnesota 55075 USA (651) 450−5000 Instructions subject to change without notice.

  • Page 2: Safety Information

    Safety Information Read through the safety information and operating instructions before using your Waterous Foam Manager. WARNING WARNING Death or serious personal injury might occur if proper Scalding Water Hazard. May result in serious burns. operating procedures are not followed. The pump op-...

  • Page 3: Introduction

    The Foam Managert System consists of an Aquist minum crankcase, ball bearings, forged brass pump body Foam Proportioning System mounted on a Waterous CM and manifold, solid ceramic plungers, stainless steel or CS fire pump.

  • Page 4: System Components

    Instructions for Waterous CMU Series Centrifugal Fire overheated water supply can cause damage to the Pumps pump. · F−1031, Section 2115, Operation and Maintenance Instructions for Waterous CS and CSU Series Centrif- ugal Fire Pumps F−1031, Section 2414 Page 4 of 8...

  • Page 5: Aquist Foam Pump Operation

    Aquist Foam Pump Operation Upon power up, the software revision number will be dis­ Figure 2. Operator Interface Terminal played. The unit will then display the flow rate. The software will perform a linear interpolation to determ­ ine values to use for flow rates that are in between flow rates entered in the data array.

  • Page 6: Foam Operation

    Foam Operation After the pump is operating, turn on the foam pump to in­ Refer to Aquis Foam Pump Operation Instructions on ject foam concentrate into the water stream. Page 4. Foam System Flush 1. Turn off Foam Pump. 2. Flow clear water through discharges that were used until clear water is flowing from the nozzle.

  • Page 7: Calibration

    B. F1 - Default Mix Percentage A locked out system can only be unlocked at a quali­ fied Waterous Service Center. At the F1 prompt, press the SELECT button. Use the UP and DOWN arrow buttons to select the de­...

  • Page 8: Troubleshooting Guide

    Troubleshooting Guide It is important to know what to do if your foam system in not operating properly. This troubleshooting guide should help you diagnose, isolate and fix the problem encountered. Problem Cause Using wetting agent in place of foam Flush system and install Class “A”...
