V ERSION # 20-10-12
1 / 9
MODEL #
CM7864EK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
3 - People
Recommended
EASY
DIFFICULT
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
Advertisement
Related Manuals for Furniture of America Aalok CM7864EK
Summary of Contents for Furniture of America Aalok CM7864EK

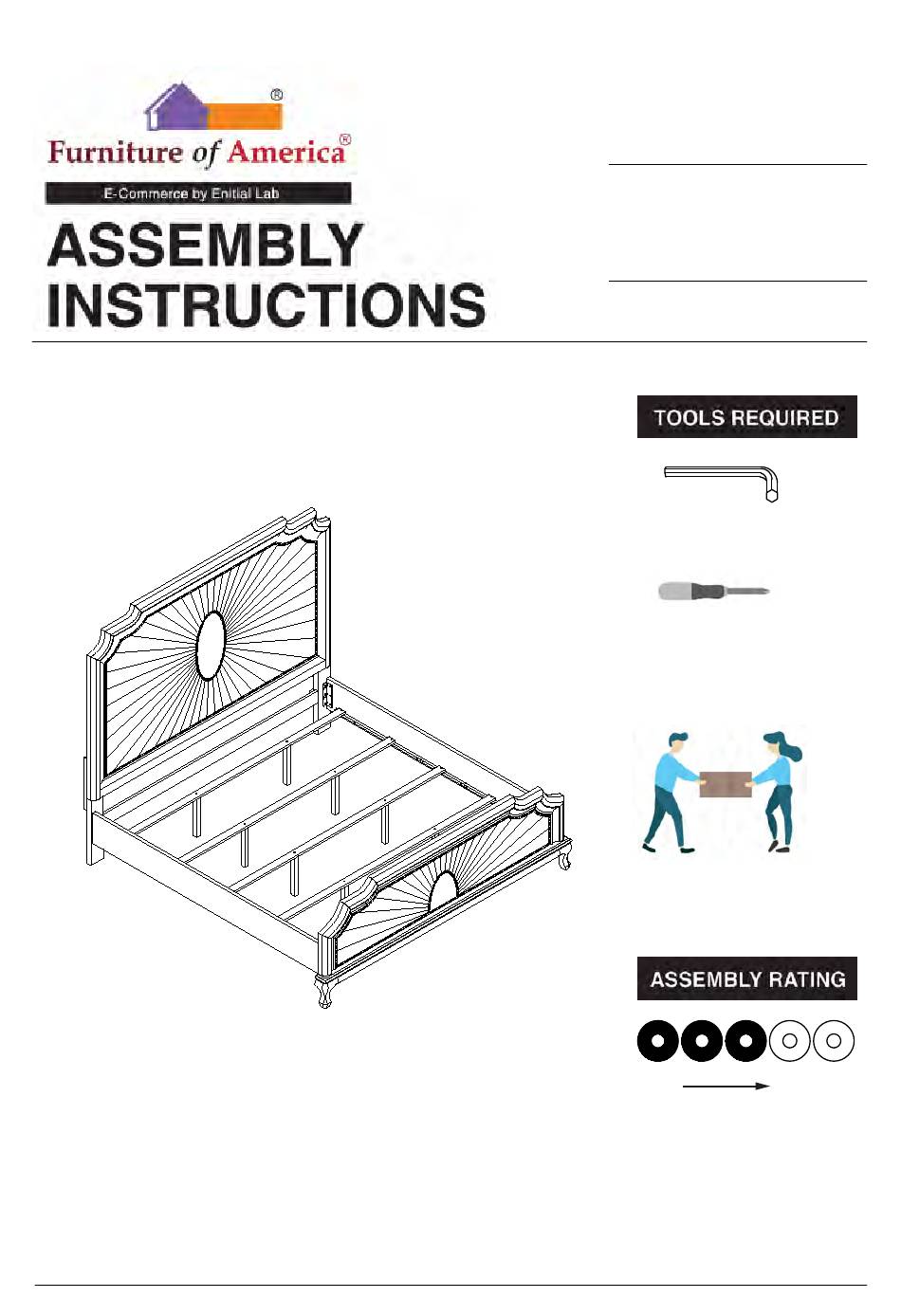

- Page 1 MODEL # CM7864EK Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 3 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 9...
- Page 5 CM7864EK #1 1pc #2 2pcs #3 1pc #4 1pc #5 2pcs #6 4pcs #7 8pcs #8 2pcs Ø1/4" #A 16pcs #B 4pcs #C 20pcs #D 20pcs Bolt #E 3 pc s #F 8pcs #G 12pcs #4 x 5 / 9...
- Page 6 CM7864 EK is packed in 3 cases Disignation Part Hardware Carton #A x 16pcs Headboard #C x 16pcs #D x 16pcs CM7864 K -HB Headboard Leg (L&R) #E x 1pc Headboard bottom rail #B x 4pcs Footboard #C x 4pcs #D x 4pcs Footboard Leg(L&R) #E x 1pc...
- Page 7 ASSEMBLY INSTRUCTIONS Part #1 x1pc Align HB legs (#2R/L) to the headboard Part #2 x2pcs (#1) and HB support (#3), then secure Part #3 x1pc by using bolts (#A) with washers (#C,D). Hardware #A x16pcs Hardware #C x16pcs Hardware #D x16pcs Part #4 x1pc Align legs (#5) to the footboard (#4),...
- Page 8 ASSEMBLY INSTRUCTIONS Align side rails (#8) to the headboard (#1) and footboard (#4), then secure by using bolts (#G). Part #8 x2pcs Hardware #G x12pcs Attach support legs (#7) to the slats (#6). P art #6 x4pcs Part # 7 x8pcs 8 / 9...
- Page 9 ASSEMBLY INSTRUCTIONS Align slats (#6) to the side rails (#8), then secure by using screws (#F). Hardware #F x8pcs 9 / 9...
