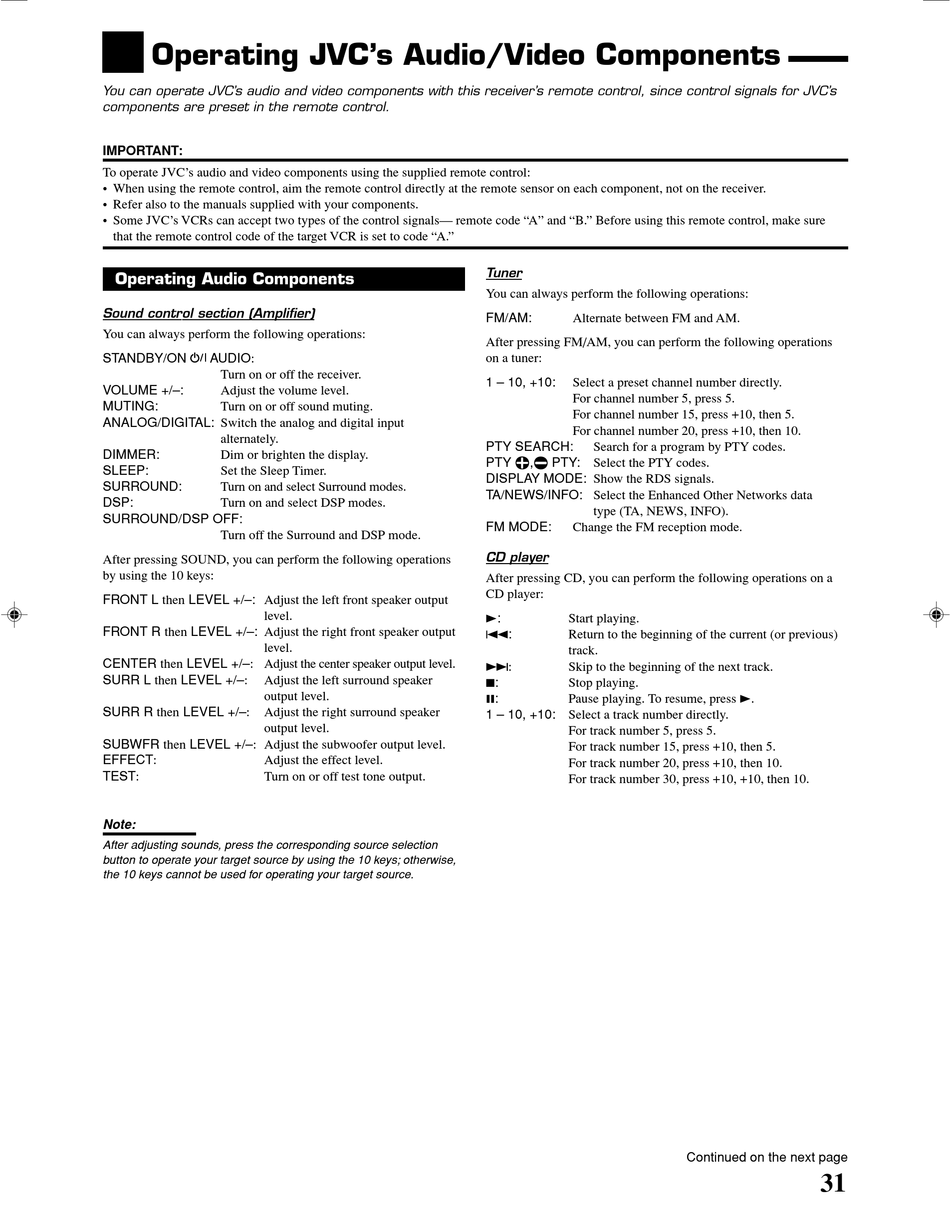

Operating JVC's Audio/Video Components

You can operate JVC's audio and video components with this receiver's remote control, since control signals for JVC's
components are preset in the remote control.
IMPORTANT:
To operate JVC's audio and video components using the supplied remote control:
• When using the remote control, aim the remote control directly at the remote sensor on each component, not on the receiver.
• Refer also to the manuals supplied with your components.
• Some JVC's VCRs can accept two types of the control signals— remote code "A" and "B." Before using this remote control, make sure
that the remote control code of the target VCR is set to code "A."

Operating Audio Components

Sound control section (Amplifier)
You can always perform the following operations:
STANDBY/ON AUDIO:
Turn on or off the receiver.
VOLUME +/–: Adjust the volume level.
MUTING:
Turn on or off sound muting.
ANALOG/DIGITAL: Switch the analog and digital input
alternately.
DIMMER:
Dim or brighten the display.
SLEEP: Set the Sleep Timer.
SURROUND: Turn on and select Surround modes.
DSP:
Turn on and select DSP modes.
SURROUND/DSP OFF:
Turn off the Surround and DSP mode.
After pressing SOUND, you can perform the following operations
by using the 10 keys:
FRONT L then LEVEL +/–: Adjust the left front speaker output
FRONT R then LEVEL +/–: Adjust the right front speaker output
CENTER then LEVEL +/–: Adjust the center speaker output level.
SURR L then LEVEL +/–:
SURR R then LEVEL +/–:
SUBWFR then LEVEL +/–: Adjust the subwoofer output level.
EFFECT:
TEST:
Note:
After adjusting sounds, press the corresponding source selection
button to operate your target source by using the 10 keys; otherwise,
the 10 keys cannot be used for operating your target source.
level.
level.
Adjust the left surround speaker
output level.
Adjust the right surround speaker
output level.
Adjust the effect level.
Turn on or off test tone output.
Tuner
You can always perform the following operations:
FM/AM:
Alternate between FM and AM.
After pressing FM/AM, you can perform the following operations
on a tuner:
1 – 10, +10:
Select a preset channel number directly.
For channel number 5, press 5.
For channel number 15, press +10, then 5.
For channel number 20, press +10, then 10.
PTY SEARCH: Search for a program by PTY codes.
PTY 9,( PTY: Select the PTY codes.
DISPLAY MODE: Show the RDS signals.
TA/NEWS/INFO: Select the Enhanced Other Networks data
type (TA, NEWS, INFO).
FM MODE:
Change the FM reception mode.
CD player
After pressing CD, you can perform the following operations on a
CD player:
3:
Start playing.
4:
Return to the beginning of the current (or previous)
track.
¢:
Skip to the beginning of the next track.
7:
Stop playing.
8: Pause playing. To resume, press 3.
1 – 10, +10: Select a track number directly.
For track number 5, press 5.
For track number 15, press +10, then 5.
For track number 20, press +10, then 10.
For track number 30, press +10, +10, then 10.
Continued on the next page
31
