VERSION # 21-07-28
1 / 10
MODEL #
CM3145T
Questions?
GIVE US A CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PT)
Allen Wrench
(Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM3145T
Summary of Contents for Furniture of America CM3145T

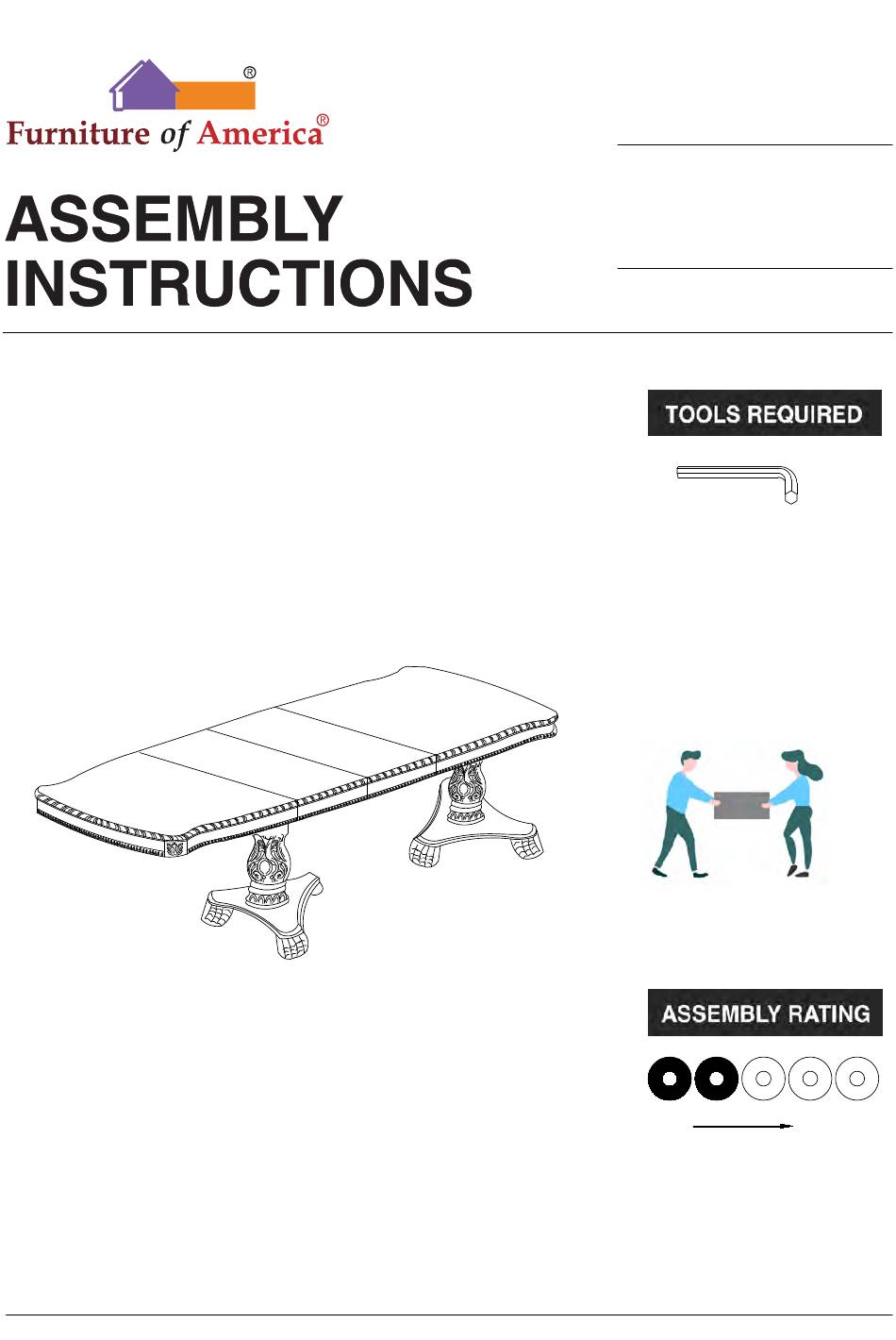

- Page 1 MODEL # CM3145T Questions? GIVE US A CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PT) Allen Wrench (Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 1 0...
- Page 5 TABLE CM3145T #1 1pc #2 2pcs #3 2pcs Leaf Table Top Base #4 2pcs #5 6pcs #6 2pcs feet plate pedestal #C 6pcs #A 12pcs #B 14pcs #D 32pcs Bolt Bolt Bolt Lock Washer Ø5/16" x 2-1/4" Ø5/16" x 1-1/2"...
-
Page 6: Exploded View
Exploded View 6 / 10... - Page 7 CM3145T is packed in 2 cases Carton Disignation Part Hardware #A x 12pcs Table Top #B x 14pcs #C x 6pcs #D x 32pcs Leaf (2pcs) CM3145T-1 #E x 32pcs #F x1pc Plate (2pcs) Base (2pcs) Pedestal (2pcs) CM3145T-2 Feet (6pcs)
- Page 8 ASSEMBLY INSTRUCTIONS Align feet (#5) to the pedestal (#4), then secure by using bolts (#A,C) with washers (#D,E) as shown in the diagram. Part #4 x1pc Part #5 x3pcs Hardware #A x3pcs Hardware #C x3pcs Hardware #D x6pcs Hardware #E x6pcs Align pedestal to the base (#3), then secure by using bolts (#A) with washers (#D,E).
- Page 9 ASSEMBLY INSTRUCTIONS Align plate (#6) to the base, then secure by using bolts (#B) with washers (#D,E). Part #6 x1pc Hardware #B x3pcs Hardware #D x3pcs Hardware #E x3pcs Align plates (#6) onto table top (#1), then secure by using bolts (#B) with washers (#D,E).
- Page 10 ASSEMBLY INSTRUCTIONS Use locking mechanism on the bottom of the table top. Part #2 x2pcs OPEN LOCK 10 / 10...
