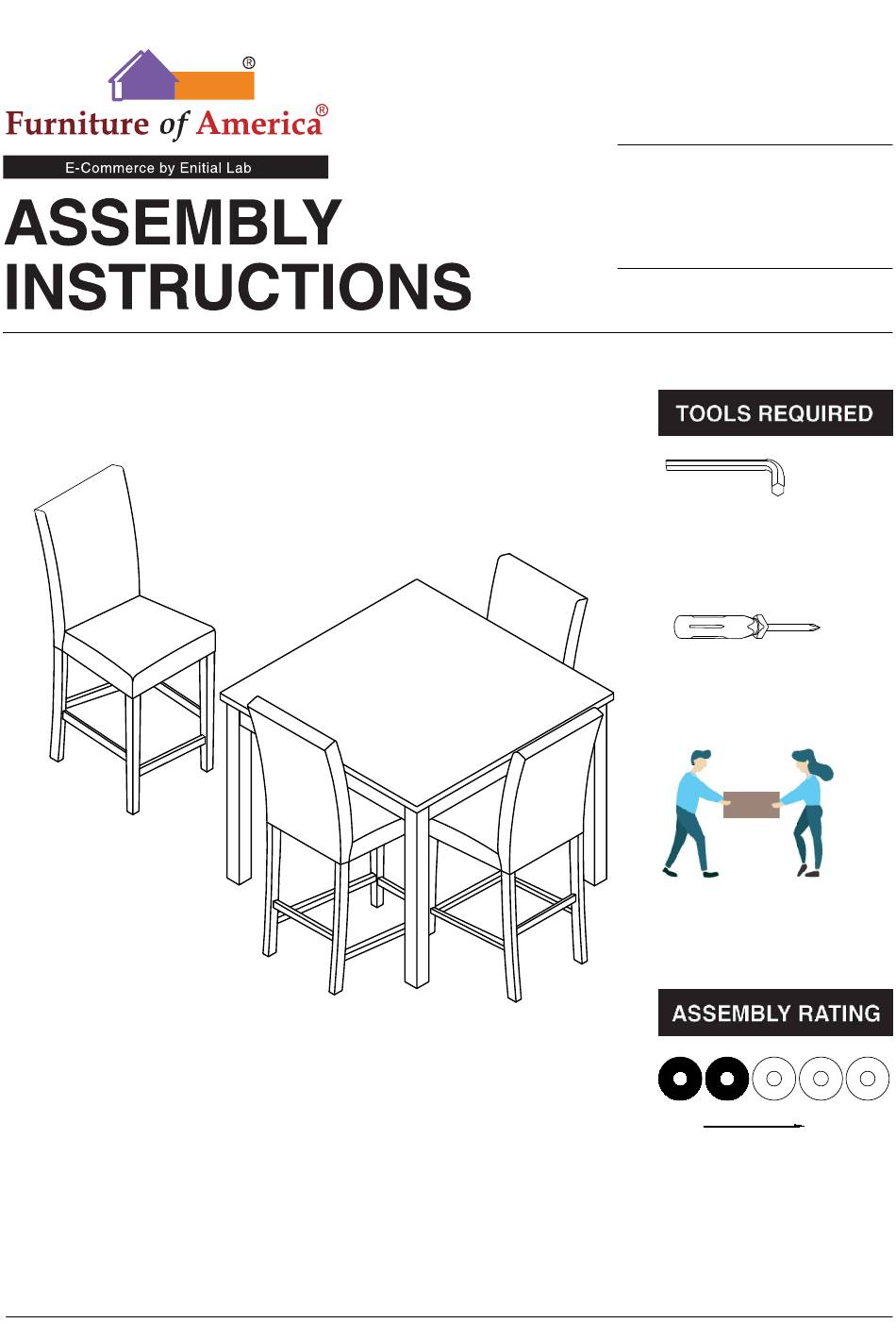

VERSION
# 21-03-25
1 / 11
MODEL #
CM3143PT-5PK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Philip Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM3143PT-5PK
Summary of Contents for Furniture of America CM3143PT-5PK
- Page 1 MODEL # CM3143PT-5PK Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Philip Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 11...
- Page 5 TABLE CM3143PT-5PK #1 1pc #2 4pcs Table Top Table Legs #A 8pcs #B 8pcs #C 8pcs #D 1pc Allen Wrench 5 mm Flat Washer Lock Washer Bolt Ø5/16" x 2"-1/4" Ø5/16" Ø5/16" 5 / 11...
- Page 6 ASSEMBLY INSTRUCTIONS Align table legs (#2) to the table top (#1), then secure by using bolts (#A) with washers (#B,C). Part #1 x1pc Part #2 x4pcs Hardware #A x8pcs Hardware #B x8pcs Hardware #C x8pcs 6 / 11...
- Page 7 CHAIR CM3143PT-5PK #1 1pc x4 #2 1pc x4 #3 2pcs x4 Front Leg(R/L) Backrest Chair Seat #5 2pcs x4 #4 1pc x4 Stretcher(R/L) Front Stretcher #A 4pcs x4 #B 4pcs x4 #C 2pcs x4 #D 6pcs x4 Bolt Ø5/16" x 2"-1/4"...
-
Page 8: Exploded View
Exploded View 8 / 11... - Page 9 ASSEMBLY INSTRUCTIONS Align seat (#2) to the chair back (#1), then secure the middle holes Part #1 x1pc by using bolts (#C) with washers Part #2 x1pc (#E,F). Hardware #C x2pcs Hardware #E x2pcs Hardware #F x2pcs Hardware #A x4pcs Secure corner holes of the seat Hardware #E x4pcs...
- Page 10 ASSEMBLY INSTRUCTIONS Align stretchers (#5R/L) to the chair back (#1). Part #5 x2pcs Align front legs (#3R/L) to the Part #3 x2pcs stretchers (#4,5R/L) and seat Part #4 x1pc (#2), then secure the front legs Hardware #B x4pcs (#3R/L) to the seat by using bolts (#B) with washers (#E,F).
- Page 11 ASSEMBLY INSTRUCTIONS Secure stretchers to legs by using screws (#D). Hardware #D x6pcs 11 / 11...
