Furinno Lucca 19153H Assembly Instruction

Furinno Lucca 19153H Assembly Instruction

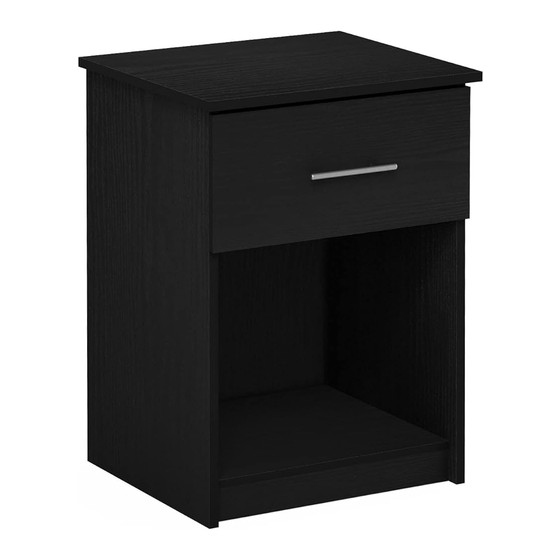

Nightstand with one drawer

Advertisement

Quick Links

Recommended Maximum Weight
15
20
WARNING:
>This unit has been designed to
support the maximum loads shown.
Exceeding these load limits could
cause sagging, instability, product
collapse, and/or serious injury.
>DO NOT allow children to climb on
unit.
> Put heavier items on lower shelves.
10
*Unit in Pound(lbs.)
No
Sitting
8
Approx. 30 minutes
Recomm. 1 Person
Tool Required
Tool Required
Customer Support
NEED HELP? For replacement requests or product inquiries,
please contact our Customer Service Team by emailing us at
support@furinno.com. Thank you for selecting Furinno!
www.furinno.com
Assembly Instruction
Furinno Lucca Nightstand With One Drawer
MODEL
: 19153H
19153H20210810
