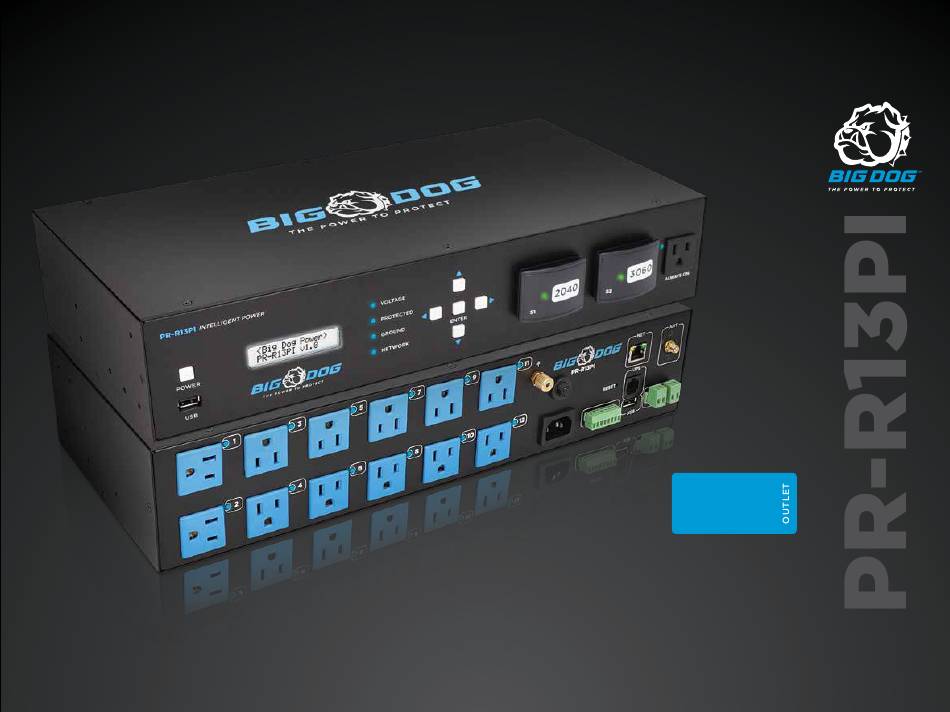

- Page 1 INTELLIGENT RACK MOUNT POWER DISTRIBUTION UNIT...
- Page 2 Introduction Thank you for purchasing the PR-R13PI. Your new Power Distribution Unit (PDU) by Big Dog Power provides filtered AC power to your equipment. 12 individually controlled outlets provide up to 5100 Joules of surge Protection. Wi-Fi and Wired LAN connections allow for flexibility with placement and network connectivity.
- Page 3 Features 12 individually controlled outlets • 1 always on Front outlet • Rack Mountable 2U • Self-Healing functions for network • connected equipment Surge Mileage: Track when a Surge Event happens and the • remaining health of the surge protection Replaceable Surge modules •...
- Page 4 Big Dog Power™ by Metra Home Theatre, LLC Limited Product Warranty and Connected Equipment Limited Warranty Valid in the United States and Canada CONTRACTS); LOSS OF THE USE OF MONEY; LOSS OF ANTICIPATED SAVINGS; LOSS OF THIS WARRANTY DEFINES ETHEREAL BUSINESS;...
-
Page 5: Limited Product Warranty
Proof of purchase is required. product to be free of material defects for a Damage caused by accidents, abuse, misuse period of: (1) 5 years for the PR-R13PI, PR- or modification of the surge suppressor will V7PI and PR-W3PI products, (2) 3 years for render this warranty null and void. - Page 6 Connected Equipment Limited Warranty: This is a limited warranty, subject to the conditions, limitations and exclusions identified herein. Ethereal Home Theatre, LLC warrants to the original purchaser of this surge suppressor that it will at its option, pay the fair market value of, repair, or replace, any home entertainment equipment which is damaged by a transient surge while properly connected through the Ethereal Home Theatre,...
- Page 7 Anatomy A. Configurable Power Button H. 12 Individually controlled Outlets Q. I/O B. LCD Display 1x Contact Sensor Input I. Grounding pin 1x Relay Output C. Display Navigation Buttons J. 15-amp Circuit Breaker R. Surface Mount Location for Rack Ears D.
-
Page 8: Led Indicators
LED Indicators “G” or Ground ON: PDU is grounded properly OFF: PDU is not grounded “P” or Power BLUE: Good / Protected and Clean power RED: Bad / No Protection “N” or Network BLINKING RED: No Network Connection SOLID BLUE: Good Network Connection RAPID BLINKING RED: PDU failure requires reboot or reset Outlet Status ON: Outlet is On... -
Page 9: Installation
Installation Installation Rack Mount Surface Mount 1. Use the included screws to attach the Rack Mount ears to 1. Use the included screws to attach the included Rack Mount ears to PDU at the the PDU near the face of the PDU secondary location You can find the secondary mount holes halfway towards the 2. -
Page 10: Shelf Mount
Connected equipment power cables 4. Place PDU on Shelf 3. Insert the female end of the included 6ft power cord into the PR-R13PI 4. Plug in the Male end of the included 6ft power cord into the main outlet on your wall... -
Page 11: Cloud Setup
2. Click the Add New button Restricted Access Area 3. Click “ADD PDU” “Les matériels sont destinés à être installés 4. Add the PR-R13PI to your account using the MAC address of the PDU dans des EMPLACEMENTS À ACCÈS RESTREINT”... -
Page 12: Important Safety Instructions
Important Safety Instructions Caution Read and observe the following safety points Potential injury at all times. Do not use this product with extension Notice cords, multi-outlet power strips, multi-outlet For indoor use only. Internal components are extenders, or UPS devices (other than a Big not sealed from the environment. -
Page 13: Fcc Warning
NEMA 5-15 (three-prong grounded) outlet No User-Serviceable Parts Inside only. Do not force the plug into an outlet that If the PDU is not operating properly, do not is not designed to accept it. Never dismantle remove any part of the unit (cover, etc.) the plug or to alter the power cord, and do for repair. - Page 14 FCC Part15C+RSS247 Reorient or relocate the receiving antenna. • To assure continued FCC compliance: Increase the separation between the • equipment and receiver. 1. Any changes or modifications not expressly Connect the equipment into an outlet on approved by the grantee of this device could •...
- Page 15 © Copyright 2022 Ethereal Home Theater, LLC. This device complies with Industry Canada An online purchase registration is available license-exempt RSS standard(s). Operation at www.metraav.com. Registering your surge is subject to the following two conditions: protector at the time of purchase can make the (1) this device may not cause interference, process a lot easier if you ever need to file a and (2) this device must accept any...
-
Page 16: Specifications
INTELLIGENT Specifications: POWER OPERATING TEMPERATURE: 14˚F-104˚F (-10˚C-40˚C) SURGE PROTECTION: 5100 Joule (Replaceable) EXTERNAL ANTENNA: Yes We’ve combined all of the features integrators need into one unique power OUTLETS (TOTAL): 13 outlets distribution unit to deliver surge protection, ALWAYS-ON OUTLET: 1 (front) service outlet remote control, smart home integration, SWITCHED OUTLETS: 12 (rear) rack temperature management, and more.
