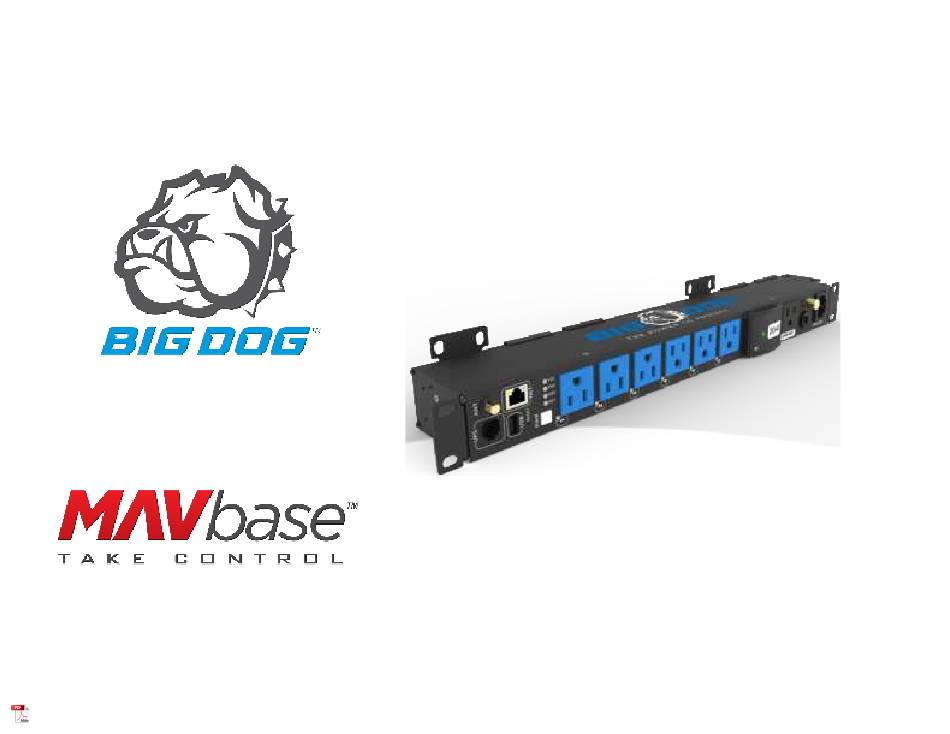

- Page 2 INTRODUCTION Thank you for purchasing the PR-V7PI. Your new Power Distribution Unit (PDU) by Big Dog Power provides filtered AC power to your equipment. 6 individually controlled outlets provide up to 2040 Joules of surge Protection. Wi-Fi and Wired LAN connections give flexibility with placement and network connectivity. The built in Self-Healing functions of the PR-V7PI will keep your network connected equipment going by automatically resetting the power going to the outlet.
-
Page 3: Led Indicators
J. Recessed Reset button K. Configurable Power Button L. Outlet Status LEDs a. See LED functions for more information M. Loop Out Outlet a. NOTE: This outlet is NOT surge protected, it is intended to be used with additional PR-V7PI units. N. -
Page 4: Installation
INSTALLATION Rack Mount 1U Horizontal Step 1) Use the included screws to attach the Rack Mount ears to the PDU near the face of the PDU Step 2) Slide the PDU into the rack where you intend to mount it Step 3) Secure the PDU using the appropriate screws for your rack Rack Mount Step 2... -
Page 5: Surface Mount
Vertical Rack Mount Vertical Rack Mount Step 2 Vertical Rack Mount Step 3 Vertical Rack Mount Step 1 Step 1 Surface Mount Step 1) Use the included screws to attach the included Rack Mount ears to PDU a) Additional Mounting holes can be found at either end and along the side of the PDU Step 2) Install appropriate surface mount... - Page 6 Wi-Fi Setup If using the Wi-Fi connection, follow these instructions Step 1) Plug in the included power cable to the PDU and to the AC mains outlet on the wall. a) Wait approximately 15-30 seconds, the power button will begin to flash. Step 2) Scan for Wi-Fi on your Wi-Fi enabled device with a web browser Step 3)
-
Page 7: Surge Protection
Cloud setup Step 1) Log in to your MAVbase.com account Step 2) Click the Add New button a) Then click “ADD PDU” Step 3) Add the PR-V7PI to your account using the MAC address of the PDU Surge Protection Protected Circuit(s) Replaceable 2040 Total Joule Protection from the Line to Neutral to Ground circuit. - Page 8 Do not use this product with extension cords, multioutlet power strips, multioutlet extenders, or UPS devices (other than a Big Dog Power UPS). The power capacity of these accessories can be overloaded by this product and may result in a risk of fire, or property damage.
-
Page 9: Fcc Warning
Caution – Proper cleaning In general, the only cleaning necessary for is a light dusting. Unplug the PDU from the wall outlet before cleaning it. Do not use liquid or aerosol cleaners. FCC WARNING WARNING!! Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. - Page 10 This radio transmitter [27941-PRV7PI] has been approved by Innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device.
