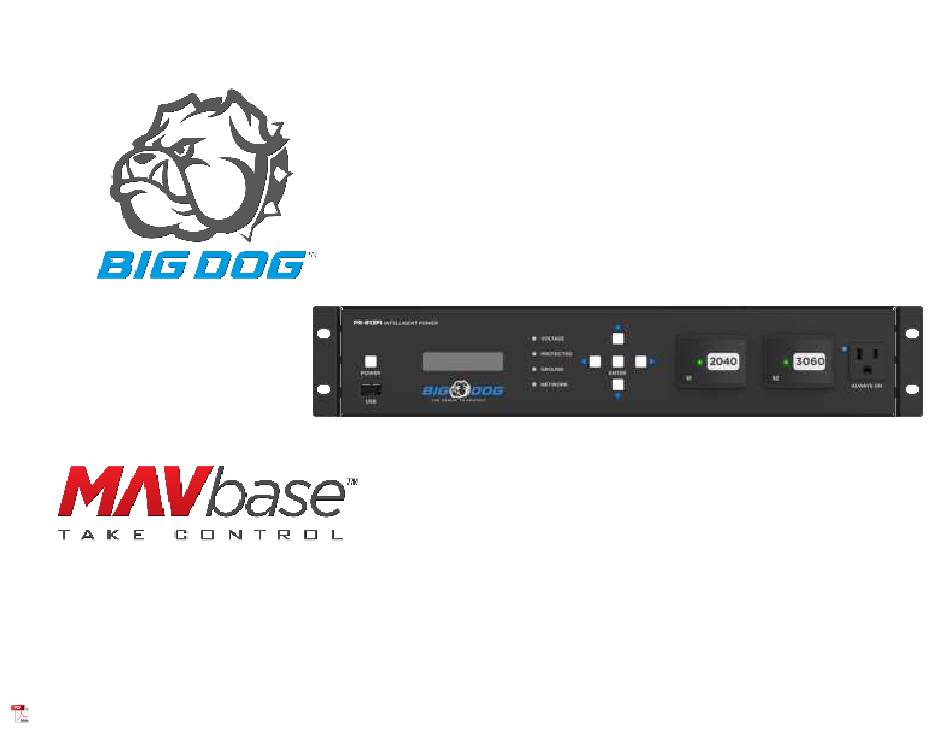

- Page 1 PR-R13PI...
- Page 2 INTRODUCTION Thank you for purchasing the PR-R13PI. Your new Power Distribution Unit (PDU) by Big Dog Power provides filtered AC power to your equipment. 12 individually controlled outlets provide up to 5100 Joules of surge Protection. Wi-Fi and Wired LAN connections give flexibility with placement and network connectivity. The built in Self-Healing functions of the PR-R13PI will keep your network connected equipment going by automatically resetting the power going to the outlet.
- Page 3 Anatomy A. Configurable Power Button B. LCD Display C. Display Navigation Buttons D. Replaceable Surge Modules a. S1 – 2040 Joule Rating b. S2 – 3060 Joule Rating E. USB Power Supply a. 2.4 amp 5v F. At a glance status LEDs a.
-
Page 4: Led Indicators
LED Indicators “G” or On: PDU is grounded properly Ground Off: PDU is not grounded “P” or Blue: Good / Protected and Clean power Power Red: Bad, No Protection “N” or Blinking Red: No Network Connection Network Solid Blue: Good Network Connection Rapid Blinking Red: PDU failure requires reboot or reset Outlet... -
Page 5: Surface Mount
Surface Mount Step 1) Use the included screws to attach the included Rack Mount ears to PDU at the secondary location a) You can find the secondary mount holes halfway towards the back of the PDU Step 2) Install appropriate surface mount screws (not included) through the Rack Mount ears into the desired surface Surface Mount Step 1 Surface Mount Step 2 Shelf Mount... -
Page 6: Connections And Use
Connected equipment power cables Step 3) Insert the female end of the included 6ft power cord into the PR-R13PI Step 4) Plug in the Male end of the included 6ft power cord into the mains outlet on your wall. -
Page 7: Cloud Setup
Click the Add New button a) Then click “ADD PDU” Step 3) Add the PR-R13PI to your account using the MAC address of the PDU Surge Protection Protected Circuit(s) Replaceable 5100 Total Joule Protection from the Line to Neutral to Ground circuit. -
Page 8: Important Safety Instructions
Do not use this product with extension cords, multioutlet power strips, multioutlet extenders, or UPS devices (other than a Big Dog Power UPS). The power capacity of these accessories can be overloaded by this product and may result in a risk of fire, or property damage. -
Page 9: Fcc Warning
Warning – Power cord safety Do not place the power cord near areas with heavy foot traffic (for example, hallways). Do not create a trip hazard with the power cord. If the power cord’s protective jacket rips or frays, exposing the internal wiring or shielding, disconnect it from the power source and replace the power cord immediately. - Page 10 Notice: (1) An unshielded-type power cord is required in order to meet FCC emission limits and also to prevent interference to the nearby radio and television reception. It is essential that only the supplied power cord by used. (2) Use only shielded cables to connect I/O devices to this equipment.
- Page 11 French: Cet appareil radio est conforme au CNR-247d’Industrie Canada. L’utilisation de ce dispositif est autorisée seulement aux deux conditions suivantes : (1) il ne doit pas produire de brouillage, et (2) l’utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.
