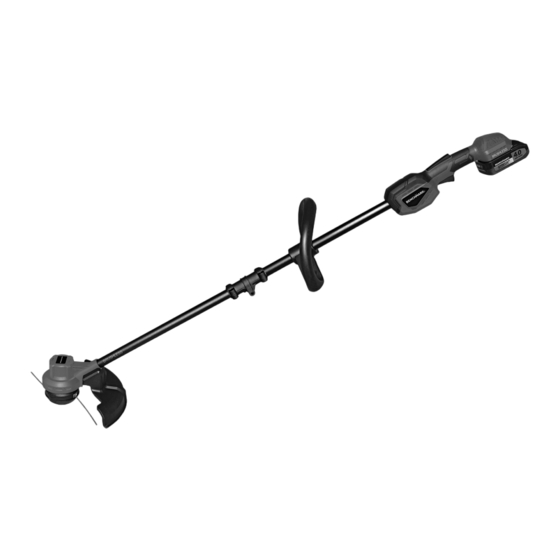

20V MAX BRUSHLESS
E114847
JD5515
WEAR CSA APPROVED
EYE PROTECTION
5073-039f EnProdManual P.indd 1
5073-039f EnProdManual P.indd 1
GRASS TRIMMER
Includes 1 battery & 1 charger
5 Year Limited Warranty on tool
3 Year Limited Warranty on battery and charger
READ ALL INSTRUCTIONS BEFORE FIRST USE.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
KEEP AWAY FROM CHILDREN.
Maximum initial battery voltage (measured without a load)
is 20 volts. Nominal voltage is 18 volts.
WEAR EAR
PROTECTION
WEAR A
FACE MASK
2020-12-17 1:58 PM
2020-12-17 1:58 PM
Advertisement
Table of Contents
Related Manuals for Benchmark 5073-039
Summary of Contents for Benchmark 5073-039
- Page 1 20V MAX BRUSHLESS GRASS TRIMMER Includes 1 battery & 1 charger 5 Year Limited Warranty on tool 3 Year Limited Warranty on battery and charger READ ALL INSTRUCTIONS BEFORE FIRST USE. KEEP THIS MANUAL FOR FUTURE REFERENCE. KEEP AWAY FROM CHILDREN. E114847 Maximum initial battery voltage (measured without a load) JD5515...
-
Page 2: Product Specifications
PRODUCT SPECIFICATIONS GRASS TRIMMER Head speed 7,600 RPM (no load) Head type Dual line bump feed system Head type 0.08" Cutting swath 12" (30 cm) maximum Weight 5 lbs 10 oz BATTERY AND CHARGER Battery voltage 20 V Max add 4Ah Li-ion (Maximum charged battery voltage, measured without load, is 20V with a nominal value of 18V) Charger... -
Page 3: Table Of Contents
5073-039 20V MAX BRUSHLESS GRASS TRIMMER TABLE OF CONTENTS Product Specifications .................. 1 Table of Contents ..................2 General Safety Warnings ................3 Electric Gardening Tool Safety ............... 5 Specific Safety Rules ..................7 Battery & Charger Safety................10 Battery Pack Recycling ................11 Symbols ...................... -
Page 4: General Safety Warnings
GENERAL SAFETY WARNINGS IMPORTANT SAFETY INSTRUCTIONS Read and understand all safety and operational instructions. Failure to follow the safety rules listed below and other basic safety precautions may result in serious personal injury. Keep this manual, sales receipts, and applicable warranty forms for future reference. - Page 5 5073-039 20V MAX BRUSHLESS GRASS TRIMMER SYMBOL MEANING Always wear non-slip gloves that fit properly to protect your hands and to help you grip the tool. Always wear sturdy clothing with long sleeves and long pants. Never operate the tool while wearing shorts, short sleeve shirt or while shirtless.
-
Page 6: Electric Gardening Tool Safety
ELECTRIC GARDENING TOOL SAFETY GENERAL SAFETY WARNINGS WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. General Electric Gardening Tool Safety Warnings – Work Area Safety Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. - Page 7 5073-039 20V MAX BRUSHLESS GRASS TRIMMER Prevent unintentional starting. Ensure the switches are in the off position before connecting the battery to the power tool or plugging it into the power supply. Never pick up or carry the power tool with your finger on the trigger switch.
-
Page 8: Specific Safety Rules
SPECIFIC SAFETY RULES WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contain chemicals known to cause cancer, birth defects, or other reproductive harm. Some samples of these chemicals are: • lead from lead-based paints, •... - Page 9 5073-039 20V MAX BRUSHLESS GRASS TRIMMER WARNING: Never use fixed blades or metal saw blades with this trimmer. Serious injury may result. Never use wire or metal-reinforced line or other material in place of the polymer trimmer line. Pieces of wire or metal reinforced line can break off and can be thrown with great force striking against and injuring the operator or bystanders.
- Page 10 WARNING: To reduce the potential of serious injury, cut only from your left toward your right. Cutting on the right side of the deflector shield and moving directionally towards your right will cause the debris and objects to be thrown predominately away from the operator thereby reducing the risk of personal injury to the operator, although the risk of injury due to ricochet is not lessened.
-
Page 11: Battery & Charger Safety
5073-039 20V MAX BRUSHLESS GRASS TRIMMER BATTERY & CHARGER SAFETY WARNING: Only use the diagnostic charger supplied with this kit to charge the 20V Li-ion battery. Charging any other batteries may damage the charger and possibly cause serious injury. Do not store or carry the battery in a manner in which metal objects could contact the exposed metal end. -
Page 12: Battery Pack Recycling
BATTERY PACK RECYCLING To preserve our natural resources, please recycle or dispose of batteries properly. The batteries charged by this charger may contain chemicals and metals that are harmful to the environment. Never dispose of rechargeable batteries in your normal household garbage or in landfill sites as they will add to the pollution of the environment. -
Page 13: Know Your Grass Trimmer
5073-039 20V MAX BRUSHLESS GRASS TRIMMER KNOW YOUR GRASS TRIMMER 1. Bump knob 2. Guard 3. Hinge 4. Assist handle 5. Lock off switch 6. Battery release button 7. Battery 5350-011 8. Main handle 9. Variable speed trigger switch Battery 5350-011... -
Page 14: Checking The Battery Charger Status
CHECKING THE BATTERY CHARGER STATUS The level of charge remaining in the battery can be checked by using the battery LED power indicator that is contained on the end of the battery. NOTE: The battery charge remaining may be checked while the battery is installed in the tool with the ON/OFF switch turned OFF. - Page 15 5073-039 20V MAX BRUSHLESS GRASS TRIMMER 6. It is normal for the battery charger to hum and be warm to the touch during operation. 7. If the battery pack does not charge properly, check to make sure the electrical outlet is “live”.
- Page 16 BEFORE OPERATING TRIMMER-UNFOLD THE TOOL SHAFT: 1. Remove battery pack from trimmer. 2. Remove screw from shaft Fig. 5 (1). 3. Unfold the shaft. 4. Insert the screw into the shaft Fig.6 (1) and then tighten the screw with the Allen key supplied Fig. 6 (2) to lock the shaft into place.
- Page 17 5073-039 20V MAX BRUSHLESS GRASS TRIMMER Adjusting the Assist handle (Fig.7b). NOTE: The assist handle mounting bracket can be slid up or down the shaft, rotated from side to side or tilted forward or backward to place the assist handle in the most comfortable position.
- Page 18 LOCK-OFF AND TRIGGER SWITCHES The grass trimmer is equipped with both a lock-off and trigger switch. To turn the grass trimmer ON: 1. Press the lock-off switch (2) Fig. 10. 2. While continuing to press the lock-off switch, squeeze the variable speed trigger switch (1).
- Page 19 5073-039 20V MAX BRUSHLESS GRASS TRIMMER INSTALLING THE REPLACEMENT SPOOL Remove all packaging from the replacement spool. 1. Pull the loose ends of the trimmer lines out of the retaining slots in the spool. NOTE: Be sure to feed the...
- Page 20 9. Align the notches of the spool from which the lines protrude with the eyelets in the spool retainer and position the spool in the retainer (FIG 17). 10. Holding the spool and spool retainer, grasp one end of the line and pull it to release the line from the notch in the eyelet (FIG 18).
- Page 21 5073-039 20V MAX BRUSHLESS GRASS TRIMMER Slot FIG. 20 WARNING: For safety reasons, the operator must read the sections of this Owner’s Manual entitled GENERAL SAFETY WARNINGS, ELECTRIC GARDENING TOOL SAFETY, SPECIFIC SAFETY RULES, BATTERY & CHARGER SAFETY, BATTERY PACK RECYCLING and SYMBOLS before using this grass trimmer.
- Page 22 NOTE: The trimming line will easily remove grass and weeds from around walls, fences, trees and flower beds, but it can also cut the tender bark of trees or shrubs, scar fences, etc. Be extremely careful when trimming near objects that can be easily damaged by the trimmer line.
- Page 23 5073-039 20V MAX BRUSHLESS GRASS TRIMMER CORRECTING A JAMMED OR SHORT TRIMMER LINE Under certain conditions, the trimmer line may become jammed or too short. In either case, the line may fail to advance properly. If this happens, correct this...
-
Page 24: Maintenance
MAINTENANCE GENERAL WARNING: When servicing, use only identical replacement parts. The use of any other part may create a hazard or cause product damage. DO NOT use solvents when cleaning plastic parts. Plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. -
Page 25: Exploded View
5073-039 20V MAX BRUSHLESS GRASS TRIMMER EXPLODED VIEW 5073-039f EnProdManual P.indd 24 5073-039f EnProdManual P.indd 24 2020-12-17 1:59 PM 2020-12-17 1:59 PM... -
Page 26: Parts List
PARTS LIST WARNING: When servicing, use only original equipment replacement parts. The use of any other parts may create a safety hazard or cause damage to the brushless power washer. Any attempt to repair or replace electrical parts on this power washer may create a safety hazard unless repairs are performed by a qualified technician. -
Page 27: Warranty
BENCHMARK BRUSHLESS GRASS TRIMMER WARRANTY If this Benchmark tool fails due to a defect in material or workmanship within five years from the date of purchase, return it to any Home Hardware store with the original bill of sale for exchange. 3 Year warranty for the battery and charger. - Page 28 Includes 1 battery & 1 charger 5 Year Limited Warranty on tool 3 Year Limited Warranty on battery and charger 5073-039 BENCHMARK TOOLS CANADA Made in China ST. JACOBS, ONTARIO N0B 2N0 © 2020 Home Hardware Stores Limited CUSTOMER SERVICE/TECH SUPPORT...
Need help?
Do you have a question about the 5073-039 and is the answer not in the manual?
Questions and answers
How do I rewire the spool
To rewire the spool for Benchmark part number 5073-039, follow these steps:
1. Remove all packaging from the replacement spool.
2. Pull the loose ends of the trimmer lines out of the retaining slots in the spool.
- Make sure the lines are in the notches on each side of the spool to prevent unwinding.
3. Unwind about 5" (12.7 cm) of line from the spool.
4. Thread the loose ends through the eyelets in the spool housing.
5. While gently pulling on the lines, slide the spool onto the housing spindle fully.
6. Insert the locking buttons of the spool cap into the spool housing.
7. Press the spool cap until the locking buttons click into place.
8. Bump the trimmer to advance the line as needed.
This answer is automatically generated
Do I tap the bottom to extend the twine
how do you install the assist handle
Ma batterie indique une charge pleine mais mon coupe bordure ne fonctionne pas. Est-ce qu'il y a un bris sur l'appareil ? Si oui comment dois-je procéder pour la garantie. Merci
