Benchmark 5073-095 Manual

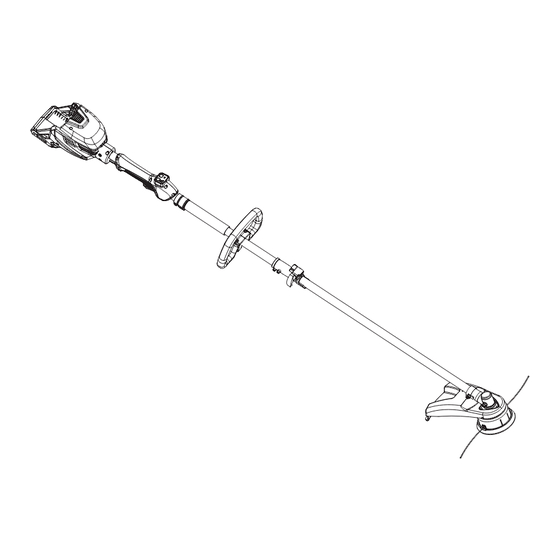

Cordless brushless lawn trimmer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CORDLESS BRUSHLESS
LAWN TRIMMER
5
WEAR CSA APPROVED
EYE PROTECTION
READ ALL INSTRUCTIONS BEFORE FIRST USE.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
KEEP AWAY FROM CHILDREN.
(Excludes battery pack and charger)
WEAR EAR
PROTECTION
5 Year Limited Warranty
WEAR A
FACE MASK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5073-095 and is the answer not in the manual?

Questions and answers

Related Manuals for Benchmark 5073-095

Summary of Contents for Benchmark 5073-095

  • Page 1 CORDLESS BRUSHLESS LAWN TRIMMER 5 Year Limited Warranty (Excludes battery pack and charger) READ ALL INSTRUCTIONS BEFORE FIRST USE. KEEP THIS MANUAL FOR FUTURE REFERENCE. KEEP AWAY FROM CHILDREN. WEAR CSA APPROVED WEAR EAR WEAR A EYE PROTECTION PROTECTION FACE MASK...

  • Page 2: Product Specifications

    PRODUCT SPECIFICATIONS CORDLESS BRUSHLESS LAWN TRIMMER Voltage/Capacity: 60 v d.c. / 2.5 Ah Li-ion Cutting Width 16" / 41 cm Cutting Line Dia. 2.4 mm / 0.095" (2 mm / 0.08" Compatible) Line Feed Dual Line, Tap-Feed Running Speed 3 Speeds, 4500/5000/5500 RPM Motor Brushless Weight...

  • Page 3: Table Of Contents

    5073-095 CORDLESS BRUSHLESS LAWN TRIMMER TABLE OF CONTENTS Product Specifications .................. 2 Table of Contents ..................3 Safety Instructions ..................4 Know Your Trimmer ..................14 Assembly ....................16 Operation ....................18 Storing and Maintenance ................24 Troubleshooting ................... 24 Exploded View ....................

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS IMPORTANT Please read these instructions fully before assembling and operating. DESCRIPTION OF SYMBOLS Symbols are used in this manual to attract your attention to possible risks. The safety symbols and the explanations which accompany them must be perfectly understood.
  • Page 5 5073-095 CORDLESS BRUSHLESS LAWN TRIMMER SAFETY WARNING SYMBOLS SYMBOL MEANING Look for this symbol to point out important safety precautions. It means: Attention! Become Alert! Your Safety Is Involved. Read operator’s manual before operating this machine. Failure to follow directions could result in serious injury.
  • Page 6 WARNING SYMBOLS ON THE CHARGER SYMBOL MEANING The charger is for indoor use only. Protective 5A limited Pole orientation Do not expose and operate the tool in rain. WARNING SYMBOLS ON THE BATTERY PACK SYMBOL MEANING Do not throw into water. Do not throw into fire.
  • Page 7 5073-095 CORDLESS BRUSHLESS LAWN TRIMMER SAFETY WARNINGS & INSTRUCTIONS Read all instructions before using trimmer WARNING To reduce the risk of fire, electric shock, or injury: 1. Replacement Parts - When servicing use only identical replacement parts. 2. Avoid Dangerous Environment - Do not use appliances in damp or wet locations.
  • Page 8 Work area safety 1. Keep work area clean and well lit. Cluttered or dark areas invite accidents. 2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
  • Page 9 5073-095 CORDLESS BRUSHLESS LAWN TRIMMER Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. 4. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
  • Page 10 Battery pack use and care 1. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. 2. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
  • Page 11 5073-095 CORDLESS BRUSHLESS LAWN TRIMMER 10. Take care against injury from any device fitted for cutting the trimmer line length. After extending new trimmer line always return the machine to its normal operating position before switching on. 11. Never fit metal cutting elements. Only use 2.4mm / 0.095" or 2mm / 0.08"...
  • Page 12 4. Do not abuse the charger cord. Never use the cord for carrying, pulling or unplugging the charger. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. 5. Make sure the charger cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.
  • Page 13 5073-095 CORDLESS BRUSHLESS LAWN TRIMMER 6. Do not carry individual battery packs in your pockets or bags, as they could short-circuit against other metal items. 7. If an exposed Li-ion battery pack does start a fire, it will burn even more violently if it comes into contact with water or even the moisture in the air.

  • Page 14: Know Your Trimmer

    KNOW YOUR TRIMMER Power head Auxiliary handle Shaft connector Safety guard Cutting head Speed adjustment button...
  • Page 15 5073-095 CORDLESS BRUSHLESS LAWN TRIMMER PARTS LIST Power head assembly x 1 Line trimmer attachment x 1 Auxiliary handle x 1 Manual x 1 Carefully remove the machine and parts from its packaging. Identify all the parts packaged in the carton against the parts list. Please contact our customer service center at 1-833-818-4111 - Monday through Friday, 9am - 5pm, Eastern Standard Time if anything is missing.

  • Page 16: Assembly

    INTENDED USE The product is intended for cutting weeds, grass or similar soft vegetation in areas that are hard to reach, e.g. under bushes, on slopes and edges. It may not be used to work on unusual thick, dry or wet grass, e.g. pasture grass, or to shred leaves. For safety reasons it is essential to read the entire instruction manual before first operation and to ob- serve all the instructions therein.
  • Page 17 5073-095 CORDLESS BRUSHLESS LAWN TRIMMER Fig. 3 Installing the line trimmer attachment. (See Fig. 3 ) 1. Align the male square shaft inside the line trimmer attachment to the female square hole inside the coupling connector and insert the line trimmer attachment to the coupling connector completely.

  • Page 18: Operation

    Fig. 5 Installing auxiliary handle (See Fig. 5) 1. Remove the bolts on the auxiliary handle. 2. Install the auxiliary handle on the shaft and then tighten the bolts with nut and make sure the auxiliary handle is firmly secured in place. OPERATION Inserting and removing the battery pack To insert the battery pack...
  • Page 19 5073-095 CORDLESS BRUSHLESS LAWN TRIMMER 3. Lift and hold the battery pack while pressing the releasing/locking button again, and then remove the battery pack. ATTENTION: Battery Installation INSTALLATION: Battery lock has 2 positions. Press down firmly until battery is fully inserted.
  • Page 20 Speed adjustment (See Fig. 8) This lawn trimmer has 3 speed settings which can be changed with a press of the button. 1. Ensure the lawn trimmer is switched ON. 2. Press the speed adjustment button and set to your desired cutting speed. 3.
  • Page 21 5073-095 CORDLESS BRUSHLESS LAWN TRIMMER Removing/replacing the cutting bump head WARNING Before performing any assembly, always ensure that the battery pack has been removed. If the nylon cutting line is broken and the nylon spool needs replacing. WARNING Wearing working gloves when doing any replacements.
  • Page 22 Removing /replacing trimmer line 1. Press the release clip ( ) on the cutting bump head,then rotate ( ) the spool cover clockwise and pull ( ) it out. (See Fig.11&Fig 12.) Fig. 11 Press Release clip Rotate Fig. 1 Press Rotate Pull...
  • Page 23 5073-095 CORDLESS BRUSHLESS LAWN TRIMMER 3. Take approximately 4 m / 13.2 ft. of 2.4 mm / 0.095” diameter line and insert the midpoint into the slot bottom in the central rim of the spool. (See Fig.14) Fig. 14 Fig. 15 4.

  • Page 24: Storing And Maintenance

    STORING AND MAINTENANCE WARNING Before performing any repair work, always remove the battery pack and wait until the cutting line has come to a standstill! 1. Do not spray the line trimmer with water because it may destroy the battery pack and the electric motor.
  • Page 25 5073-095 CORDLESS BRUSHLESS LAWN TRIMMER Fault/Malfunction Cause(s) Solution(s) Product does not start. 1. Battery discharged. 1. Remove and recharge the 2. The battery is not battery. correctly located. 2. Remove the battery and 3. Device defective. reinstall into the product, 4.

  • Page 26: Exploded View

    EXPLODED VIEW...

  • Page 27: Parts

    5073-095 CORDLESS BRUSHLESS LAWN TRIMMER PARTS LIST WARNING When servicing, use only original equipment replacement parts. The use of any other parts may create a safety hazard or cause damage to the lawn trimmer. Any attempt to repair or replace electrical parts on this lawn trimmer may create a safety hazard unless repairs are performed by a qualified technician.
  • Page 28 1052795001 Locking ring 2600202001 Hexagon socket head cap screw M5×16 1052785001 Hanging ring 1400235001 Rubber cushion 2600199001 Hexagon socket head cap screw M5×8 2600513004 ST screw 1052282001 Small button 1052281001 Control panel 1002897002 left handle 2401206001 Display board 1052793004 Trigger 1052792004 Lock button 1350273001...

  • Page 29: Warranty

    WARRANTY Benchmark Cordless Brushless Lawn Trimmer If this Benchmark tool fails due to a defect in material or workmanship within five years from the date of purchase, it has a 5-year repair warranty with the original bill of sale. This warranty does not include expendable parts including but not limited to blades, brushes, belts, light bulbs and/or batteries.
  • Page 30 CORDLESS BRUSHLESS LAWN TRIMMER 5 Year Limited Warranty (Excludes battery pack and charger) 5073-095 5140-011 BENCHMARK TOOLS CANADA Made in China ST. JACOBS, ONTARIO N0B 2N0 © 2022 Home Hardware Stores Limited CUSTOMER SERVICE/TECH SUPPORT 1-833-818-4111 * This Benchmark defects in workmanship and materials. See Owner’s Manual for full details.
