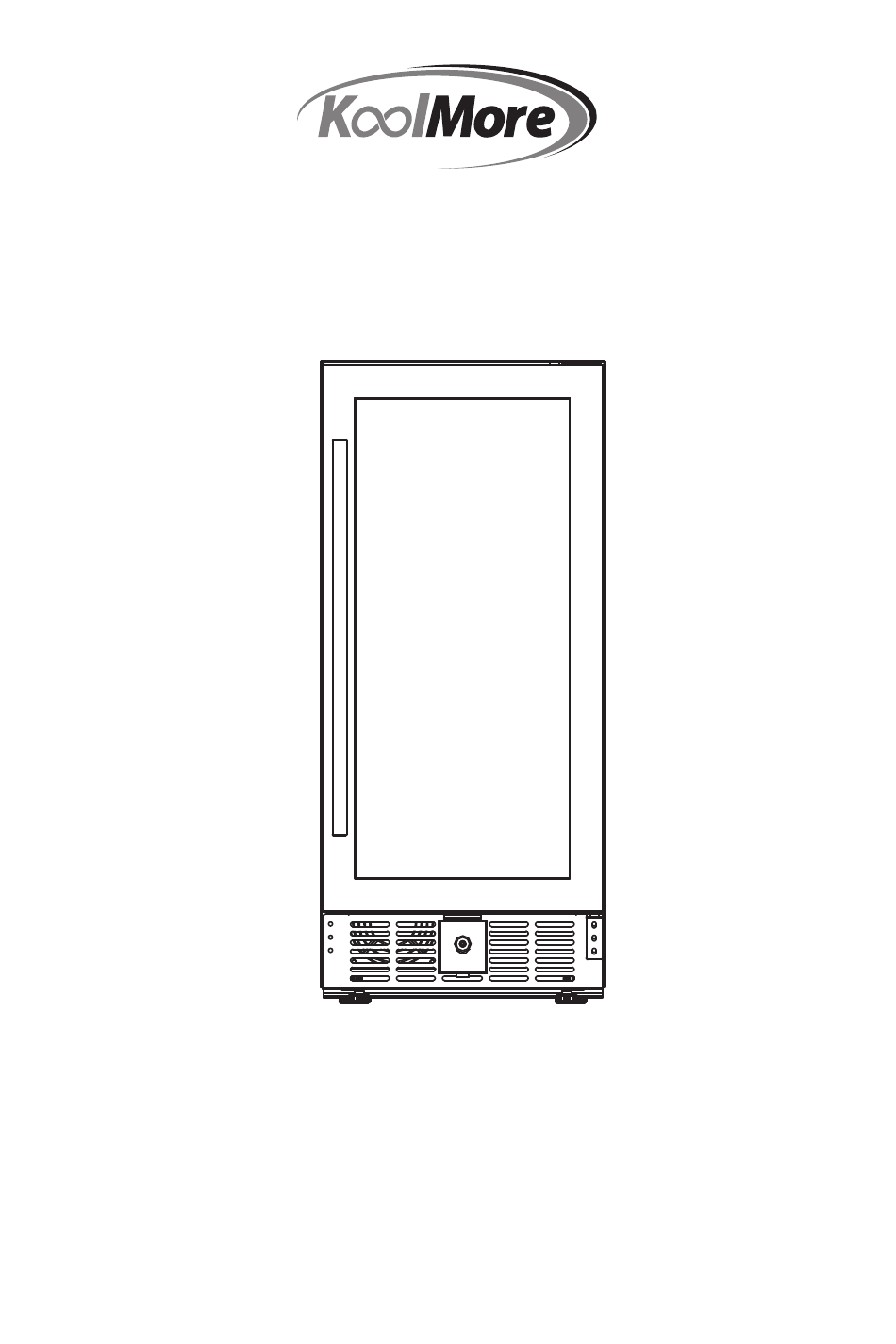

Undercounter 15"
Beverage Cooler
Instruction Manual
Model: KM-BIR3C-GD
Thank you for purchasing our product!
Before returning to retailer, if you are having trouble with your unit, for assembly
assistance, missing or damaged parts.
Please contact customer service Phone: 718-576-6342
Email: support@koolmore.com
We are here to help.
Thank you!
Advertisement
Table of Contents
Related Manuals for KoolMore Undercounter KM-BIR3C-GD
Summary of Contents for KoolMore Undercounter KM-BIR3C-GD
- Page 1 Thank you for purchasing our product! Before returning to retailer, if you are having trouble with your unit, for assembly assistance, missing or damaged parts. Please contact customer service Phone: 718-576-6342 Email: support@koolmore.com We are here to help. Thank you!
-
Page 2: Table Of Contents
TABLE OF CONTENTS Product Features..………………………………………………………………………..2 Before Use....…………………………………………………………………..2 Energy Saving Tips..……………………………………………………………….…..2 Important Safety Instructions…………………………………………………………….2 Included Parts...……………………………………………………………………..5 Specifications………………………………………………………………………………6 How To Operate Storing Wine, Bottles, or Cans................6 Starting and Running the Unit………………..…………………………..7 Button Panel Operation...…………………………..…………………………7 How To Clean……………………………………………………………………….……...7 How To Install………………………………………………………………………….…...8 Care and Maintenance……………………………………………………………..……..9 Handle Installation Guide................... -
Page 3: Product Features
PRODUCT FEATURES 1. Transparent glass door, luxurious looking, elegant design, easy operation. 2. Complete with attractive black color. 3. Low noise, high energy efficiency, updated quick cooling system. 4. Wire rack shelves, easy sanitation, storage convenience. 5. Touch-button control panel for operation. BEFORE FIRST USE Before connecting the appliance to the power supply, let the unit stand upright for 4 hours, ... - Page 4 because skin may stick to the cold surfaces. It is recommended that the refrigerator is positioned away from any combustible sources such as gas, petrol, alcohol, lacquer and banana oil, etc. The aforementioned objects should not be stored in the refrigerator under any circumstances. If the unit fails to cool properly, dispose of spoiled food as needed.
- Page 5 Safety instruction for refrigerant DANGER-Risk of Fire or Explosion. FLAMMABLE REFRIGERANT Used. Do Not Use Mechanical Device To Defrost Refrigerator. Do Not Puncture Refrigerant Tubing DANGER-Risk of Fire or Explosion. FLAMMABLE REFRIGERANT Used. To Be Repaired Only By Trained Service Personnel. Do Not Puncture Refrigerant Tubing. CAUTION –...
-
Page 6: Included Parts
ollowing the wine cooler with left-opening door. Operation Panel: ⑴ ⑵ Removable Wine ottle or Can Shelf ⑶ Hot Air utlet rame Height djustable eet ⑷ Glass Door ⑸ Door Handle ( ） ⑹ Lock... -
Page 7: Specifications
SPECIFICATIONS Product Description Wine cooler, Beverage center Model No. KM-BIR3C-GD Capacity 82 L/2.9 Cu.Ft. Electrical Rating 115V~/60Hz/0.9 A Refrigerant R600a, 0.67 Oz/19 g Unit Dimensions Width Depth Height With Feet (Inches) 22.5”(572mm) 33.8 ”(860mm) 15.0’’（380mm） Net Weight (Lbs) 64.00Lbs HOW TO OPERATE Storing Wine Bottle &... -
Page 8: Starting And Running The Unit
Starting and Running the unit Important: If the unit is brought in from outside in the winter season, give it a few hours to warm up to room temperature before plugging it in. After transportation and moving the unit, please wait for a least 4 hours before plugging in and operating the unit. -
Page 9: How To Install
inside electrical parts. Cleaners: Never use harsh, abrasive cleaners, heavy-duty cleaners, or solvents on any surface. Exterior: Wipe with damp, sudsy cloth, rinse and dry. For stubborn stains and for periodic waxing, use silicon wax. Refrigeration Section: Wash shelves and other removable parts in warm sudsy water, rinse and dry. Wash interior with baking soda solution (3 tablespoons to I liter of water) or warm sudsy water, rinse and dry. -
Page 10: Care And Maintenance
The appliance must be correctly connected to the power supply, 115V/60Hz, and grounded. The unit is not designed to be installed in an outside area such as a garage or a porch. Ambient temperatures of below 50°F or above 90°F will hinder the performance of the appliance. -
Page 11: Handle Installation Guide
HANDLE INSTALLATION GUIDE... -
Page 12: Troubleshooting Guide
TROUBLESHOOTING GUIDE WHAT TO DO … When the unit is not in use for a prolonged period: Remove the plug from the outlet. Remove all contents from the unit. Dry the interior and leave the door open for a few days. ... -
Page 13: Limited Service Warranty
Coverage Limita ons The 1 year parts and labor warranty and 5 year compressor warranty do not cover: • Failure to install and/or use equipment within proper opera ng condi ons specified by Koolmore. This includes but is not limited to residen outdoor, or mobile applica ons.
