High performance liquid-solids separation systems

Advertisement

Quick Links

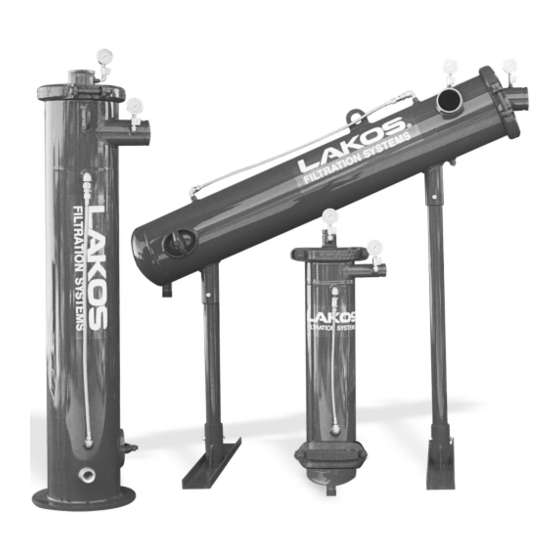

High performance liquid-solids separation systems
Exclusive internal acceleration creates maximum
performance to achieve maximum protection of
fluid handling systems from unwanted solids
(see illustration inside for details). Its advanced
& patented design, building upon the performance
LAKOS is known for, now also removes 50% more of
the finer solids (< 40 microns), resulting in higher
aggregate solids removal. Independently tested.
Proven superior for today's demanding filtration
requirements. For settlable solids only.
Trouble-free operation & advanced
purging/solids-handling concepts keep
fluids clean and concentrate separated solids
No screens or filter elements to
clean or replace; no messy servicing routines
No backwashing; zero fluid loss options
Low & steady pressure loss
Choice of profiles to
accommodate space/piping limitations
Rigid couplings for fast and easy internal access
Swirlex internal accelerating slots for
optimum solids-removal performance;
patented; optional annular transfer ring
for handling larger solids/fibrous materials
Vortube for enhanced solids
separation/collection; patented
Grooved inlet/outlet connections
for easy installation; optional
flanged connections also available
In-line inlet/outlet configuration for
simplified piping (low-profile models only)
Unishell construction for easy installation
Optional material construction & ASME code
JPX
Flow range:
4 - 12,750 U.S. gpm
3
(1 - 2895 m
/hr) per unit
Maximum standard
pressure rating:
150 psi (10.3 bar)
JPX Series includes
inlet/outlet pressure
gauges with petcock valves.
Also available with
weld-on flanges. See
page 3 for other details.
JPX
How-it-Works Illustration
Operating Instructions
Maintenance & Purging
Engineering Specifications
Liquid • Solids Separation Systems
Model Specifications
Installation &

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JPX and is the answer not in the manual?

Questions and answers

Summary of Contents for Lakos JPX

  • Page 1 (see illustration inside for details). Its advanced & patented design, building upon the performance LAKOS is known for, now also removes 50% more of the finer solids (< 40 microns), resulting in higher aggregate solids removal. Independently tested.
  • Page 2: Automatic Purging

    Drum Cart Solids Purge Systems also available with a tilt-style hopper. Performance Lakos Separators are manufactured and sold under one or more of the following U.S. Patents: 3,289,608; 3,512,651; 3,568,837; 3,701,425; 3,947,364; 3,963,073; 4,027,481; 4,120,795; 4,123,800; 4,140,638; 4,147,630; 4,148,735; 4,305,825; 4,555,333;...
  • Page 3: Specifications

    3 - 12 psi (.2 -.8 bar) Maximum particle size: JPX-0016 and smaller – .25 inch (6 mm); all other models – .375 inch (9 mm) Material (standard carbon steel): Domes – A 285C/516 GR70, .25 inch (6 mm) minimum thickness Other parts –...
  • Page 4: Maintenance/Purging

    Installation Instructions Maintenance/Purging 1. LAKOS JPX Separators must be LAKOS JPX Separators are shipped on skids or in purged regularly to remove the wooden crates. Support legs (when applicable) separated solids from the are detached for shipping. A large ring, located temporary collection chamber.
  • Page 5 2-piece; standard EPDM gasket - also available in Nitrile, Silicone, Fluoroelastomer or White Nitrile Vortube Piping provided by LAKOS Rigid Coupling Access Provides full access to collection chamber area for inspection/serving; standard Solids Purge EPDM gasket - also available in...
  • Page 6: Low Profile

    EPDM gasket - also Outlet available in Nitrile, Silicone, Fluoroelastomer, Black Neoprene or White Nitrile; model JPX-2650 and larger uses flange Lifting Ring For installation purposes Connection Spool When removed, provides space for...
  • Page 7: Vertical Profile

    EPDM gasket - also available in Nitrile, Silicone, Fluoroelastomer, Black Neoprene or White Nitrile; model JPX-2650 and larger Solids Purge uses flange Outlet Top Views Lifting Rings For installation purposes...
  • Page 8: Limited Warranty

    Programming options to include a purge frequency range of every 60 seconds to every 23 hours, 59 minutes. Purge duration options • An upper-chamber full-size grooved coupling (flange for JPX-2650 and larger), allowing complete access to the inlet chamber, range from 2 seconds to 59 minutes, 59 seconds. Non-volatile...
