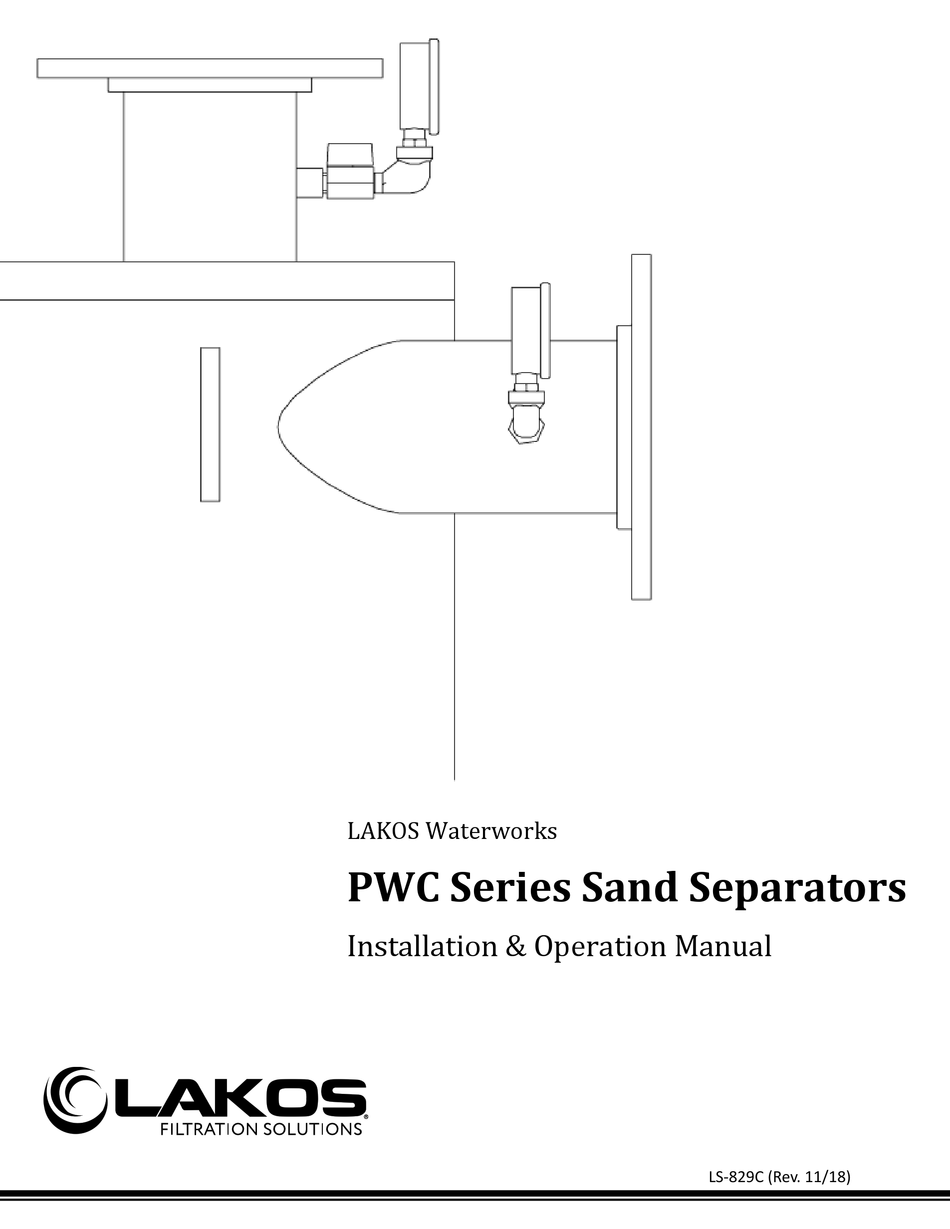

- Page 1 LAKOS Waterworks PWC Series Sand Separators Installation & Operation Manual LS-829C (Rev. 11/18) LS-829 (10/12)
-
Page 2: Table Of Contents
LAKOS Waterworks PWC Series Separators Table of Contents Separator Operation . . .……………………………………………………… 3 Individual Model Details …..………………………………………………. 4 Flow vs. Pressure Loss Chart …………………………………………………… 4 Installation Instructions ..…………………………………………………… 5 Recommended Inlet and Outlet Piping ……………………………………… 6 Purging .…….………………….……………………………………………… 6 Maintenance Recommendations ……………………………………………. -
Page 3: Separator Operation
LAKOS Waterworks PWC Series Separators Separator Operation LAKOS Separators are designed specifically to remove solids from liquids. Each model is calculated for use within a prescribed flow range for maximum performance and solids removal. Flow rates above and below the recommended range may affect such performance. -
Page 4: Individual Model Details
LAKOS Waterworks PWC Series Separators LAKOS Waterworks PWC Series Separators Separator Operation Separator Operation continued… continued… Flow range is critical for model selection. Do not use flange size. Inlet/Outlet Purge Collection Weight Weight ANSI Size Chamber Capacity Model* Flow Range**... -
Page 5: Installation Instructions
5. Proper purge hardware and/or solids-handling equipment is required to flush separated solids from the separator. 6. All LAKOS Separators operate within a prescribed flow range (pipe size is not a factor in model selection). Use appropriate hardware to match the inlet/outlet to system piping. -
Page 6: Recommended Inlet And Outlet Piping
Timer-based motorized ball valve and other techniques are available. Consult LAKOS for more details. 3. A manual valve should be installed between the purge outlet of the LAKOS Separator and any automatic purge hardware. This provides a simple means for maintaining full operation, closing the purge outlet and operating the purge manually, should the automatic valve require servicing or replacement. -
Page 7: Maintenance Recommendations
3. Pressure Gauges: The gauges installed on the inlet & outlet of the LAKOS Separator help monitor proper flow through the separator. They are NOT indicative of solids accumulation and should NOT be used to determine when to purge the separator. -
Page 8: Troubleshooting Guidelines For Separator Installations
(see page 4 for separator weight with water). The use of expansion joints is advisable with all separator installations. It is particularly recommended that these devices be employed when piping arrangements cannot comply with the configurations suggested by LAKOS product literature. - Page 9 (135-720 liters); that’s a combination of both solids and liquid. The variable takes into account the separator size, flow rate and system pressure. Allow adequate drainage or retention capacity for this volume per purge cycle. Consult LAKOS for options to further concentrate solids and recover/manage purged liquid.
- Page 10 LAKOS Waterworks PWC Series Separators Trouble-shooting Guidelines for Separator Installations continued… 9. Air Relief Ports: The appropriate air relief ports should be used at start-up to expel air from the separator. If the separator will be drained periodically or exposed to entrained air or gases from the piping system, air vents should be permanently installed.
